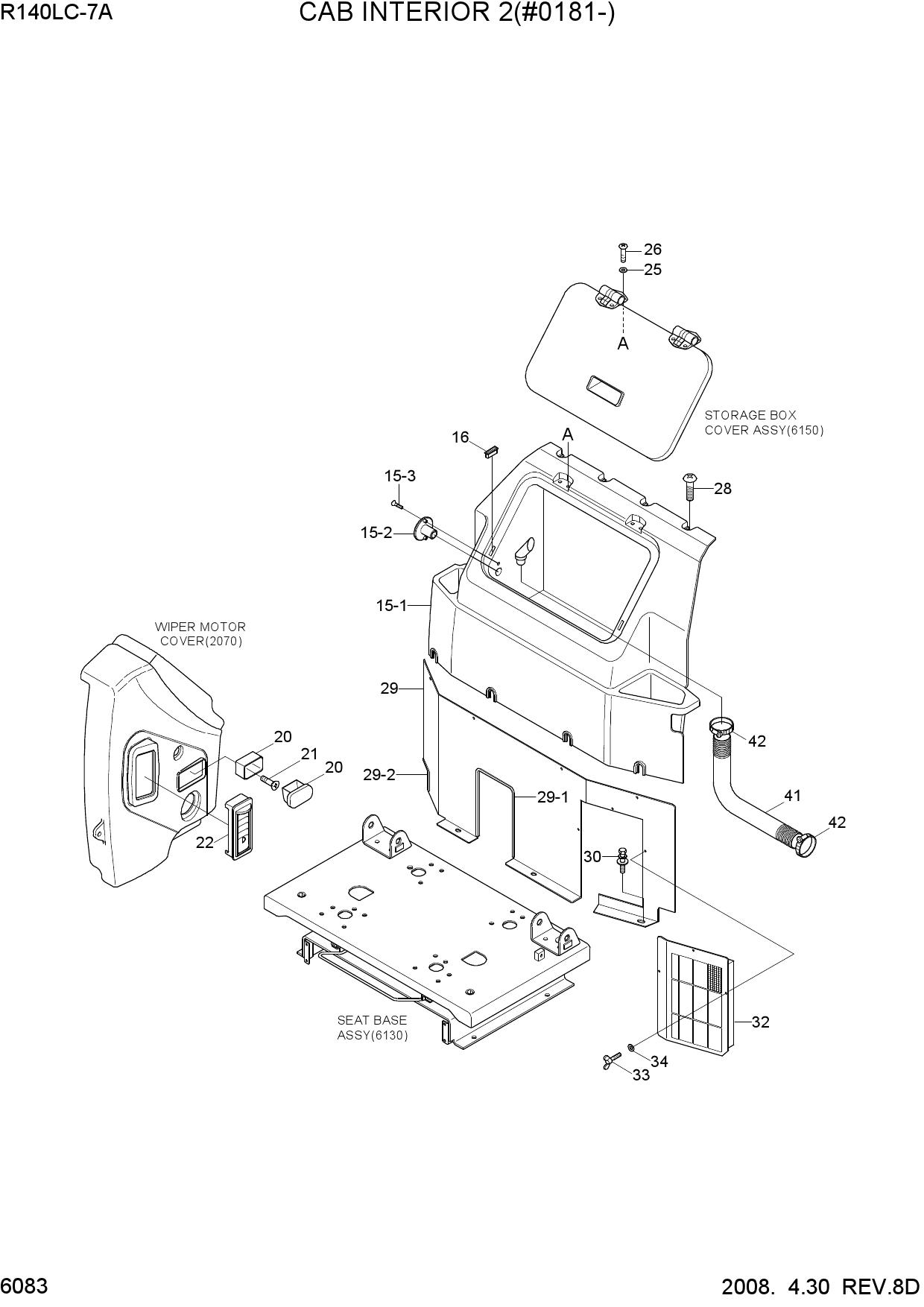

Запчасти для гусеничных экскаваторов Hyundai R140LC-7A CAB INTERIOR 2(#0181-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 15 | 73N6-21060 | AIRCON COVER ASSY | |
| 15-1 | 73N6-20080 | AIRCON COVER | |
| 15-2 | 73N6-20280 | HOSE CAP-AC | |
| 15-3 | S151-040156 | SCREW-TAPPING | |
| 16 | 71N6-20390 | MAGNETIC | |
| 20 | E171-1176 | ASHTRAY | |
| 21 | S151-040166 | SCREW-TAPPING | |
| 22 | 71N6-20380 | AIR NOZZLE | |
| 25 | S403-05200B | WASHER-PLAIN | |
| 26 | S161-050206 | SCREW-CROSS R/ROUND | |
| 28 | S002-06015B | SCREW-TRUS HEAD | |
| 29 | 73N6-21050 | AIRCON COVER LOW | |
| 29-1 | S791-020055 | GROMMET-PLATE | |
| 29-2 | S791-020012 | GROMMET-PLATE | |
| 30 | S037-102026 | BOLT-W/WASHER | |
| 32 | 11N6-91340 | FILTER-REC | |
| 33 | S091-060156 | BOLT-WING | |
| 34 | S403-06200B | WASHER-PLAIN | |
| 41 | 71N6-20360 | HOSE-STORAGE BOX | |
| 42 | 71N6-20370 | CLIP-HOSE |
