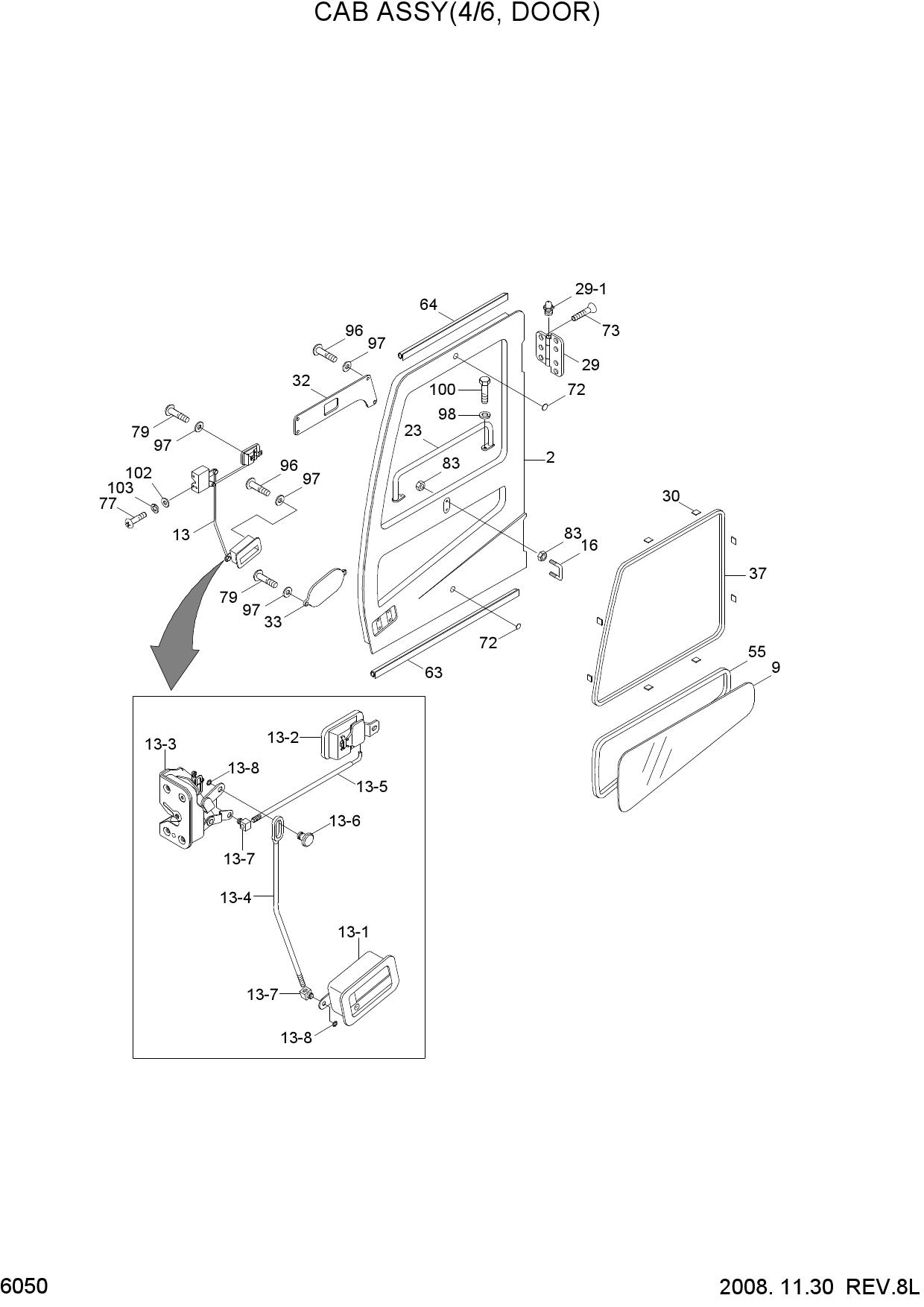

Запчасти для гусеничных экскаваторов Hyundai R140LC-7A CAB ASSY(4/6, DOOR)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| *-1 | 71N6-04000BG | SIDE DOOR ASSY | |
| 2 | 71N6-02000BG | SIDE DOOR WA | |
| 9 | 71N6-02720 | GLASS-DOOR | |
| 13 | 71N6-02761 | HANDLE ASSY | |
| 13-1 | 71N6-03390 | HANDLE | |
| 13-2 | 71N6-03400 | HANDLE-INNER | |
| 13-3 | 71N6-03410 | LATCH | |
| 13-4 | 71N6-03420 | ROD ASSY-1 | |
| 13-5 | 71N6-03430 | ROD ASSY-2 | |
| 13-6 | 71N6-03440 | PIN-1 | |
| 13-7 | 71N6-03450 | PIN | |
| 13-8 | P560-050006 | E-RING | |
| 16 | 71N6-03650 | STRIKER | |
| 23 | 71N6-02850 | HANDLE | |
| 29 | 71N6-02910 | HINGE | |
| 29 | 71N6-02910BG | HINGE | |
| 29-1 | S651-060006 | NIPPLE-GREASE | |
| 29-1 | S651-060002 | NIPPLE-GREASE | |
| 30 | 71EH-10430 | RUBBER | |
| 32 | 71N6-02930 | COVER | |
| 33 | 71N6-02940 | COVER | |
| 37 | 71N6-03000 | WEATHER STRIP | |
| 55 | 71N6-03020 | WEATHER STRIP | |
| 63 | 71N6-03230 | SEAL | |
| 64 | 71N6-03240 | SEAL | |
| 72 | 17E1-5146 | BUMPER-DOOR | |
| 73 | 71EH-10400 | SCREW | |
| 77 | S161-060166 | SCREW-CROSS R/ROUND | |
| 79 | S161-050206 | SCREW-CROSS R/ROUND | |
| 83 | S203-101006 | NUT-HEX | |
| 96 | S161-050166 | SCREW-CROSS R/ROUND | |
| 97 | S411-050006 | WASHER-SPRING | |
| 98 | S411-100006 | WASHER-SPRING | |
| 100 | S017-100206 | BOLT-HEX | |
| 102 | S403-062006 | WASHER-PLAIN | |
| 103 | S411-060006 | WASHER-SPRING |
