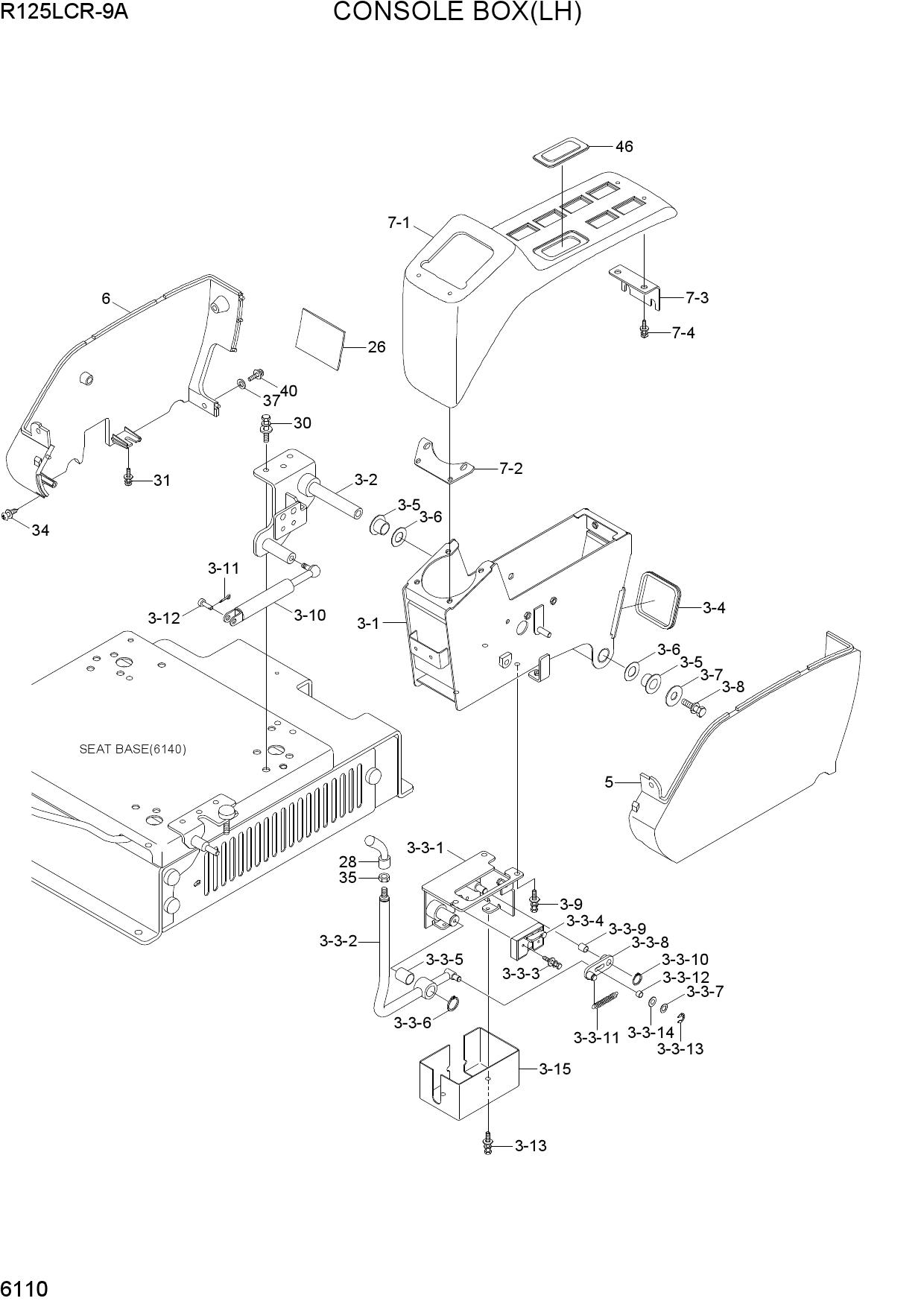

Запчасти для гусеничных экскаваторов Hyundai R125LCR-9A CONSOLE BOX (LH)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 3 | 75Q4-23670 | CONSOLE FRAME ASSY-LH | |
| 3-1 | 75Q4-20180 | CONSOLE FRAME WA-LH | |
| 3-2 | 72M9-23720 | BRACKET WA-CONSOLE, RR | |
| 3-3 | 75Q4-20360 | TILT ASSY | |
| 3-3-1 | 75Q4-21170 | BRACKET WA-TILT | |
| 3-3-2 | 75Q4-20370 | LEVER WA-SAFETY | |
| 3-3-3 | S035-062026 | BOLT-W/WASHER | |
| 3-3-4 | 71M8-20570 | LATCH-TILT | |
| 3-3-5 | S731-020025 | BUSHING-DU | |
| 3-3-6 | S601-020004 | RING-RETAINING | |
| 3-3-7 | S403-08200B | WASHER-PLAIN | |
| 3-3-8 | 71M8-20651 | LINK-SAFETY LEVER | |
| 3-3-9 | S731-010012 | BUSHING-DU | |
| 3-3-10 | S601-010002 | RING-RETAINING | |
| 3-3-11 | 71N6-21610 | SPRING | |
| 3-3-12 | 71M8-21420 | ROLLER | |
| 3-3-13 | P560-040002 | RING-E/SNAP | |
| 3-3-14 | 71M8-21430 | SHIM | |
| 3-4 | 71Q6-21420 | GROMMET | |
| 3-5 | S731-020020 | BUSHING-DU | |
| 3-6 | 71Q6-22630 | SHIM-CONSOLE | |
| 3-7 | 71Q6-23700 | SHIM(2.0T)-ROUND | |
| 3-8 | S037-102016 | BOLT-W/WASHER | |
| 3-9 | S035-081526 | BOLT-W/WASHER | |
| 3-10 | 71Q4-20050 | SPRING-GAS | |
| 3-11 | S461-160252 | PIN-SPLIT | |
| 3-12 | S491-080252 | PIN-CLEVIS | |
| 3-13 | S035-061526 | BOLT-W/WASHER | |
| 3-15 | 75Q4-20380 | COVER | |
| 5 | 71M9-21011 | CONSOLE LOW-LH | |
| 6 | 71M9-21021 | CONSOLE LOW-RH | |
| 7 | 75Q4-21060 | CONSOLE UP ASSY-LH | |
| 7-1 | 75Q4-20050 | CONSOLE BOX UP-LH | |
| 7-2 | 75Q4-22470 | BRACKET | |
| 7-3 | 75Q4-21160 | BRACKET | |
| 7-4 | S002-06010B | SCREW-TRUS HEAD | |
| 26 | 71Q6-22670 | PROTECTOR | |
| 28 | 71M8-20750 | KNOB-SAFETY LEVER | |
| 30 | S035-082526 | BOLT-W/WASHER | |
| 31 | S002-06015B | SCREW-TRUS HEAD | |
| 34 | S151-040156 | SCREW-TAPPING | |
| 35 | S205-08100B | NUT-HEX | |
| 37 | S403-06500B | WASHER-PLAIN | |
| 40 | S002-06010B | SCREW-TRUS HEAD | |
| 46 | 75Q4-22600 | CAP-DOZER LEVER |
