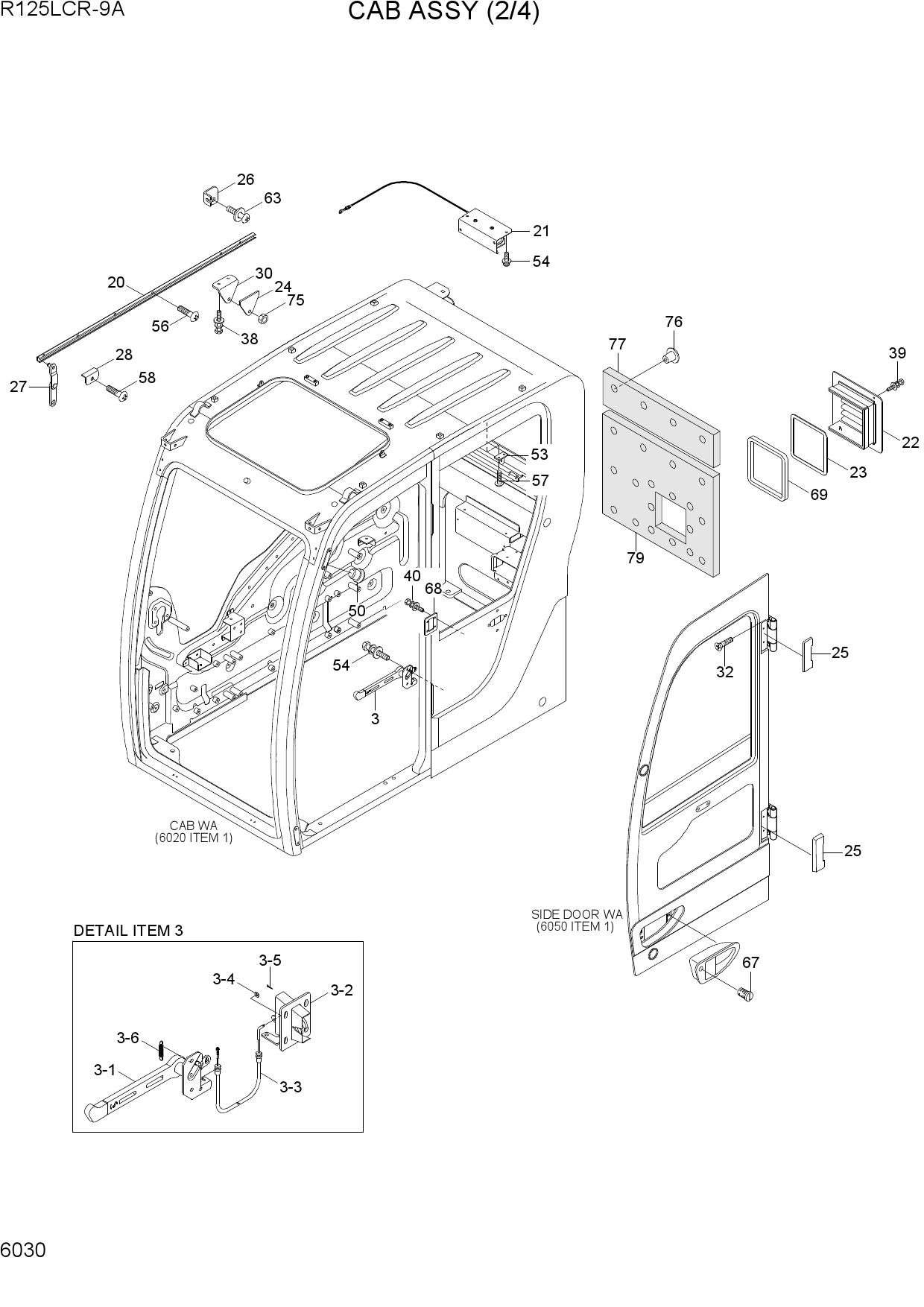

Запчасти для гусеничных экскаваторов Hyundai R125LCR-9A CAB ASSY (2/4)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 3 | 71Q6-02350 | LATCH ASSY-BACK | |
| 3-1 | 71Q6-02640 | LEVER | |
| 3-2 | 71Q6-03721 | CATCH-BACK | |
| 3-3 | 71Q6-03730 | WIRE ASSY | |
| 3-4 | S32-050001 | WASHER | |
| 3-5 | S501-080002 | PIN-SELF LOCKING | |
| 3-6 | MH601030 | SPRING | |
| 20 | 71Q6-01451 | RAIL | |
| 21 | 72Q6-03320 | CABLE ASSY-ASSIST | |
| 22 | 75Q4-03020 | COVER WA-REAR | |
| 23 | 75Q4-03090 | PAD | |
| 24 | 71Q6-03491 | STRIKER | |
| 25 | 71Q6-03661 | COVER-HINGE/UPPER | |
| 26 | 71Q6-03671 | BRACKET | |
| 27 | 71Q6-04530 | LINK WA | |
| 28 | 71Q6-04611 | STOPPER | |
| 30 | 71Q6-04960 | PLATE | |
| 32 | 71EH-10400 | SCREW | |
| 38 | S035-062026 | BOLT-W/WASHER | |
| 39 | S035-081626 | BOLT-W/WASHER | |
| 40 | S035-082026 | BOLT-W/WASHER | |
| 50 | 71Q6-03030 | CUSHION-RUBBER | |
| 53 | 71Q6-03680 | HOOK | |
| 54 | S035-061526 | BOLT-W/WASHER | |
| 56 | S141-040106 | SCREW-FLAT HD | |
| 57 | S161-050106 | SCREW-CROSS R/ROUND | |
| 58 | S161-080206 | SCREW-CROSS R/ROUND | |
| 63 | S132-061026 | SCREW-W/WASHER | |
| 67 | 71Q6-02050 | ROTOR | |
| 68 | 75Q4-00660 | BRACKET | |
| 69 | 75Q4-03080 | SPONGE | |
| 75 | S275-10000B | NUT-SELF LOCKING | |
| 76 | 71EM-51580 | CAP-STUD BOLT | |
| 77 | 75Q6-03090 | SPONGE | |
| 79 | 75Q6-03080 | SPONGE |
