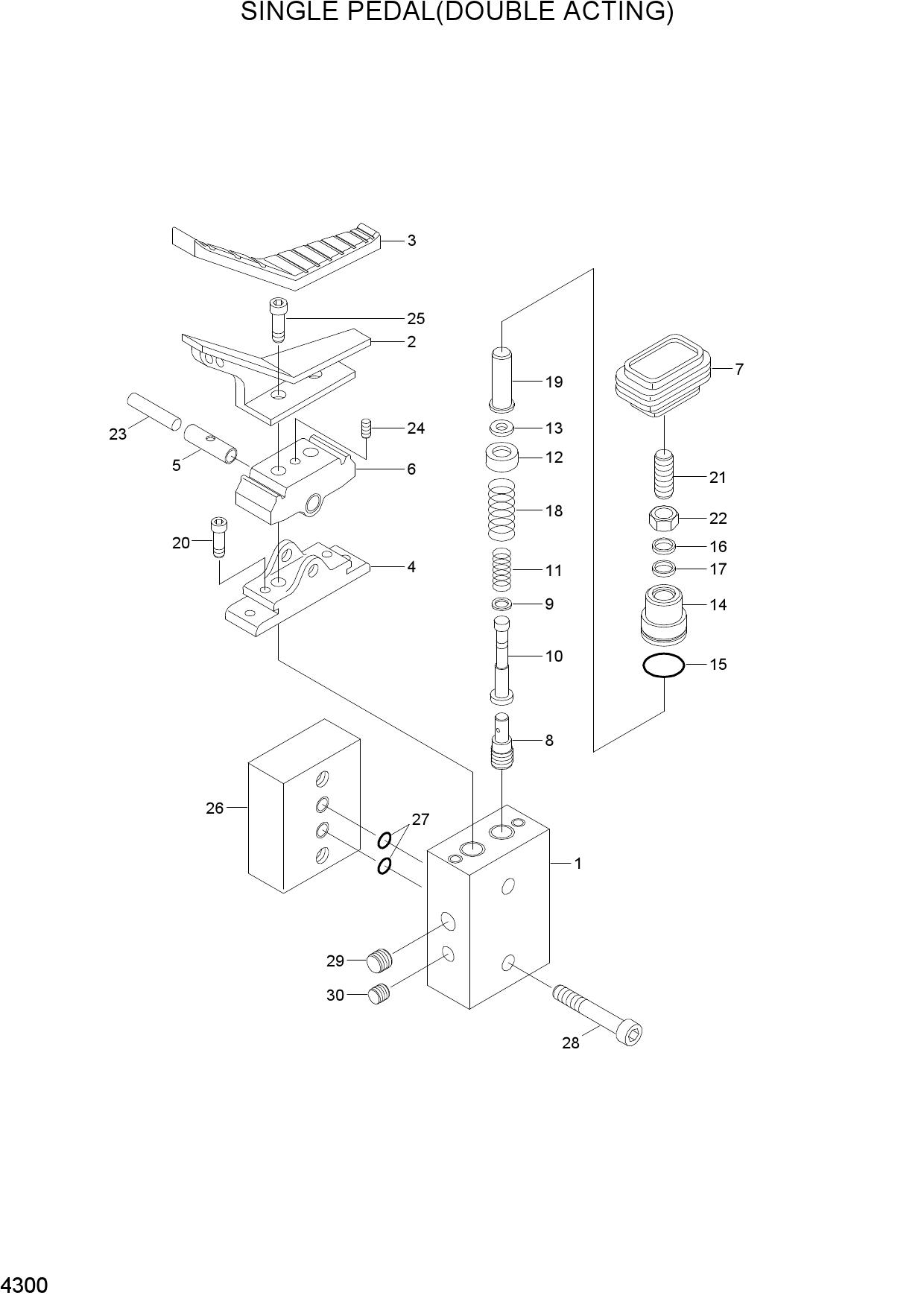

Запчасти для гусеничных экскаваторов Hyundai R110-7A SINGLE PEDAL(DOUBLE ACTING)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 34E7-04720 | PEDAL-SINGLE | |
| 1 | J24D2001 | CASE | |
| 2 | J24D2002 | PEDAL | |
| 3 | J24D2003 | COVER-PEDAL | |
| 4 | J24D2004 | COVER | |
| 5 | DU1010 | BUSHING | |
| 6 | J24D2005 | CAM | |
| 7 | J24D2006 | BELLOWS | |
| 8 | J24D2007 | SPOOL | |
| 9 | S090601 | SHIM(1.0T) | |
| 10 | J24D2008 | SEAT-SPRING | |
| 11 | J97C1001 | SPRING | |
| 12 | J24D2010 | SEAT-SPRING | |
| 13 | J24D2011 | STOPPER | |
| 14 | J24D2012 | PLUG | |
| 15 | PO020 | O-RING | |
| 16 | DSP10 | SEAL-DUST | |
| 17 | RSY10 | SEAL-ROD | |
| 18 | J98H2001 | SPRING | |
| 19 | J24D2014 | ROD-PUSH | |
| 20 | WBM0830 | BOLT-SOCKET | |
| 21 | J24D2015 | SCREW-SET | |
| 22 | HNM10 | NUT-HEX | |
| 23 | J24D2016 | SHAFT-CAM | |
| 24 | SBM0812 | SCREW-SET | |
| 25 | WBM1015 | BOLT-SOCKET | |
| 26 | J2J1002 | BLOCK | |
| 27 | PO012 | O-RING | |
| 28 | WBM0840 | BOLT-SOCKET | |
| 29 | WPT38 | PLUG | |
| 30 | WPT18 | PLUG |
