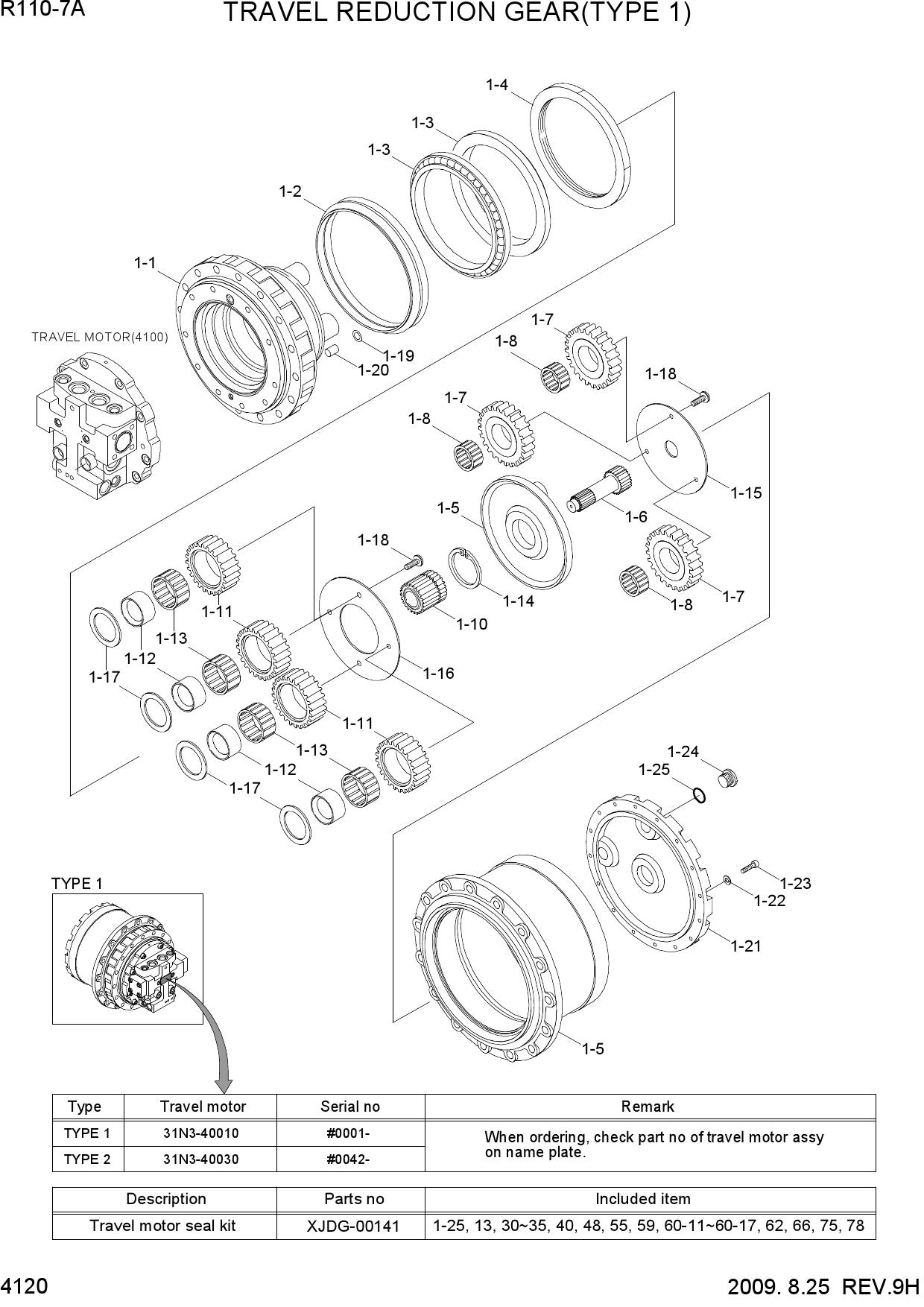

Запчасти для гусеничных экскаваторов Hyundai R110-7A TRAVEL REDUCTION GEAR(TYPE 1)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| *-1 | XJDG-00001 | TRAVEL GEAR ASSY | |
| 1-1 | XJDG-00002 | BODY-CASING | |
| 1-2 | XJDG-00004 | SEAL-FLOATING | |
| 1-3 | XJDG-00005 | BEARING-ANGULAR | |
| 1-4 | XJDG-00006 | NUT-RING | |
| 1-5 | XJDG-00007 | GEAR-CASING | |
| 1-6 | XJDG-00008 | GEAR-SUN A | |
| 1-7 | XJDG-00009 | GEAR-PLANETARY A | |
| 1-8 | XJDG-00010 | BEARING-NEEDLE A | |
| 1-9 | XJDG-00011 | CARRIER | |
| 1-10 | XJDG-00012 | GEAR-SUN B | |
| 1-11 | XJDG-00013 | GEAR-PLANETARY B | |
| 1-12 | XJDG-00014 | BUSHING | |
| 1-13 | XJDG-00015 | BEARING-NEEDLE B | |
| 1-14 | XJDG-00016 | RING-SNAP | |
| 1-15 | XJDG-00017 | PLATE-THRUST (2) | |
| 1-16 | XJDG-00018 | PLATE-THRUST (3) | |
| 1-17 | XJDG-00019 | PLATE-THRUST (4) | |
| 1-18 | XJDG-00020 | SCREW | |
| 1-19 | XJDG-00021 | WASHER | |
| 1-20 | XJDG-00022 | PIN-PARALLEL | |
| 1-21 | XJDG-00023 | COVER | |
| 1-22 | XJDG-00024 | WASHER-SPRING | |
| 1-23 | XJDG-00025 | BOLT | |
| 1-24 | XJDG-00027 | PLUG | |
| K1-25 | XJDG-00028 | O-RING | |
| K | XJDG-00141 | SEAL KIT |
