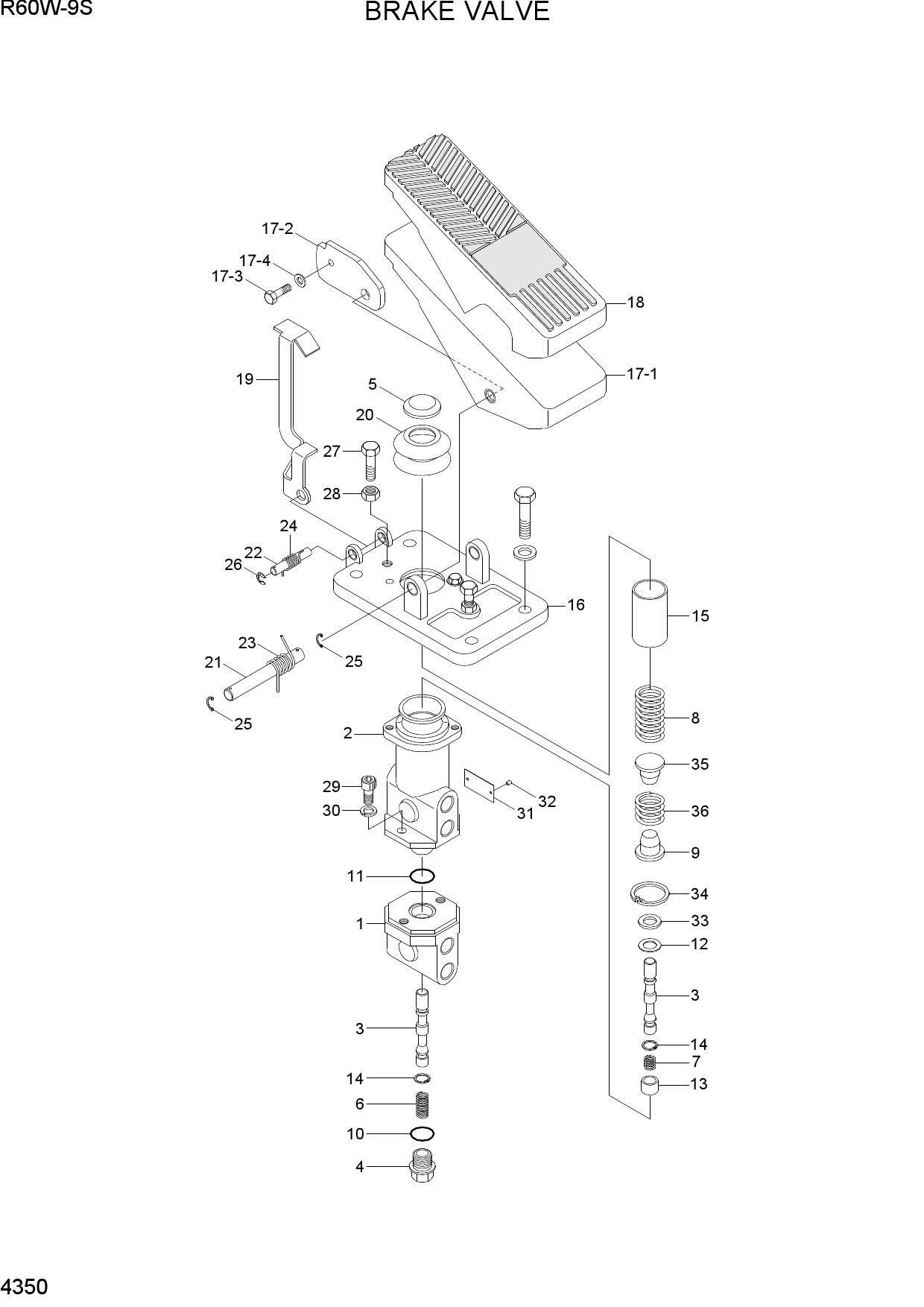

Запчасти для колесных экскаваторов Hyundai R60W-9S BRAKE VALVE
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 31EE-30112 | BRAKE VALVE ASSY | |
| * | 31EE-30210 | BRAKE VALVE ASSY | |
| 1 | YUBS-00124 | BODY-LOWER | |
| 2 | XKAK-00002 | BODY-UPPER | |
| 3 | XKAK-00021 | SPOOL | |
| 4 | XKAK-00004 | PLUG | |
| 5 | XKAK-00077 | HOLDER | |
| 6 | XKAK-00006 | SPRING-LOWER | |
| 7 | XKAK-00007 | SPRING-UPPER | |
| 8 | XKAK-00075 | SPRING 1-MAIN | |
| 9 | XKAK-00009 | RETAINER-SPRING | |
| 13 | XKAK-00010 | GUIDE | |
| 14 | XKAK-00059 | RING-SNAP | |
| 16 | XKAK-00079 | PLATE-PEDAL | |
| 17 | XKAK-00012 | PEDAL ASSY | |
| 17-1 | XKAK-00013 | PEDAL | |
| 17-2 | XKAK-00076 | PLATE-LOCK | |
| 18 | XKAK-00015 | COVER-PEDAL | |
| 19 | XKAK-00025 | LATCH | |
| 20 | XKAK-00048 | COVER-RUBBER | |
| 21 | XKAK-00017 | PIN 1-LOCK | |
| 22 | XKAK-00026 | PIN 2-LOCK | |
| 23 | XKAK-00018 | SPRING 1 | |
| 24 | XKAK-00082 | SPRING 2 | |
| 31 | XKAK-00051 | NAME PLATE | |
| 35 | XKAK-00019 | RETAINER 2-SPRING | |
| 36 | XKAK-00032 | SPRING 1-MAIN | |
| 36 | XKAK-00073 | SPRING 2-MAIN |
