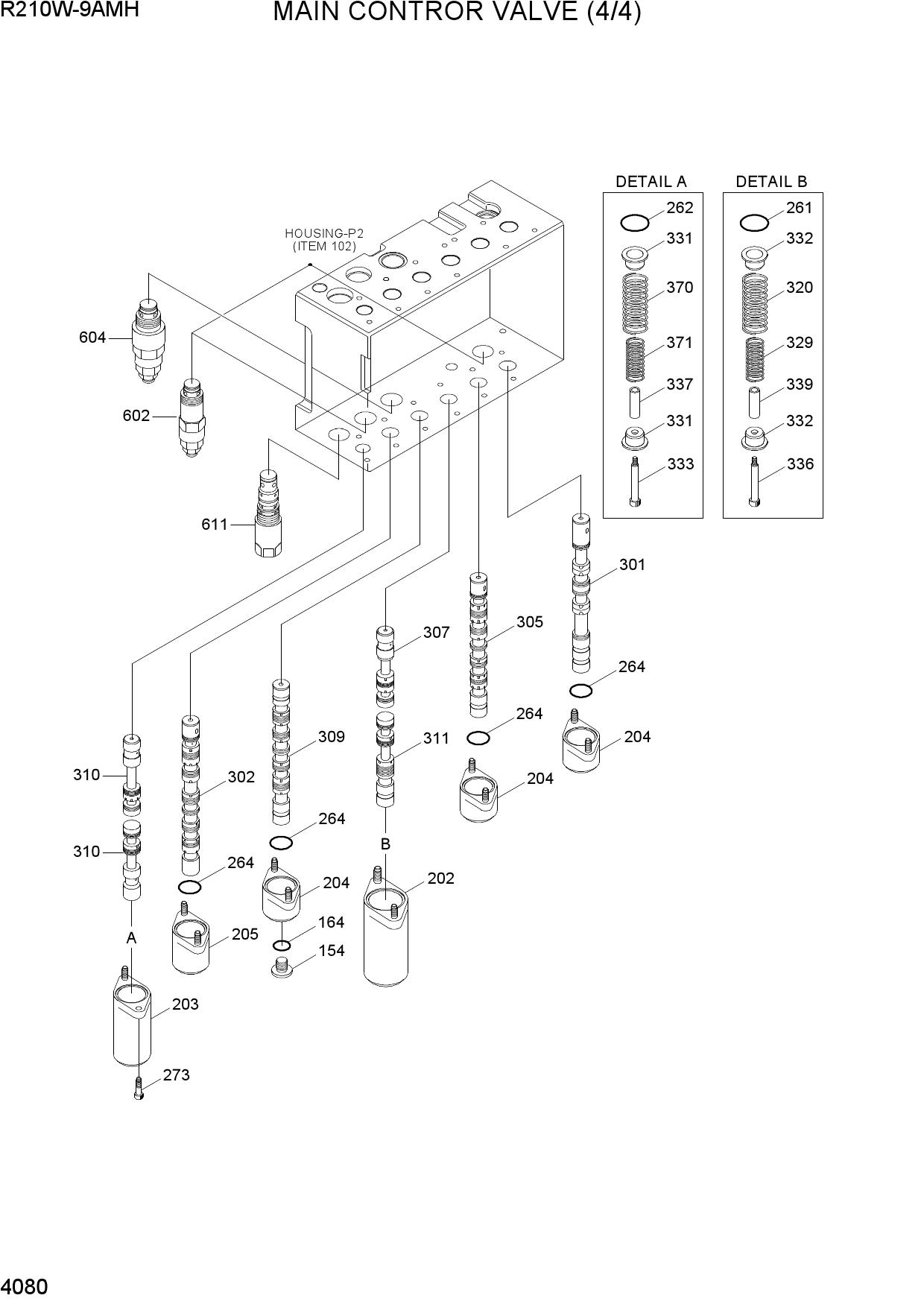

Запчасти для колесных экскаваторов Hyundai R210W9AMH MAIN CONTROL VALVE (4/4)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 154 | XJBN-00814 | PLUG | |
| 164 | XJBN-01357 | O-RING | |
| 202 | XJBN-01225 | COVER-SPRING | |
| 203 | XJBN-01226 | COVER-SPRING | |
| 204 | XJBN-00257 | COVER | |
| 205 | XJBN-01049 | COVER | |
| 261 | XJBN-01234 | O-RING | |
| 262 | XJBN-00212 | O-RING | |
| 264 | XJBN-00342 | O-RING | |
| 273 | XJBN-00210 | SCREW-SOCKET | |
| K301 | XJBN-01557 | SPOOL-TRAVEL | |
| NK302 | XJBN-01637 | SPOOL-ARM 1 | |
| NK305 | XJBN-01505 | SPOOL-SWING | |
| NK307 | XJBN-01495 | SPOOL-BOOM 2 | |
| K309 | XJBN-01244 | SPOOL-OPTION | |
| K310 | XJBN-01245 | SPOOL-BYPASS CUT | |
| K311 | XJBN-01246 | SPOOL-SWING PRIORITY | |
| K320 | XJBN-00185 | SPRING | |
| K329 | XJBN-00182 | SPRING | |
| K331 | XJBN-00195 | SEAT | |
| K332 | XJBN-00194 | SEAT | |
| K333 | XJBN-01248 | BOLT-SPACER | |
| K336 | XJBN-00190 | BOLT | |
| K337 | XJBN-01249 | STOPPER | |
| K339 | XJBN-00187 | STOPPER | |
| K370 | XJBN-01250 | SPRING | |
| K371 | XJBN-01251 | SPRING | |
| 602 | XJBN-01506 | PORT RELIEF VALVE | |
| 604 | XJBN-01262 | PORT RELIEF VALVE | |
| 611 | XJBN-01611 | POSI-NEGA CONTROL VLV |
