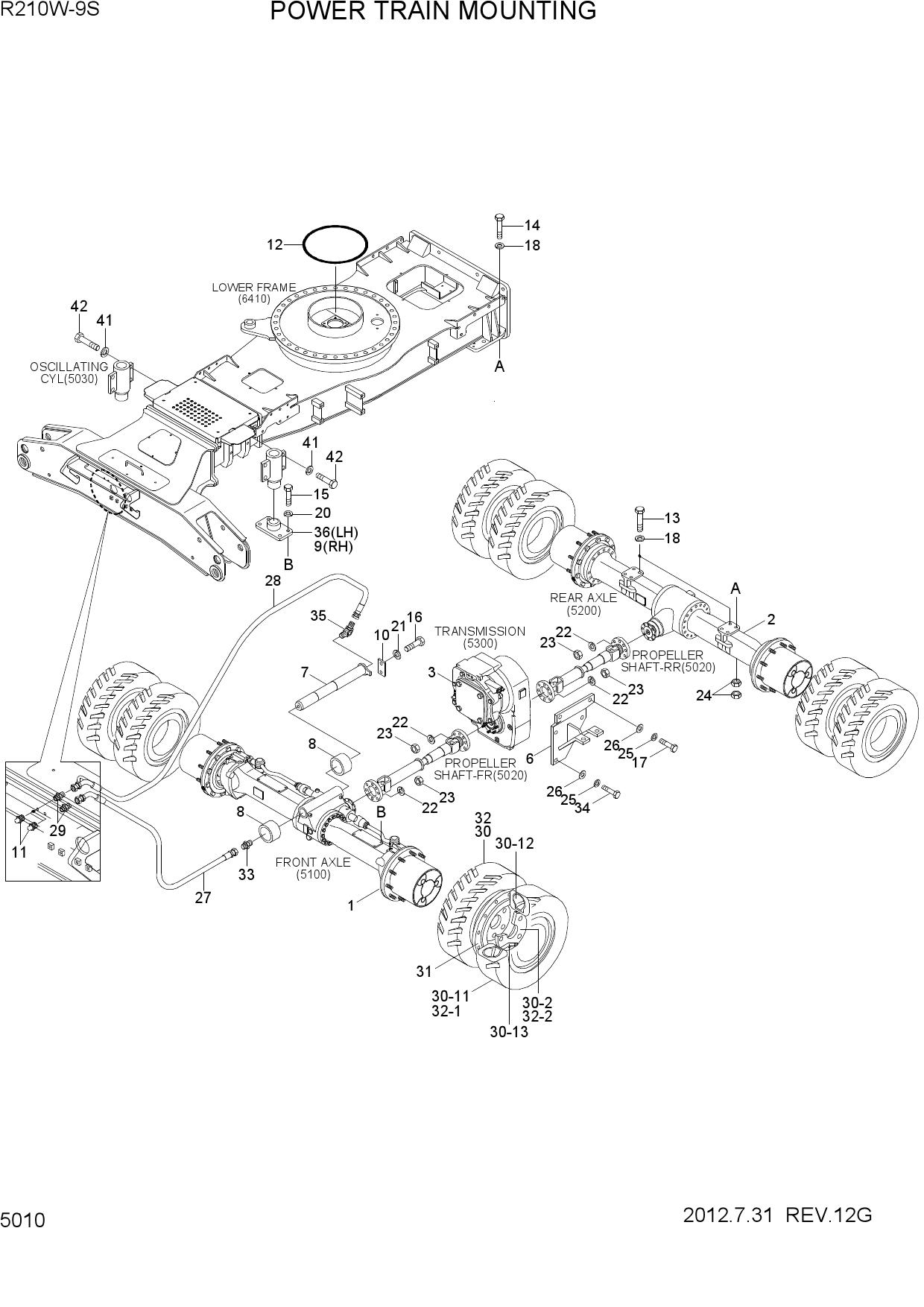

Запчасти для колесных экскаваторов Hyundai R210W-9S POWER TRAIN MOUNTING
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 81Q6-40010 | AXLE-FRONT | |
| 1 | 81Q6-40011 | AXLE-FRONT | |
| 2 | 81Q6-40020 | AXLE-REAR | |
| 2 | 81Q6-40021 | AXLE-REAR | |
| 3 | 81Q6-40030 | TRANSMISSION | |
| 3 | 81Q6-40031 | TRANSMISSION | |
| 6 | 81Q6-40100 | BRACKET WA-T/M | |
| 7 | 81Q6-41050 | PIN-PIVOT | |
| 8 | 81E4-0004 | BUSHING | |
| 9 | 81N6-40151GG | SUPPORT-OSCIL CYL | |
| 9 | 81Q6-41200 | SUPPORT-OSCIL CYL RH | |
| 10 | 51E3-3164GG | PLATE-LOCK | |
| 11 | S652-810002 | NIPPLE-GREASE | |
| 12 | E181-3001 | SEAL-GREASE | |
| 13 | S018-24200D | BOLT-HEX | |
| 14 | S017-24260D | BOLT-HEX | |
| 15 | S017-16040D | BOLT-HEX | |
| 16 | S017-120256 | BOLT-HEX | |
| 17 | S017-20045D | BOLT-HEX | |
| 18 | S441-240006 | WASHER-HARDENED | |
| 20 | S411-160006 | WASHER-SPRING | |
| 21 | S411-120006 | WASHER-SPRING | |
| 22 | S411-100006 | WASHER-SPRING | |
| 23 | 81E4-3007-DA | NUT-HEX | |
| 24 | S205-24100B | NUT-HEX | |
| 25 | S411-200006 | WASHER-SPRING | |
| 26 | S441-200006 | WASHER-HARDENED | |
| 27 | P840-042016 | HOSE ASSY-SYN THD | |
| 27 | P850-042017 | HOSE ASSY-SYN 0X45 | |
| 28 | P860-042034 | HOSE ASSY-SYN 0X90 | |
| 28 | P850-042034 | HOSE ASSY-SYN 0X45 | |
| 29 | 31QA-50200 | CONNECTOR | |
| 30 | 81N5-50100GG | TIRE & WHEEL ASSY | |
| 30-1 | 81E4-20200 | TIRE ASSY | |
| N30-1 | 81E4-20200H | TIRE ASSY | |
| N30-1 | 81E4-20200S | TIRE ASSY | |
| 30-11 | 81E4-2001 | TIRE | |
| 30-12 | 81E4-2002 | TIRE | |
| 30-13 | 81E4-2003 | FLAP | |
| 30-2 | 81N5-50010GG | WHEEL WA | |
| 31 | 81N5-50061 | RING-STONE REGISTER | |
| 32 | 81N5-50200GG | TIRE & WHEEL ASSY | |
| 32 | 81N5-50201GG | TIRE & WHEEL ASSY | |
| 32-1 | 81E4-21020 | TIRE | |
| 32-2 | 81N5-50010GG | WHEEL WA | |
| 33 | P010-430011 | CONNECTOR | |
| 33 | P010-430011 | CONNECTOR | |
| 34 | S017-20050D | BOLT-HEX | |
| 35 | E231-0207 | ELBOW-45 | |
| 36 | 81Q6-41100 | SUPPORT-OSCIL CYL LH | |
| 41 | S441-220006 | WASHER-HARDENED | |
| 42 | S018-22075D | BOLT-HEX |
