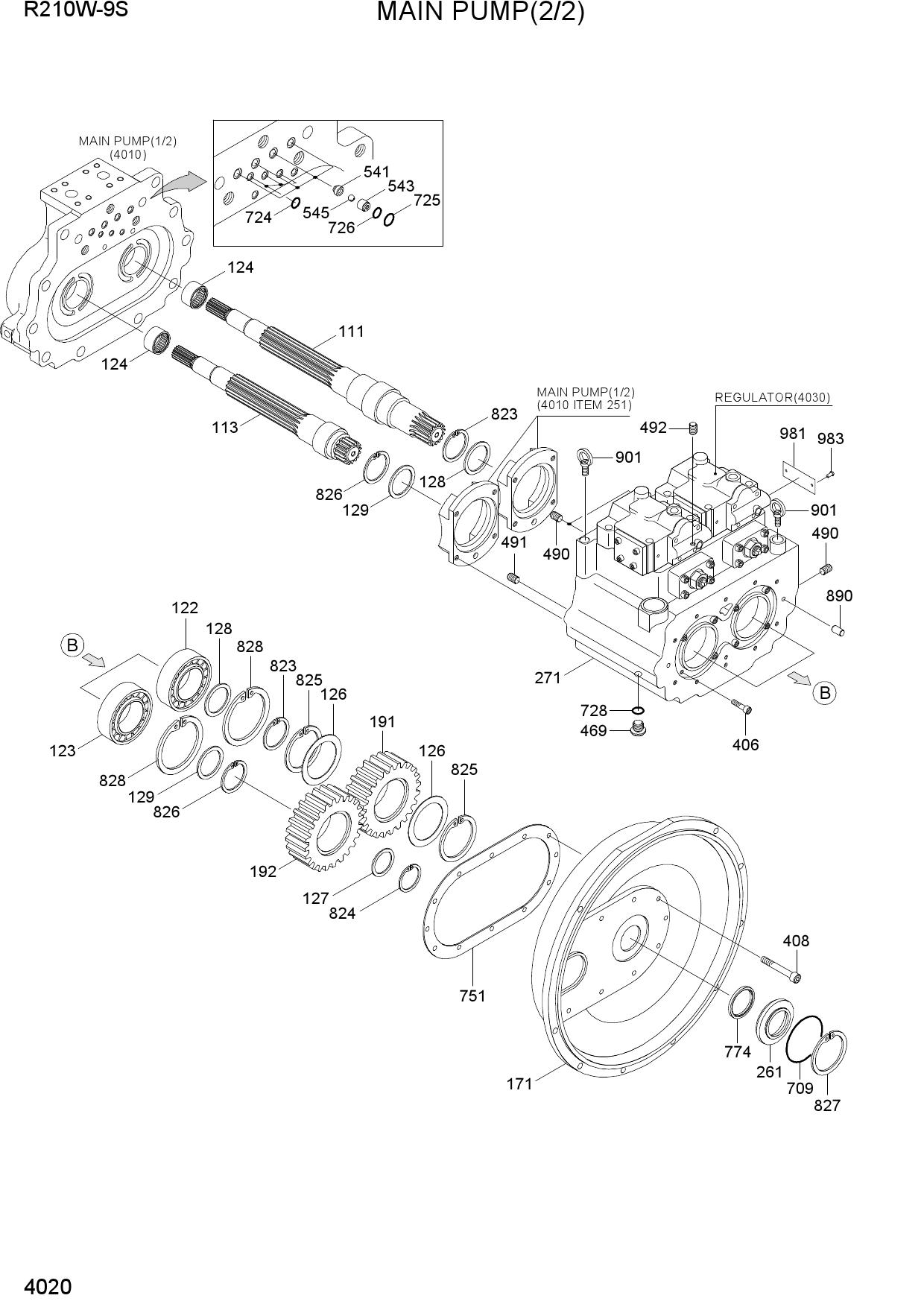

Запчасти для колесных экскаваторов Hyundai R210W-9S MAIN PUMP(2/2)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 111 | XJBN-01754 | SHAFT-DRIVE | |
| 113 | XJBN-00789 | SHAFT-DRIVEN | |
| 122 | XJBN-00788 | BEARING-ROLLER | |
| 123 | XJBN-00787 | BEARING-ROLLER | |
| 124 | XJBN-00786 | BEARING-NEEDLE | |
| 126 | XJBN-00785 | SPACER-BEARING | |
| 127 | XJBN-00081 | SPACER-BEARING | |
| 128 | XJBN-00784 | SPACER-BEARING | |
| 129 | XJBN-00569 | SPACER-BEARING | |
| 171 | XJBN-01757 | CASING-FRONT | |
| 191 | XJBN-00782 | GEAR-DRIVE | |
| 192 | XJBN-00781 | GEAR-DRIVEN | |
| 261 | XJBN-01756 | COVER-FRONT | |
| 271 | XJBN-01755 | CASING-PUMP | |
| 406 | XJBN-00355 | SCREW | |
| 408 | XJBN-00695 | SCREW-HEX | |
| 469 | XJBN-00238 | PLUG | |
| 490 | XJBN-00032 | PLUG | |
| 491 | XJBN-00234 | PLUG | |
| 492 | XJBN-00772 | RESTRICTOR | |
| N541 | XJBN-00859 | SEAT | |
| N543 | XJBN-00860 | STOPPER | |
| N545 | XJBN-00038 | BALL-STEEL | |
| 709 | XJBN-00387 | O-RING | |
| 724 | XJBN-00044 | O-RING | |
| 725 | XJBN-00045 | O-RING | |
| 726 | XJBN-00231 | O-RING | |
| 728 | XJBN-00046 | O-RING | |
| 751 | XJBN-00764 | PACKING | |
| 774 | XJBN-01758 | SEAL-OIL | |
| 823 | XJBN-00759 | RING-SNAP | |
| 824 | XJBN-00102 | RING-SNAP | |
| 825 | XJBN-00508 | RING-SNAP | |
| 826 | XJBN-00052 | RING-SNAP | |
| 827 | XJBN-00489 | RING-SNAP | |
| 828 | XJBN-00130 | RING-SNAP | |
| 890 | XJBN-01759 | PIN | |
| 901 | XJBN-00393 | BOLT-EYE | |
| 981 | XJBN-00156 | NAME PLATE | |
| 983 | XJBN-00341 | PIN |
