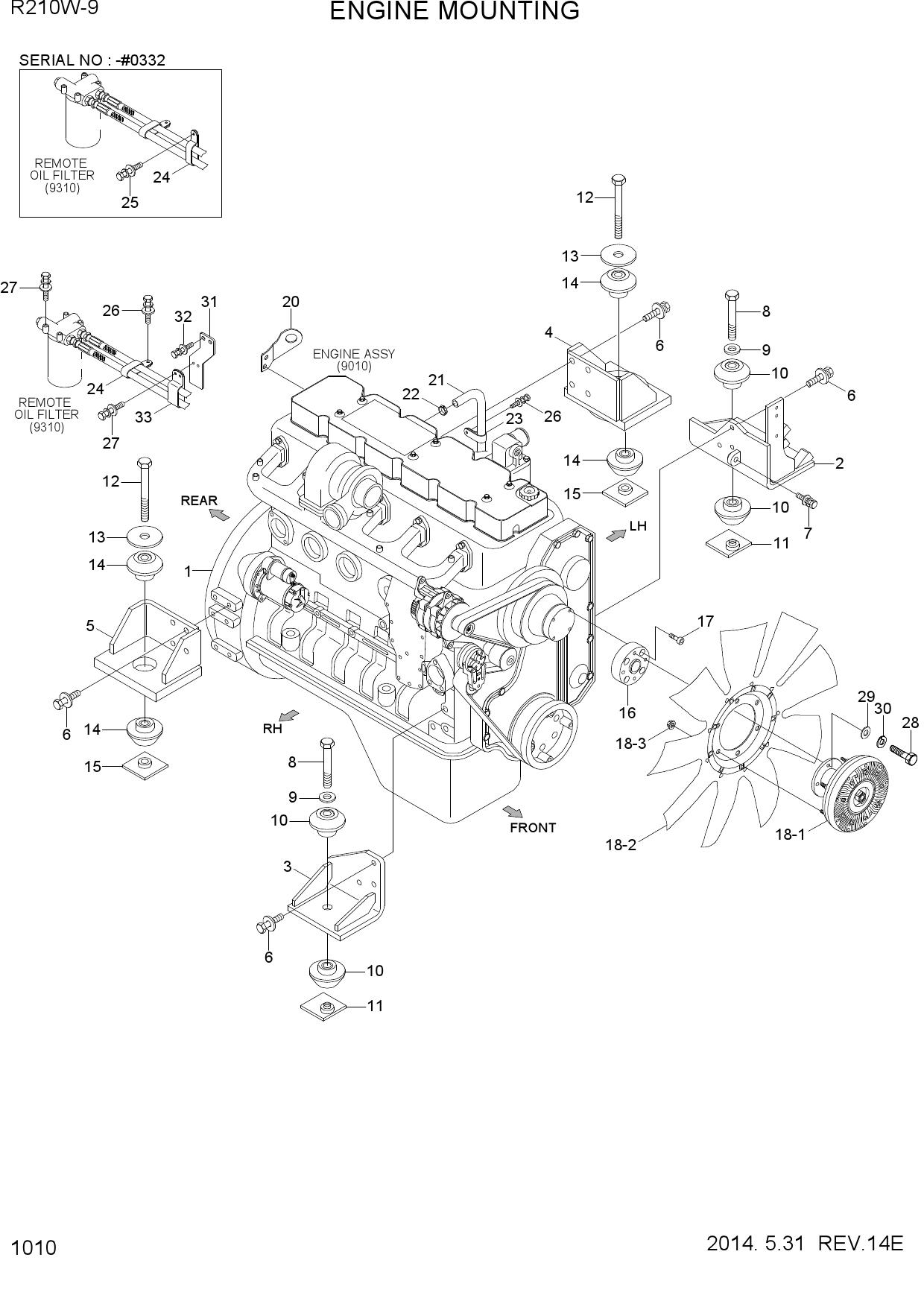

Запчасти для колесных экскаваторов Hyundai R210W-9 ENGINE MOUNTING
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 11Q6-00010 | ENGINE ASSY | |
| 1 | 13Q6-00031 | ENGINE ASSY | |
| 2 | 11Q6-00221 | BRACKET-ENG & COMP | |
| 3 | 11Q6-00020 | BRACKET-FRONT | |
| 4 | 11N8-07101 | BRACKET WA-ENG MTG | |
| 5 | 11N8-07111 | BRACKET WA-ENG MTG | |
| 6 | S037-123556 | BOLT-W/WASHER | |
| 7 | S037-124026 | BOLT-W/WASHER | |
| 8 | S017-20135D | BOLT-HEX | |
| 9 | S441-200006 | WASHER-HARDENED | |
| 10 | 11N6-10445 | RUBBER-MOUNT | |
| 11 | 11N6-00150 | NUT-STOPPER | |
| 12 | S017-24190D | BOLT-HEX | |
| 13 | S441-240006 | WASHER-HARDENED | |
| 14 | 11N6-13050 | RUBBER-MOUNT | |
| 15 | 11N8-07200 | NUT-STOPPER | |
| 16 | 11Q6-00160 | SPACER | |
| 17 | S109-100356 | BOLT-SOCKET | |
| 18 | 11Q6-00290 | FAN CLUTCH ASSY | |
| 18 | 11Q6-00301 | FAN CLUTCH ASSY | |
| 18 | 11Q6-00302 | FAN CLUTCH ASSY | |
| 18-1 | 11Q6-00250 | CLUTCH-FAN | |
| 18-1 | 11Q6-00260 | CLUTCH-FAN | |
| 18-2 | 11Q6-01250 | FAN-COOLING | |
| 18-2 | 11Q6-01260 | FAN-COOLING | |
| 18-3 | S285-081006 | NUT-FLANGED | |
| 20 | 11N6-00030 | BRACKET | |
| 21 | 11Q6-04010 | HOSE-BREATHER | |
| 21 | 11Q6-00690 | O-RING | |
| 22 | S520-027000 | CLAMP-HOSE | |
| 23 | 31L7-10210 | CLAMP-TUBE INS | |
| 24 | 31L7-10260 | CLAMP-TUBE | |
| 24 | 31L7-10250 | CLAMP-TUBE,INS SINGLE | |
| 25 | S037-122526 | BOLT-W/WASHER | |
| 26 | S035-081556 | BOLT-W/WASHER | |
| 26 | S035-081556 | BOLT-W/WASHER | |
| 27 | S035-082526 | BOLT-W/WASHER | |
| 27 | S035-082526 | BOLT-W/WASHER | |
| 28 | S027-100306 | BOLT-MINI HEX | |
| 29 | S403-10000B | WASHER-PLAIN | |
| 30 | S411-100006 | WASHER-SPRING | |
| 31 | 11Q8-00090 | BRACKET | |
| 32 | S037-102526 | BOLT-W/WASHER | |
| 33 | 11Q8-00060 | CLAMP | |
| 34 | S035-083026 | BOLT-W/WASHER | |
| 35 | S037-122526 | BOLT-W/WASHER | |
| 36 | 11Q6-00581 | BRACKET-IMPACTOR | |
| 37 | 11Q6-00530 | FILTER-CCV | |
| 38 | 11Q6-00660 | CONNECTOR | |
| 39 | 11Q6-00800 | BRACKET | |
| 40 | S035-082056 | BOLT-W/WASHER | |
| 41 | 31L7-10210 | CLAMP-TUBE INS | |
| 42 | S520-020000 | CLAMP-HOSE | |
| 43 | S520-032000 | CLAMP-HOSE | |
| 44 | 11Q6-00590 | HOSE | |
| 45 | 11Q6-00610 | HOSE-BREATHER | |
| 46 | 11Q6-00620 | HOSE-BREATHER |
