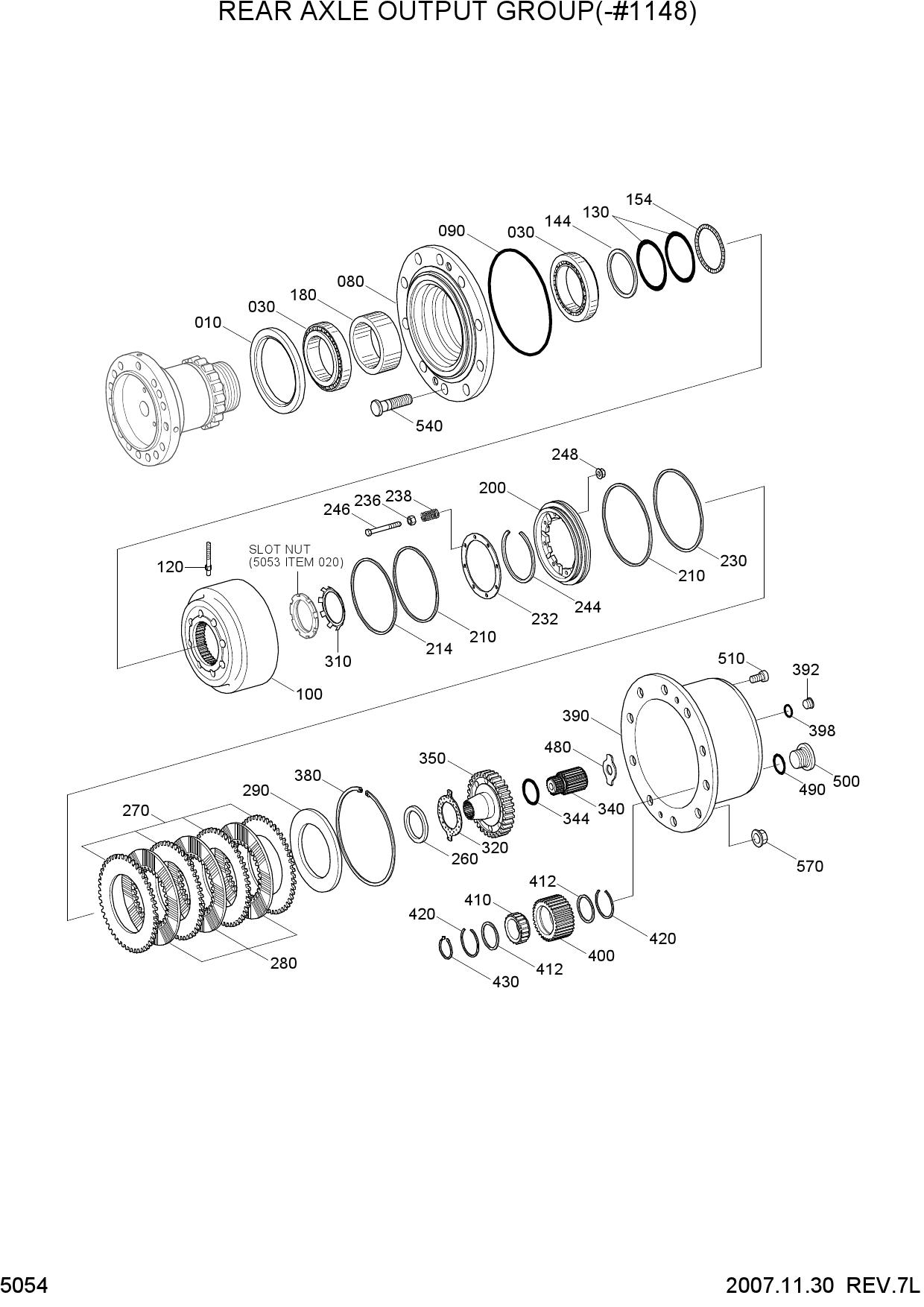

Запчасти для колесных экскаваторов Hyundai R200W-7 REAR AXLE OUTPUT GROUP(-#1148)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 010 | ZGAQ-01266 | SEAL-SHAFT | |
| 030 | ZGAQ-01267 | BEARING-ROLLER | |
| 080 | ZGAQ-01268 | HUB | |
| 090 | ZGAQ-01269 | O-RING | |
| 100 | ZGAQ-01270 | GEAR-RING | |
| 120 | ZGAQ-01271 | PLUG | |
| 130 | ZGAQ-01272 | O-RING | |
| 144 | ZGAQ-01273 | RING-SUPPORT | |
| 154 | ZGAQ-01274 | RING-SUPPORT | |
| 180 | ZGAQ-01275 | BUSHING(26.8) | |
| 180 | ZGAQ-01276 | BUSHING(26.23) | |
| 180 | ZGAQ-01277 | BUSHING(26.26) | |
| 180 | ZGAQ-01278 | BUSHING(26.29) | |
| 180 | ZGAQ-01279 | BUSHING(26.32) | |
| 180 | ZGAQ-01280 | BUSHING(26.35) | |
| 180 | ZGAQ-01281 | BUSHING(26.38) | |
| 180 | ZGAQ-01282 | BUSHING(26.41) | |
| 180 | ZGAQ-01283 | BUSHING(26.44) | |
| 180 | ZGAQ-01284 | BUSHING(26.47) | |
| 180 | ZGAQ-01285 | BUSHING(26.50) | |
| 200 | ZGAQ-01286 | PISTON | |
| 210 | ZGAQ-01287 | U-RING | |
| 214 | ZGAQ-01288 | RING-SUPPORT | |
| 230 | ZGAQ-01289 | RING-SUPPORT | |
| 232 | ZGAQ-01290 | SHIM-SUPPORT | |
| 236 | ZGAQ-01291 | SLEEVE-SPRING | |
| 238 | ZGAQ-01292 | SPRING-COMPRESSURE | |
| 244 | ZGAQ-01293 | RING-SNAP | |
| 246 | ZGAQ-01294 | SCREW-HEX | |
| 248 | ZGAQ-01295 | NUT-LOCKING | |
| 260 | ZGAQ-01363 | SEAL-SHAFT | |
| 270 | ZGAQ-01296 | DISC-O/CLUTCH(2.5) | |
| 270 | ZGAQ-01297 | DISC-O/CLUTCH(3.0) | |
| 270 | ZGAQ-01298 | DISC-O/CLUTCH(2.0) | |
| 280 | ZGAQ-01299 | DISC-I/CLUTCH | |
| 290 | ZGAQ-01300 | SHIM-END(9.5) | |
| 310 | ZGAQ-01301 | WASHER-TAB | |
| 320 | ZGAQ-01302 | WASHER-THRUST | |
| 340 | ZGAQ-01364 | SHAFT-SUN GEAR | |
| 344 | ZGAQ-01365 | O-RING | |
| 350 | ZGAQ-01303 | CARRIER-DISC | |
| 380 | ZGAQ-01304 | RING-RETAINING | |
| 390 | ZGAQ-01305 | CARRIER-PLANET | |
| 392 | ZGAQ-00098 | PLUG-SCREW | |
| 398 | ZGAQ-00099 | O-RING | |
| 400 | ZGAQ-01306 | GEAR-PLANET | |
| 410 | ZGAQ-01307 | BEARING-ROLLER | |
| 412 | ZGAQ-01308 | WASHER | |
| 420 | ZGAQ-01309 | RING-SNAP | |
| 430 | ZGAQ-01310 | RING-RETAINING | |
| 480 | ZGAQ-01311 | WASHER-THRUST(1.5) | |
| 480 | ZGAQ-01312 | WASHER-THRUST(1.7) | |
| 480 | ZGAQ-01313 | WASHER-THRUST(2.0) | |
| 480 | ZGAQ-01314 | WASHER-THRUST(2.2) | |
| 480 | ZGAQ-01315 | WASHER-THRUST(2.5) | |
| 480 | ZGAQ-01316 | WASHER-THRUST(2.7) | |
| 480 | ZGAQ-01317 | WASHER-THRUST(3.0) | |
| 490 | ZGAQ-01212 | O-RING | |
| 500 | ZGAQ-00081 | PLUG-SCREW | |
| 510 | ZGAQ-01322 | SCREW-CAP | |
| 540 | ZGAQ-01323 | BOLT-WHEEL | |
| 570 | ZGAQ-00161 | NUT-WHEEL |
