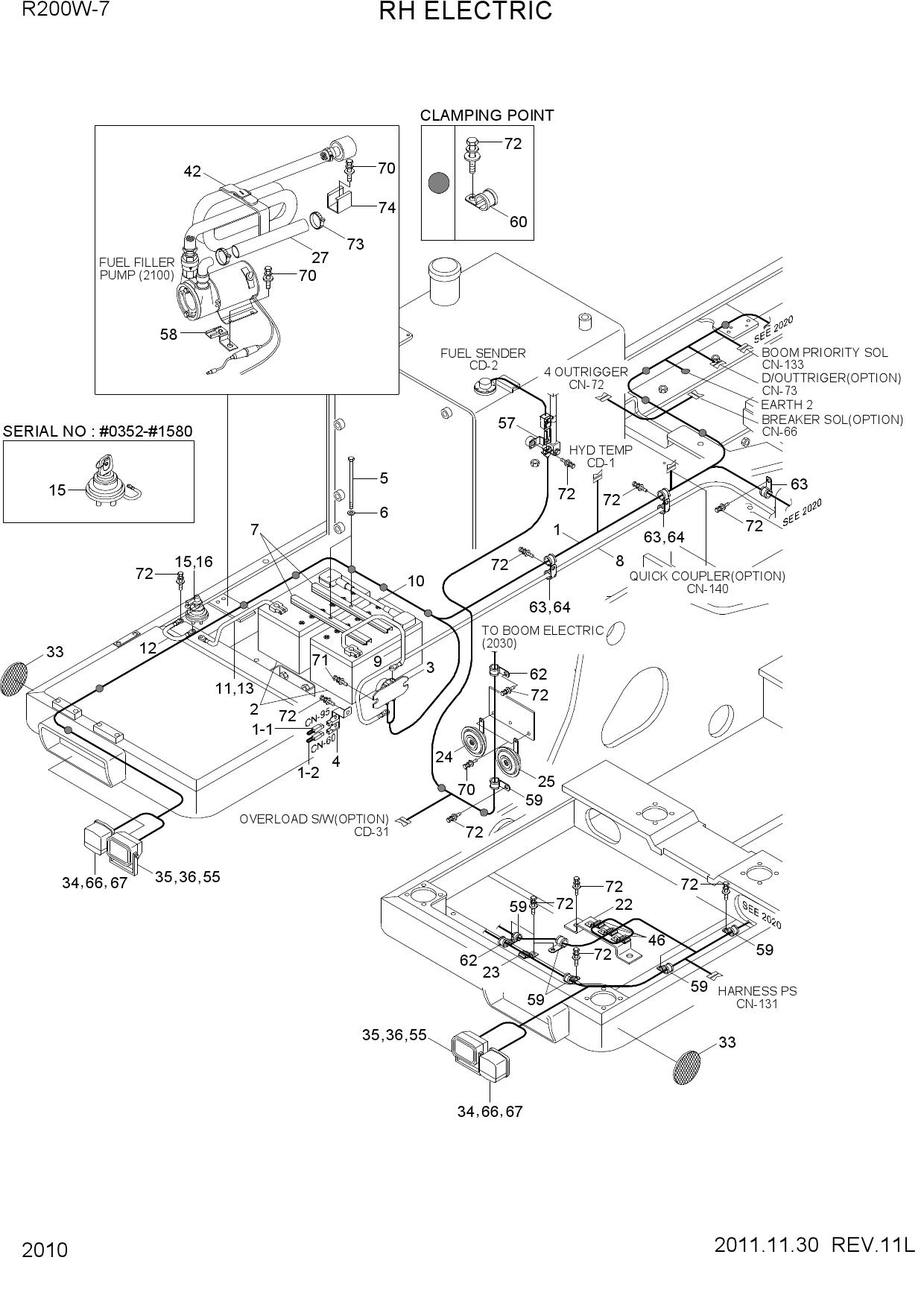

Запчасти для колесных экскаваторов Hyundai R200W-7 RH ELECTRIC
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 21N6-24011 | HARNESS-FRAME | |
| 1 | 21N6-24012 | HARNESS-FRAME | |
| 1 | 21N6-24013 | HARNESS-FRAME | |
| 1 | 21N6-24014 | HARNESS-FRAME | |
| 1 | 21N6-24015 | HARNESS-FRAME | |
| 1 | 21N6-24016 | HARNESS-FRAME | |
| 1 | 21N6-24017 | HARNESS-FRAME | |
| 1 | 21N6-24018 | HARNESS-FRAME | |
| 1 | 21N6-24019 | HARNESS-FRAME | |
| 1 | 21N6-24020 | HARNESS-FRAME | |
| 1 | 21N6-24021 | HARNESS-FRAME | |
| 1 | 21N6-24022 | HARNESS-FRAME | |
| 1 | 21N6-24023 | HARNESS-FRAME | |
| 1 | 21N6-24024 | HARNESS-FRAME | |
| 1-1 | 21N4-01311 | LINK-FUSIBLE(30A) | |
| 1-2 | 21N4-01320 | LINK-FUSIBLE(60A) | |
| 1-3 | 21EA-50550 | DIODE | |
| 2 | 21E6-20270 | BATTERY | |
| 3 | 21E5-0003 | RELAY-BATTERY | |
| 3 | 21QA-70010 | RELAY-BATTERY | |
| 4 | 21N4-01140 | PLATE-CLIP | |
| 5 | S017-102502 | BOLT-HEX | |
| 6 | S403-102002 | WASHER-PLAIN | |
| 7 | 25D1-10150 | BAR-BATTERY | |
| 8 | 21N6-21200 | CABLE(BATT RY-STARTER) | |
| 8 | 21N6-21210 | CABLE(RELAY-STARTER) | |
| 9 | 21EA-60490 | CABLE(BATT-BATT RY) | |
| 10 | 21N4-01400 | CABLE(BATT-BATT) | |
| 11 | 21L7-20430 | CABLE(BATT-SW&EARTH) | |
| 12 | 21NA-10600 | STRAP-EARTH | |
| 13 | 24L3-01120 | CABLE(BATT-EARTH) | |
| 15 | 21L7-10500 | SWITCH-MASTER | |
| 15 | 21N4-10441 | SWITCH-MASTER | |
| 15 | 21L7-10500 | SWITCH-MASTER | |
| 15-1 | 21N4-10441K | KEY-MASTER SWITCH | |
| 16 | 21EN-00420 | DECAL-MASTER SW | |
| 16 | 21N4-10450 | DECAL-MASTER SW | |
| 16 | 21N4-10451 | DECAL-MASTER SWITCH | |
| 16 | 21LD-34180 | DECAL-MASTER SWITCH | |
| 22 | 21N4-01100 | PLATE-STEERING | |
| 23 | 21N4-01130 | PLATE-CLIP | |
| 24 | 21N5-10050 | HORN-LOW | |
| 24 | 21N5-10051 | HORN-LOW | |
| 25 | 21N5-10060 | HORN-HIGH | |
| 25 | 21N5-10061 | HORN-HIGH | |
| 27 | 21N4-20550 | HOSE-OUTLET | |
| 33 | 21EK-10150 | REFLECTOR-SIDE | |
| 34 | 21EK-10350 | LAMP-FLASHER POSITION | |
| 34 | 21EK-10351 | LAMP-FLASHER POSITION | |
| 35 | 21EK-10120 | LAMP-HEAD | |
| 36 | 21EK-10130 | BULB-H4, 70/75W | |
| 36 | 21EK-10131 | BULB | |
| 42 | E127-3158 | BAND-FUEL PUMP | |
| 46 | 21N4-01111 | CLIP-ECONO SEAL | |
| 53 | 21N4-11090 | HARNESS-STOP LAMP | |
| 53 | 21N4-11091 | HARNESS-STOP LAMP | |
| 53 | 21N4-12011 | HARNESS-EXT,STOPLAMP | |
| 55 | S161-040356 | SCREW-CROSS R/ROUND | |
| 57 | 25D1-10640 | CLIP ASSY | |
| 58 | 25D1-10650 | CLIP ASSY | |
| 59 | 21E9-00170 | CLIP-HARNESS | |
| 60 | S593-000902 | CLIP-HARNESS | |
| 61 | S543-120002 | CLAMP-TUBE | |
| 62 | S543-160002 | CLAMP-TUBE | |
| 63 | S543-240002 | CLAMP-TUBE | |
| 64 | S543-280002 | CLAMP-TUBE | |
| 66 | S411-040006 | WASHER-SPRING | |
| 67 | S161-040166 | SCREW-CROSS R/ROUND | |
| 70 | S035-082026 | BOLT-W/WASHER | |
| 71 | S035-083026 | BOLT-W/WASHER | |
| 72 | S037-102026 | BOLT-W/WASHER | |
| 73 | S520-032000 | CLAMP-HOSE | |
| 74 | 21N4-00770 | CLIP |
