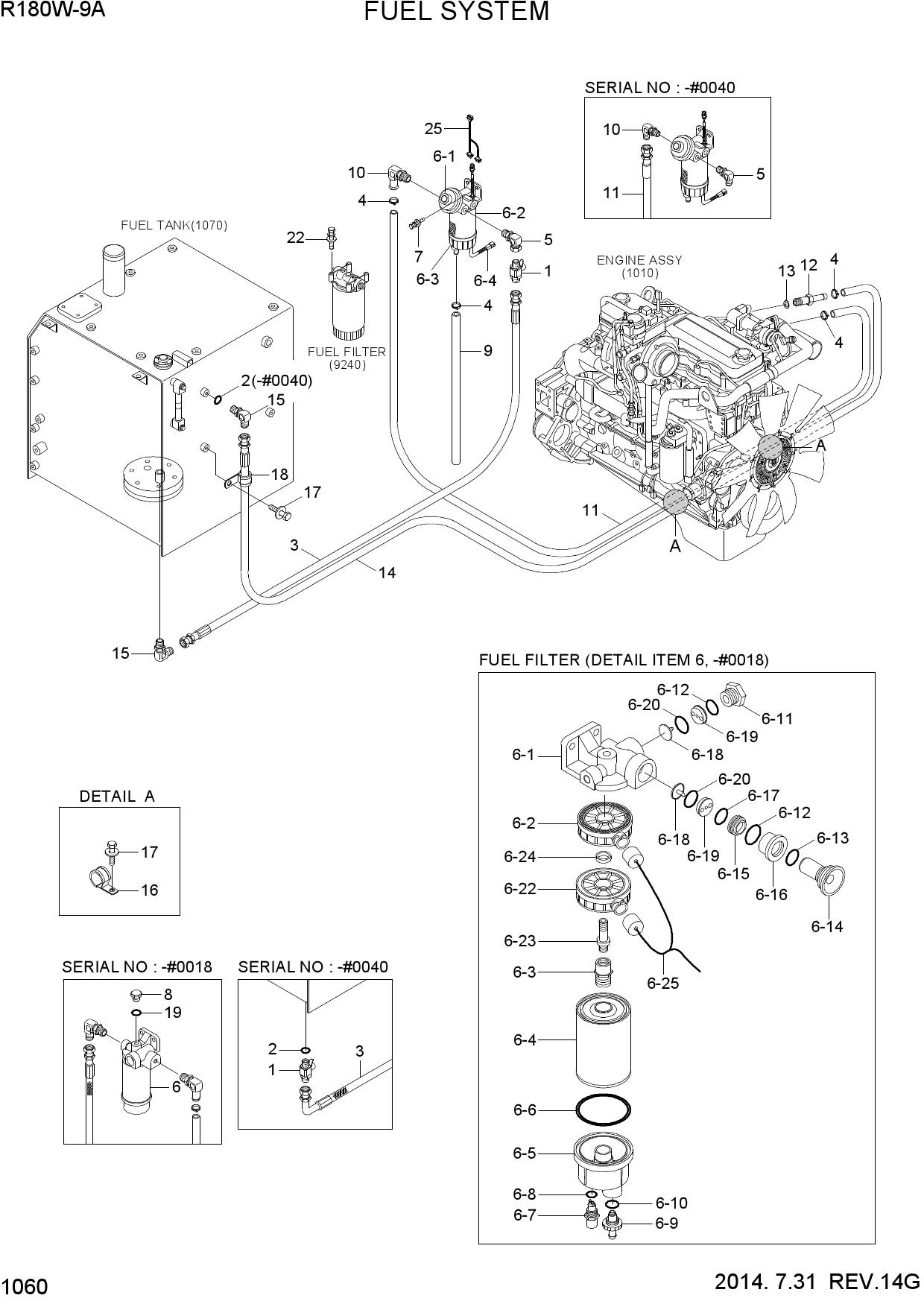

Запчасти для колесных экскаваторов Hyundai R180W-9A FUEL SYSTEM
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 11Q4-50010 | VALVE-FUEL CUT | |
| 1-1 | S631-018004 | O-RING | |
| 2 | S631-018004 | O-RING | |
| 3 | 11N5-50020 | HOSE ASSY-FUEL | |
| 3 | 11QE-50010 | HOSE-FUEL | |
| 4 | S520-020000 | CLAMP-HOSE | |
| 5 | 11Q4-50060 | ELBOW-90 | |
| 5 | 11Q4-52130 | ELBOW-90,ORFS | |
| 6 | 11NA-73000 | FUEL FILTER & W/S ASSY | |
| 6 | 11NA-71001 | FUEL FILTER & W/S ASSY | |
| 6-1 | 11NA-71010 | HEAD-FILTER | |
| 6-2 | 11NA-71020 | HEATER-FUEL | |
| 6-3 | 11NA-71030 | CONNECTOR | |
| 6-4 | 11NA-71041 | ELEMENT ASSY | |
| 6-5 | 11NA-71050 | BOWL-CLEAR | |
| 6-6 | 11NA-71060 | O-RING | |
| 6-7 | 11NA-71070 | SENSOR | |
| 6-8 | 11NA-71080 | O-RING | |
| 6-9 | 11NA-71090 | VALVE-SCREW | |
| 6-10 | 11NA-71100 | O-RING | |
| N6-11 | 11NA-71110 | PLUG-SCREW | |
| N6-12 | 11NA-71120 | O-RING | |
| N6-13 | 11NA-71130 | O-RING | |
| N6-14 | 11NA-71140 | PUMP-BODY PRIMING | |
| N6-15 | 11NA-71150 | PUMP-HEAD | |
| N6-16 | 11NA-71160 | HOLDER | |
| N6-17 | 11NA-71170 | O-RING | |
| N6-18 | 11NA-71180 | PLATE-VALVE | |
| N6-19 | 11NA-71190 | FRAME-VALVE | |
| N6-20 | 11NA-71200 | O-RING | |
| 6-22 | 11NA-71020 | HEATER-FUEL | |
| 6-23 | 11Q6-50100 | CONNECTOR | |
| 6-24 | 11Q6-50110 | SPACER | |
| 6-25 | 21Q8-23200 | HARNESS-FUEL WARMER | |
| 6 | 11QA-71000 | FUEL FILTER ASSY | |
| 6 | 11QA-73000 | FUEL FILTER ASSY | |
| 6-1 | 11QA-71010 | HEAD ASSY | |
| 6-2 | 11QA-71040 | ELEMENT ASSY | |
| 6-3 | 11QA-71050 | BOWL ASSY | |
| 6-3 | 11QA-71030 | BOWL ASSY | |
| 6-4 | 11QA-71020 | WIF SENSOR ASSY | |
| 7 | S035-082556 | BOLT-W/WASHER | |
| 8 | P210-101400 | PLUG-HEX | |
| 9 | 11F8-00061 | HOSE-FUEL | |
| 10 | 11N8-50060 | ELBOW-90 | |
| 10 | 11Q4-50060 | ELBOW-90 | |
| 11 | 11N8-57060 | HOSE-FUEL | |
| 11 | 11Q8-52060 | HOSE-FUEL | |
| 12 | 11ND-40170 | CONNECTOR | |
| 13 | P392-120000 | WASHER-COPPER | |
| 14 | 11N8-57060 | HOSE-FUEL | |
| 15 | P020-110003 | ELBOW-90 | |
| 15 | P020-110003 | ELBOW-90 | |
| 16 | 31L7-10220 | CLAMP-TUBE,INS SINGLE | |
| 17 | S037-102056 | BOLT-W/WASHER | |
| 18 | 31L7-10190 | CLAMP-TUBE | |
| 19 | S631-014001 | O-RING | |
| 22 | S035-083026 | BOLT-W/WASHER | |
| 25 | 21QB-23500 | HARNESS FUEL WARMER |
