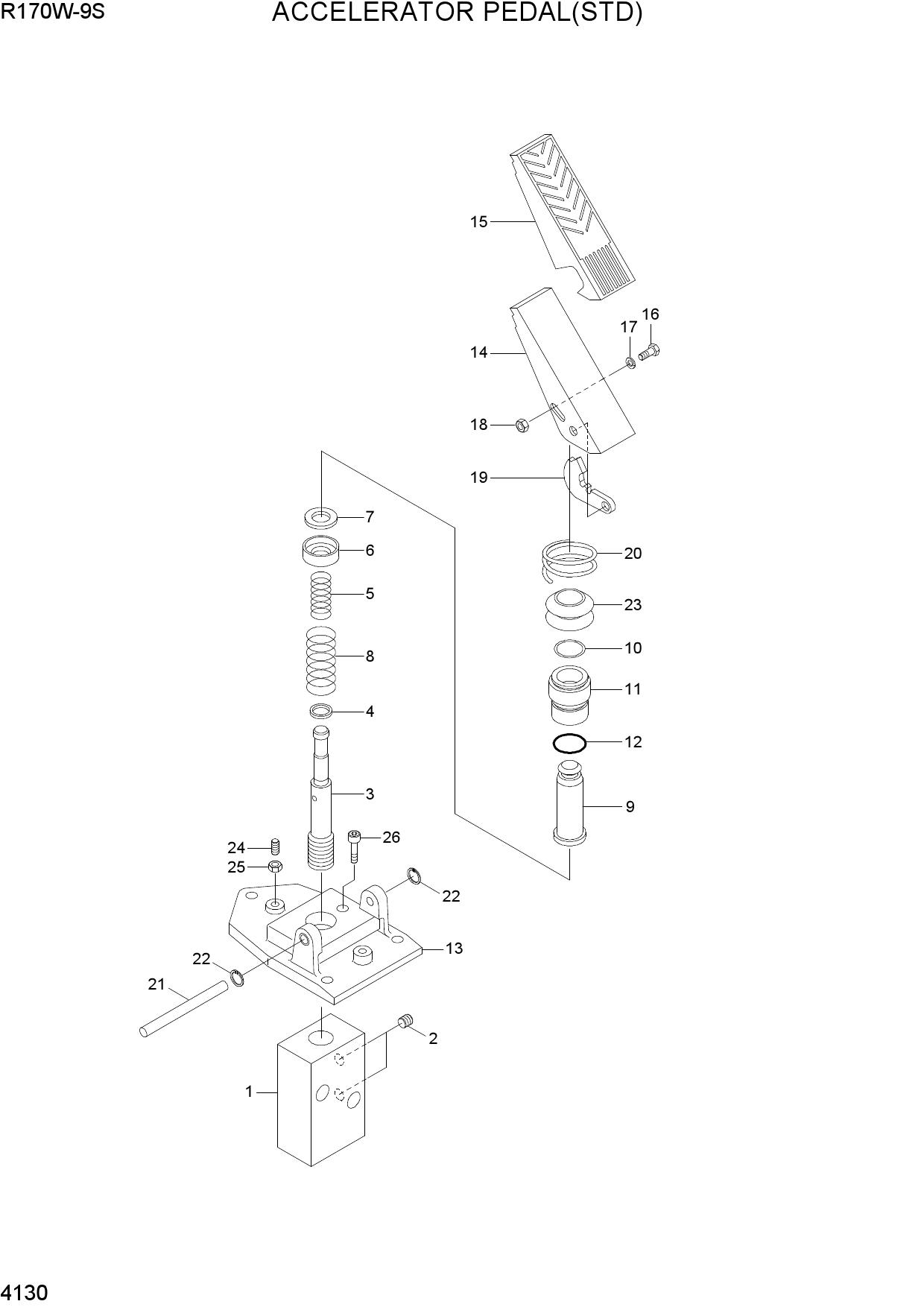

Запчасти для колесных экскаваторов Hyundai R170W-9S ACCELERATOR PEDAL(STD)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 31N5-20020 | RCV PEDAL | |
| 1 | XKAY-00079 | BODY | |
| 2 | XKAY-00065 | PLUG | |
| 3 | XKAY-00080 | SPOOL | |
| 4 | XKAY-00081 | SEAT-SPRING | |
| 5 | XKAY-00082 | SPRING | |
| 6 | XKAY-00083 | SEAT-SPRING | |
| 7 | XKAY-00084 | STOPPER | |
| 8 | XKAY-00085 | SPRING | |
| 9 | XKAY-00113 | PUSH ROD | |
| 10 | XKAY-00055 | SEAL-ROD | |
| 11 | XKAY-00114 | PLUG | |
| 12 | XKAY-00100 | O-RING | |
| 13 | XKAY-00112 | PLATE | |
| 14 | XKAY-00111 | PEDAL | |
| 15 | XKAY-00110 | PEDAL COVER | |
| 16 | XKAY-00109 | HEX BOLT | |
| 17 | XKAY-00108 | WASHER | |
| 18 | XKAY-00107 | NUT | |
| 19 | XKAY-00106 | YOKE | |
| 20 | XKAY-00105 | SPRING | |
| 21 | XKAY-00104 | GUIDE PIN | |
| 22 | XKAY-00103 | SNAP RING | |
| 23 | XKAY-00102 | BELLOWS | |
| 24 | XKAY-00101 | SET SCREW | |
| 25 | XKAY-00006 | NUT-HEX | |
| 26 | XKAY-00096 | BOLT-SOCKET |
