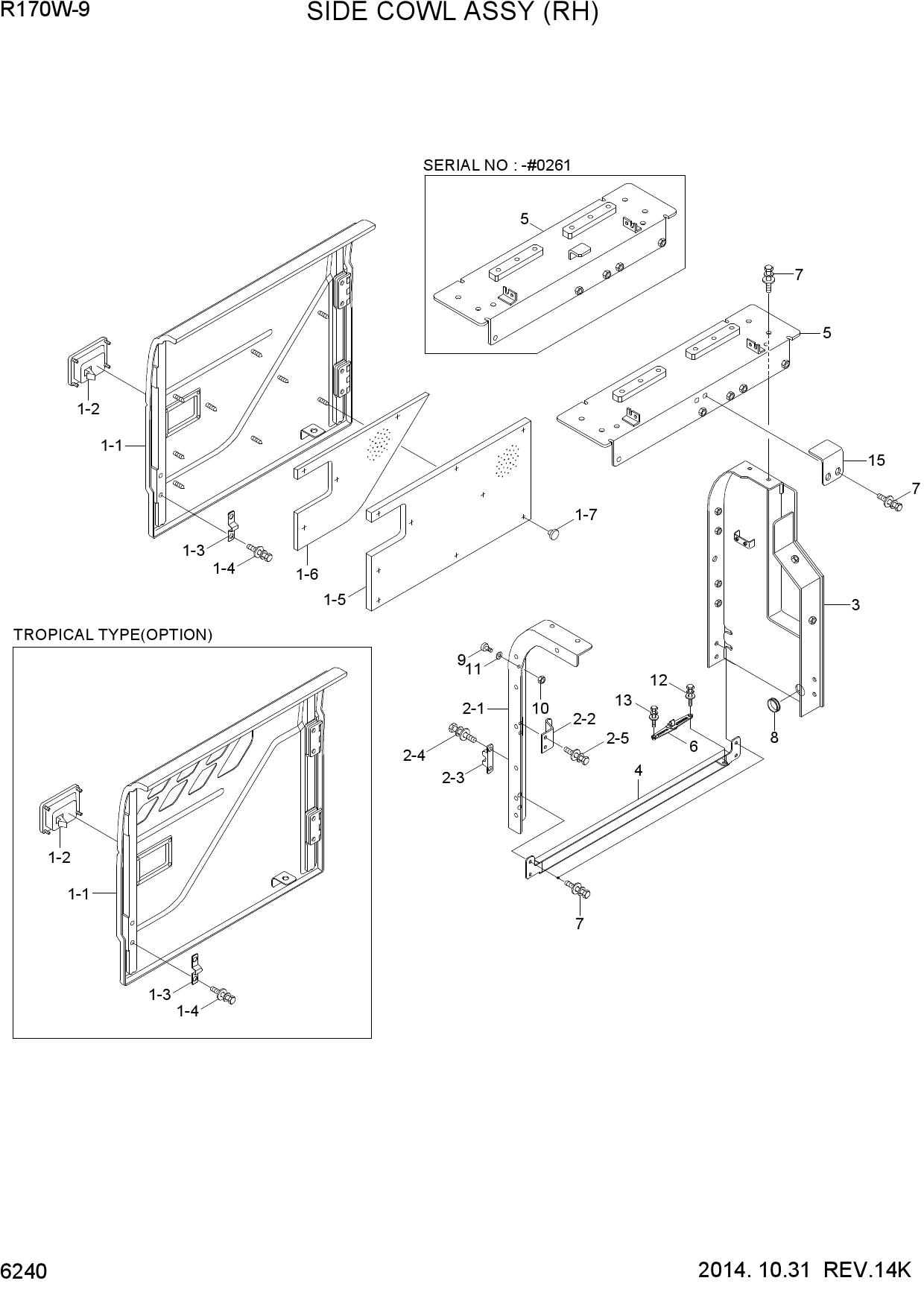

Запчасти для колесных экскаваторов Hyundai R170W-9 SIDE COWL ASSY (RH)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 72Q5-53000 | SIDE COWL ASSY-RH | |
| * | 72Q5-53001 | SIDE COWL ASSY-RH | |
| * | 72Q5-63000 | SIDE COWL ASSY-RH | |
| * | 72Q5-63001 | SIDE COWL ASSY-RH | |
| 1 | 71Q5-53100 | SIDE COVER ASSY-RH | |
| 1 | 71Q5-63100 | SIDE COVER ASSY-RH | |
| 1-1 | 71Q5-53110 | SIDE COVER WA-RH | |
| 1-1 | 71Q5-63110 | SIDE COVER WA-RH | |
| 1-2 | 71Q6-52190 | LATCH ASSY | |
| 1-3 | 71Q6-53911 | STOPPER-A | |
| 1-4 | S035-082026 | BOLT-W/WASHER | |
| 1-5 | 71Q5-53180 | SPONGE | |
| 1-6 | 71Q5-53190 | SPONGE | |
| 1-7 | 71EM-51580 | CAP-STUD BOLT | |
| 2 | 71Q5-53500 | SUPPORT ASSY-RH(FR) | |
| 2-1 | 71Q5-53510 | SUPPORT WA-RH(FR) | |
| 2-2 | 71Q4-52490 | PLATE-LOCK | |
| 2-3 | 71Q6-53951 | STOPPER-B | |
| 2-4 | S035-082056 | BOLT-W/WASHER | |
| 2-5 | 71Q6-50025 | BOLT-W/WASHER | |
| 3 | 72Q5-53200 | SUPPORT WA-RH(RR) | |
| 4 | 71Q5-53300 | SUPPORT-RH(BOTTOM) | |
| 4 | 71Q5-53301 | SUPPORT-RH,BOTTOM | |
| 5 | 72Q5-53400 | HOOD WA-PUMP | |
| 5 | 72Q5-53401 | HOOD WA-PUMP | |
| 6 | 71Q6-53180 | STAY ASSY-RH | |
| 7 | 71Q6-50025 | BOLT-W/WASHER | |
| 7 | 71Q6-50025 | BOLT-W/WASHER | |
| 8 | S681-290400 | GROMMET | |
| 9 | 71EH-13150 | BUMPER-RUBBER | |
| 10 | S205-101006 | NUT-HEX | |
| 11 | S403-10200B | WASHER-PLAIN | |
| 12 | S037-103556 | BOLT-W/WASHER | |
| 13 | S037-102556 | BOLT-W/WASHER | |
| 15 | 76Q5-53430 | BRACKET |
