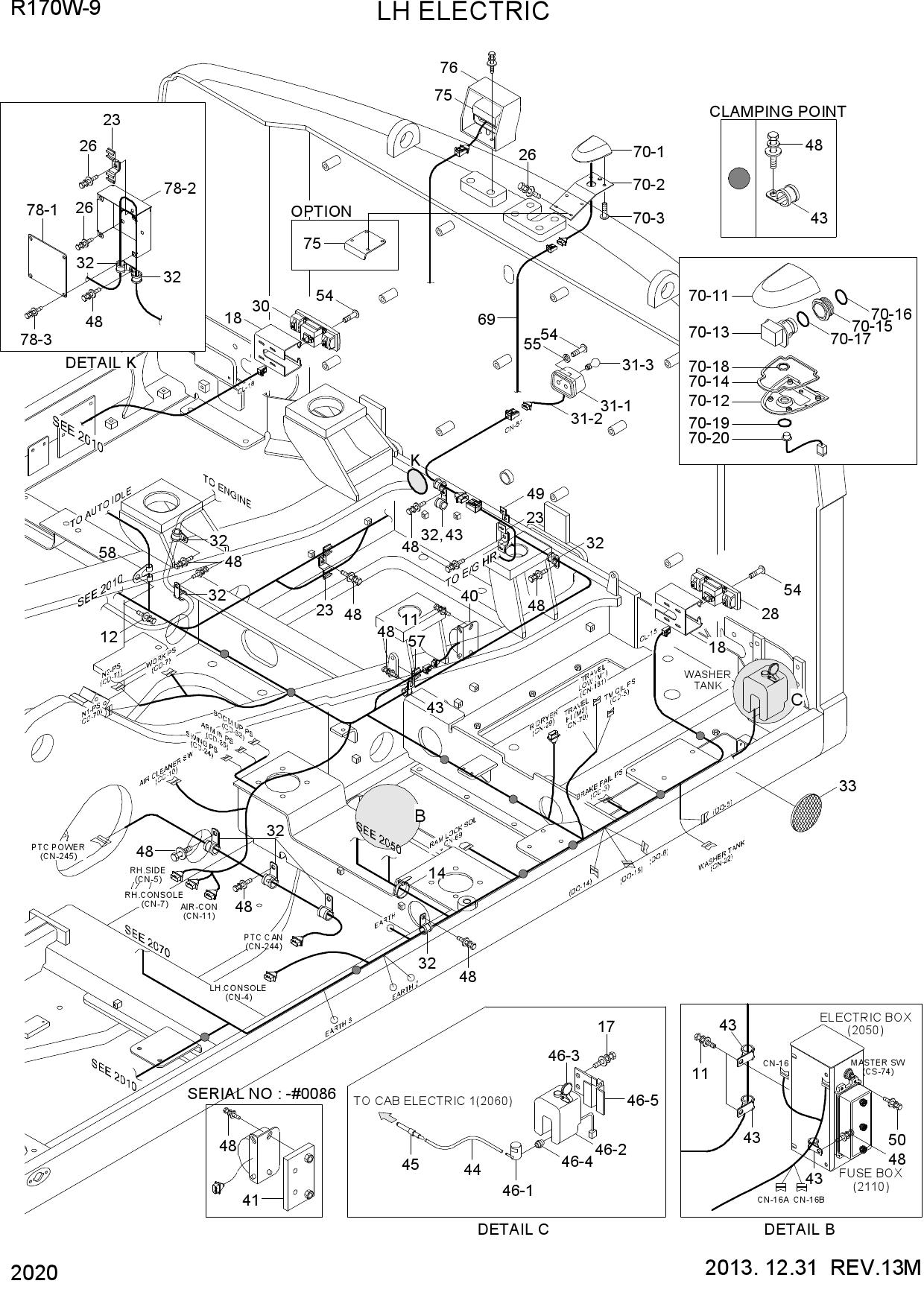

Запчасти для колесных экскаваторов Hyundai R170W-9 LH ELECTRIC
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 11 | S035-081516 | BOLT-W/WASHER | |
| 12 | S037-122056 | BOLT-W/WASHER | |
| 14 | S552-102370 | CLAMP-BAND | |
| 17 | S035-062026 | BOLT-W/WASHER | |
| 18 | 21Q4-30200 | BRACKET-COMBI LAMP | |
| 18 | 21Q4-30201 | BRACKET-COMBI LAMP | |
| 23 | 21N4-01130 | PLATE-CLIP | |
| 26 | S037-101556 | BOLT-W/WASHER | |
| 26 | S037-101556 | BOLT-W/WASHER | |
| 28 | 21Q4-60201 | COMBI LAMP-REAR,LH | |
| 28 | 21Q4-60202 | COMBI LAMP-REAR,LH | |
| 30 | 21Q4-60211 | COMBI LAMP-REAR,RH | |
| 30 | 21Q4-60212 | COMBI LAMP-REAR,RH | |
| 31 | 21LB-34250 | LAMP SUB-NUMBER PLATE | |
| 31-1 | 21EK-10160 | LAMP-NUMBER PLATE | |
| 31-2 | 21LB-34260 | HARNESS-EXT(N/LAMP) | |
| 31-3 | 21EK-10260 | BULB-10W | |
| 32 | 31L7-10200 | CLAMP-TUBE | |
| 33 | 21EK-10150 | REFLECTOR-SIDE | |
| 40 | 21N4-46801 | BUZZER-BACK | |
| 41 | 21Q4-47000 | PLATE-BACK BUZZER | |
| 43 | 31L7-10190 | CLAMP-TUBE | |
| 44 | 21EM-30581 | HOSE-RUBBER | |
| 45 | 21EM-30570 | CONNECTOR-TUBE | |
| 46 | 21EG-30630 | WASHER TANK ASSY | |
| 46-1 | 21EG-10130 | PUMP-MOTOR | |
| 46-2 | 21EG-10140 | TANK | |
| 46-3 | 24L3-30660 | CAP | |
| 46-4 | 24L3-30670 | RUBBER-BUSHING | |
| 46-5 | 24L3-30710 | PLATE | |
| 48 | S037-102026 | BOLT-W/WASHER | |
| 49 | 21E9-06160 | CLIP | |
| 50 | S035-061626 | BOLT-W/WASHER | |
| 54 | S161-050156 | SCREW-CROSS R/ROUND | |
| 55 | S411-050006 | WASHER-SPRING | |
| 57 | 25D1-10650 | CLIP ASSY | |
| 58 | 21E9-00170 | CLIP-HARNESS | |
| 68 | 21Q4-01220 | HARNESS-WORK LAMP | |
| 69 | 21Q6-11142 | HARNESS-CAMERA | |
| 70 | 21Q5-60100 | CAMERA ASSY-REAR VIEW | |
| 70 | 21Q5-60101 | CAMERA ASSY-REAR VIEW | |
| 70 | 21Q5-60102 | CAMERA ASSY-REAR VIEW | |
| 70-1 | 21AB-30031 | CAMERA ASSY-REAR | |
| 70-1 | 21AB-30032 | CAMERA ASSY-REAR | |
| 70-1 | 21AB-30033 | CAMERA ASSY-REAR | |
| N70-11 | 21AB-40100 | DOME-HOUSING | |
| N70-11 | 21AB-30110 | COVER-TOP | |
| N70-12 | 21AB-40200 | BASE-HOUSING | |
| N70-12 | 21AB-30120 | COVER-BOTTOM | |
| N70-13 | 21AB-40300 | CAMERA & PCB ASSY | |
| N70-13 | 21AB-30130 | CAMERA & PCB ASSY | |
| N70-14 | 21AB-40400 | SEAL | |
| N70-14 | 21AB-30140 | GASKET | |
| N70-15 | 21AB-40500 | WINDOW | |
| N70-15 | 21AB-30150 | LENS-WINDOW | |
| N70-16 | 21AB-40600 | GROMMET | |
| N70-16 | 21AB-30160 | O-RING/LENS WINDOW | |
| N70-17 | 21AB-30170 | O-RING-CAM | |
| N70-18 | 21AB-30180 | NUT-VOLUME | |
| N70-19 | 21AB-30190 | O-RING | |
| N70-20 | 21AB-30210 | CABLE ASSY | |
| 70-2 | 21Q5-20011 | BRACKET-CAMERA | |
| N70-2 | 21Q5-60110 | BRACKET-CAMERA | |
| 70-3 | S141-050106 | SCREW-FLAT HD | |
| 70-3 | S141-050102 | SCREW-FLAT HD | |
| 75 | 21QB-60700 | WORK LAMP ASSY | |
| 75-1 | S866-240650 | BULB | |
| 76 | 21Q4-47020 | GUARD-BACK LIGHT | |
| 77 | 21Q5-60150 | PLATE | |
| 78 | 21Q4-91040 | COVER ASSY | |
| 78 | 21Q4-91041 | COVER ASSY | |
| 78-1 | 21Q4-91070 | COVER | |
| 78-1 | 21Q4-91071 | COVER | |
| 78-2 | 21Q4-91050 | PLATE | |
| 78-2 | 21Q4-91051 | PLATE | |
| 78-3 | S035-081526 | BOLT-W/WASHER |
