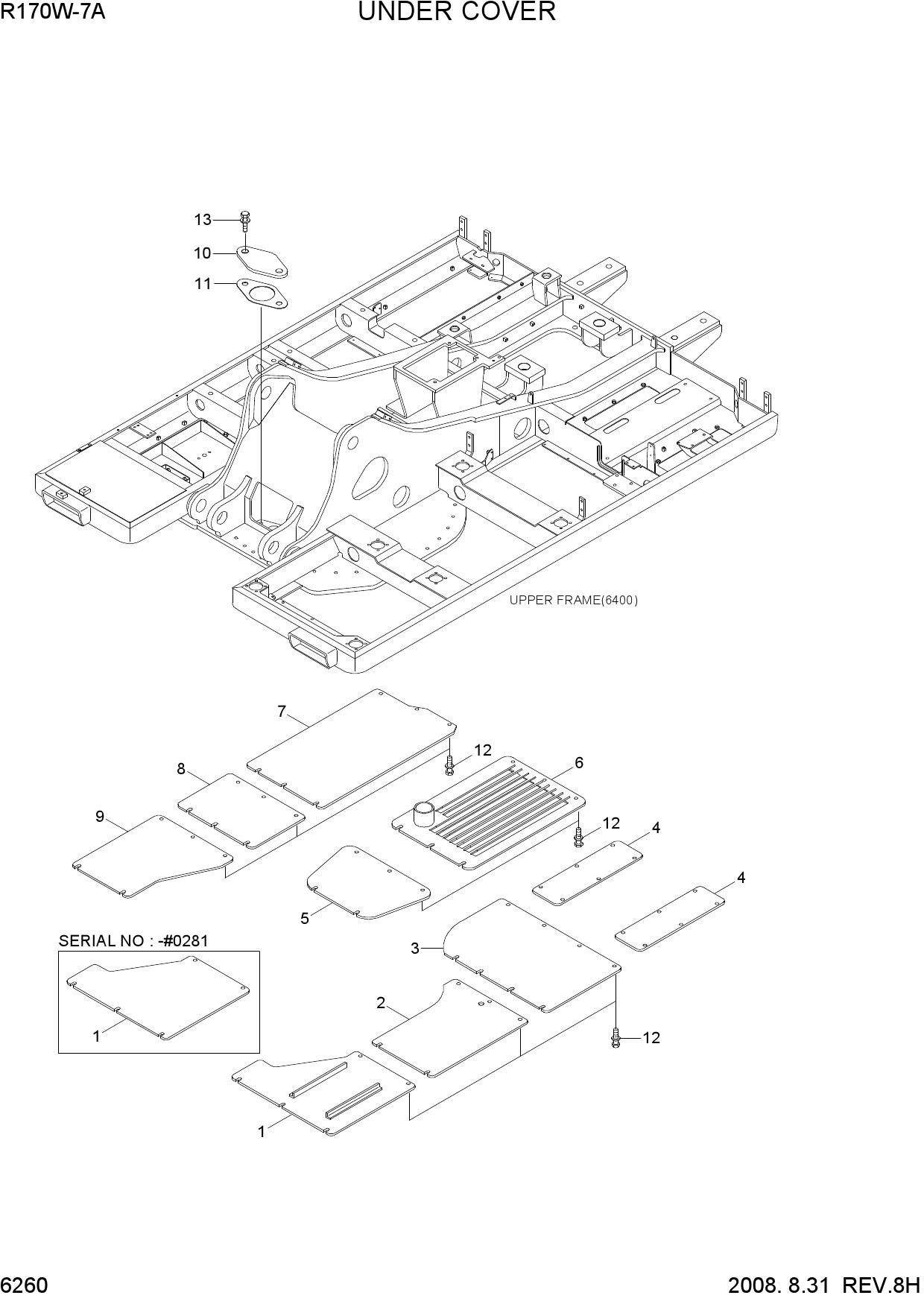

Запчасти для колесных экскаваторов Hyundai R170W-7A UNDER COVER
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 43N5-36100 | UNDER COVER-CAB(A) | |
| 1 | 43N5-36101 | UNDER COVER-CAB(A) | |
| 2 | 43N5-36020 | UNDER COVER-CAB(B) | |
| 3 | 43N5-36030 | UNDER COVER-CAB(C) | |
| 4 | 43N5-36040 | UNDER COVER-RADIATOR | |
| 5 | 43N5-36050 | UNDER COVER-MCV | |
| 6 | 43N5-36060 | UNDER COVER-ENGINE | |
| 7 | 43N5-36070 | UNDER COVER-PUMP | |
| 8 | 43N5-36080 | UNDER COVER-H/TANK | |
| 9 | 43N5-36090 | UNDER COVER-F/TANK | |
| 10 | 41N6-10100BG | COVER | |
| 10 | 41N6-10100 | COVER | |
| 11 | 41E9-1306 | SEAL | |
| 12 | S037-102566 | BOLT-W/WASHER | |
| 13 | S037-102056 | BOLT-W/WASHER |
