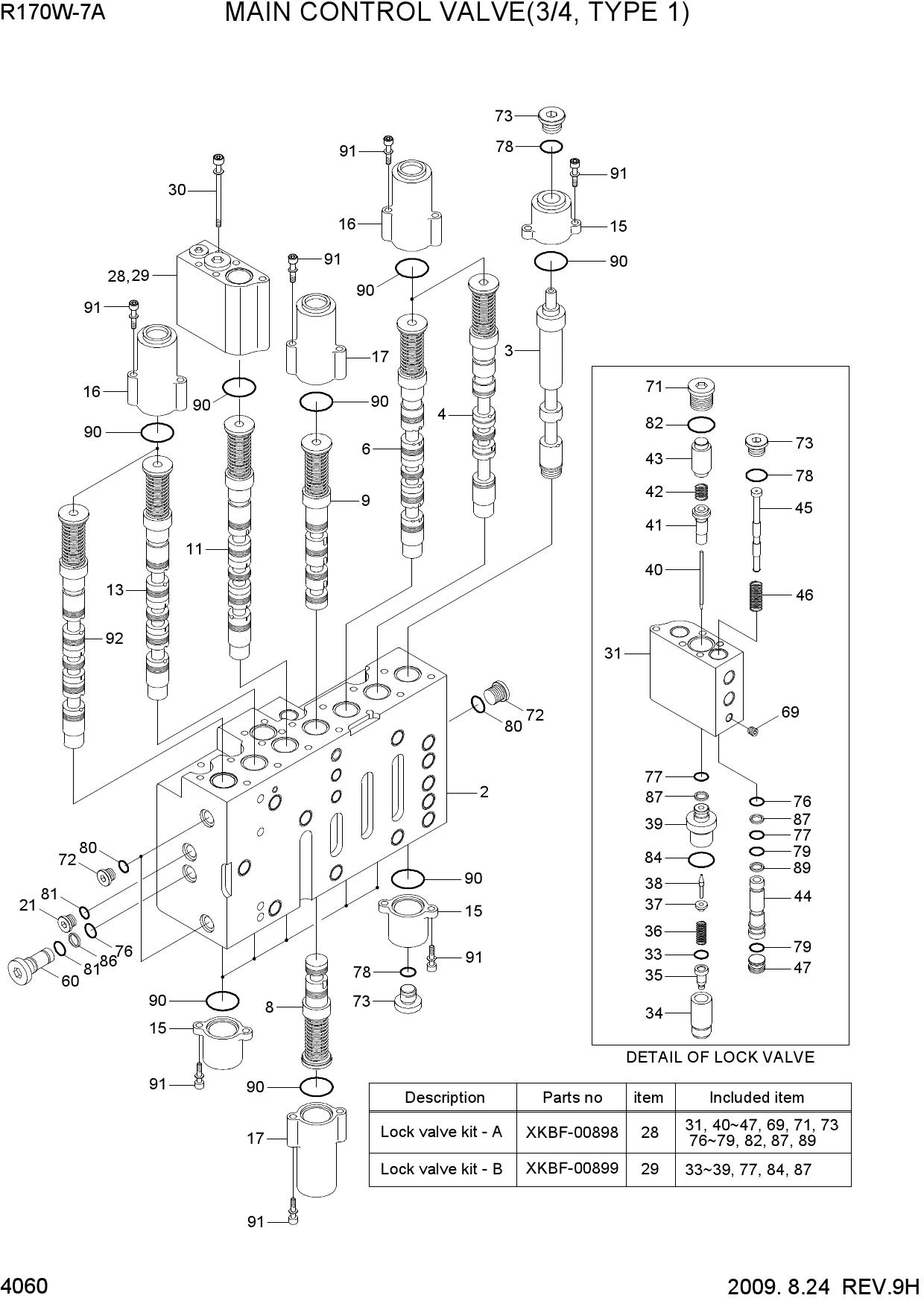

Запчасти для колесных экскаваторов Hyundai R170W-7A MAIN CONTROL VALVE(3/4, TYPE 1)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| N2 | XKBF-00873 | HOUSING-P2 | |
| 3 | XKBF-00479 | SPOOL ASSY | |
| 4 | XKBF-00875 | SPOOL ASSY | |
| 6 | XKBF-00965 | SPOOL ASSY | |
| 8 | XKBF-00355 | SPOOL ASSY | |
| 9 | XKBF-00967 | SPOOL ASSY | |
| 11 | XKBF-00969 | SPOOL ASSY | |
| 13 | XKBF-00884 | SPOOL ASSY | |
| 15 | XKBF-00886 | COVER A-PILOT | |
| 16 | XKBF-00887 | COVER B1-PILOT | |
| 17 | XKBF-00888 | COVER B2-PILOT | |
| K28 | XKBF-00898 | LOCK VALVE KIT-A | |
| 31 | XKBF-00901 | BLOCK-HOLDING | |
| 40 | XKBF-00910 | PISTON 1 | |
| 41 | XKBF-00911 | GUIDE-PISTON | |
| 42 | XKBF-00912 | SPRING 1 | |
| 43 | XKBF-00913 | PISTON 2 | |
| 44 | XKBF-00914 | SLEEVE | |
| 45 | XKBF-00915 | SPOOL | |
| N46 | XKBF-00916 | SPRING 2 | |
| 47 | XKBF-00793 | STOPPER | |
| 69 | XKBF-00728 | PLUG | |
| 71 | XKBF-00060 | PLUG | |
| 73 | XKBF-00934 | PLUG | |
| 76 | XKBF-00937 | O-RING | |
| 77 | XKBF-00958 | O-RING | |
| 78 | XKBF-00615 | O-RING | |
| 79 | XKBF-00939 | O-RING | |
| 87 | XKBF-00962 | RING-BACK UP | |
| 82 | XKBF-00618 | O-RING | |
| 89 | XKBF-00964 | RING-BACK UP | |
| K29 | XKBF-00899 | LOCK VALVE KIT-B | |
| 33 | XKBF-00903 | C-RING | |
| N34 | XKBF-00904 | POPPET-LOCK VALVE | |
| 35 | XKBF-00905 | RESTRICTOR-LOCK VLV | |
| 36 | XKBF-00906 | SPRING | |
| 37 | XKBF-00907 | GUIDE-POPPET | |
| 38 | XKBF-00908 | POPPET-PILOT | |
| 39 | XKBF-00909 | SEAT-POPPET | |
| 77 | XKBF-00958 | O-RING | |
| 84 | XKBF-00943 | O-RING | |
| 87 | XKBF-00962 | RING-BACK UP | |
| 21 | XKBF-00892 | PLUG | |
| 30 | XKBF-00900 | BOLT-SOCKET HEAD | |
| N60 | XKBF-00924 | PLUG | |
| 72 | XKBF-00933 | PLUG | |
| 73 | XKBF-00934 | PLUG | |
| 76 | XKBF-00937 | O-RING | |
| 78 | XKBF-00615 | O-RING | |
| 80 | XKBF-00940 | O-RING | |
| 81 | XKBF-00941 | O-RING | |
| 86 | XKBF-00961 | RING-BACK UP | |
| 90 | XKBF-00949 | O-RING | |
| 91 | XKBF-00950 | BOLT-SOCKET HEAD | |
| 92 | XKBF-00951 | SPOOL ASSY |
