- MAIN PUMP
- REGULATOR
- GEAR PUMP
- MAIN CONTROL VALVE(1/4)
- MAIN CONTROL VALVE(2/4)
- MAIN CONTROL VALVE(3/4)
- MAIN CONTROL VALVE(4/4)
- SWING MOTOR
- SWING REDUCTION GEAR
- REMOTE CONTROL LEVER (TYPE 1)
- REMOTE CONTROL LEVER (TYPE 2)
- REMOTE CONTROL LEVER (TYPE 3)
- DOZER CONTROL LEVER
- ACCELERATOR PEDAL(STD)
- ACCELERATOR PEDAL(2 WAY, OPTION)
- TRAVEL MOTOR(1/2)
- TRAVEL MOTOR(2/2)
- COUNTER BALANCE VALVE
- TURNING JOINT
- TURNING JOINT SUB
- BOOM CYLINDER
- BOOM CYLINDER(ADJUST BOOM)
- ARM CYLINDER
- BUCKET CYLINDER
- DOZER BLADE CYLINDER(REAR)
- DOZER BLADE CYLINDER(FRONT)
- OUTRIGGER CYLINDER
- ADJUST CYLINDER(ADJUST BOOM)
- SOLENOID VALVE(-#0059)
- SOLENOID VALVE(CLUSTER TYPE1,2)
- STEERING VALVE
- TRAVEL CONTROL VALVE
- BRAKE SUPPLY VALVE
- BRAKE VALVE
- QUICK CLAMP(HOOK TYPE 1, -#0182)
- QUICK CLAMP(CLOSED TYPE 1, -#0182)
- QUICK CLAMP CYLINDER(-#0182)
- QUICK CLAMP(HOOK TYPE 2, -#0182)
- QUICK CLAMP(CLOSED TYPE 2, -#0182)
- QUICK CLAMP(HOOK TYPE 1, #0183-)
- QUICK CLAMP(CLOSED TYPE 1, #0183-)
- QUICK CLAMP(HOOK TYPE 2, #0183-)
- QUICK CLAMP(CLOSED TYPE 2, #0183-)
- BREAKER ASSY(1/2)
- BREAKER ASSY(2/2)
- BREAKER AUTO GREASE UNIT(OPT)
- BREAKER CENTRAL GREASE SUPPLY UNIT(OPT)

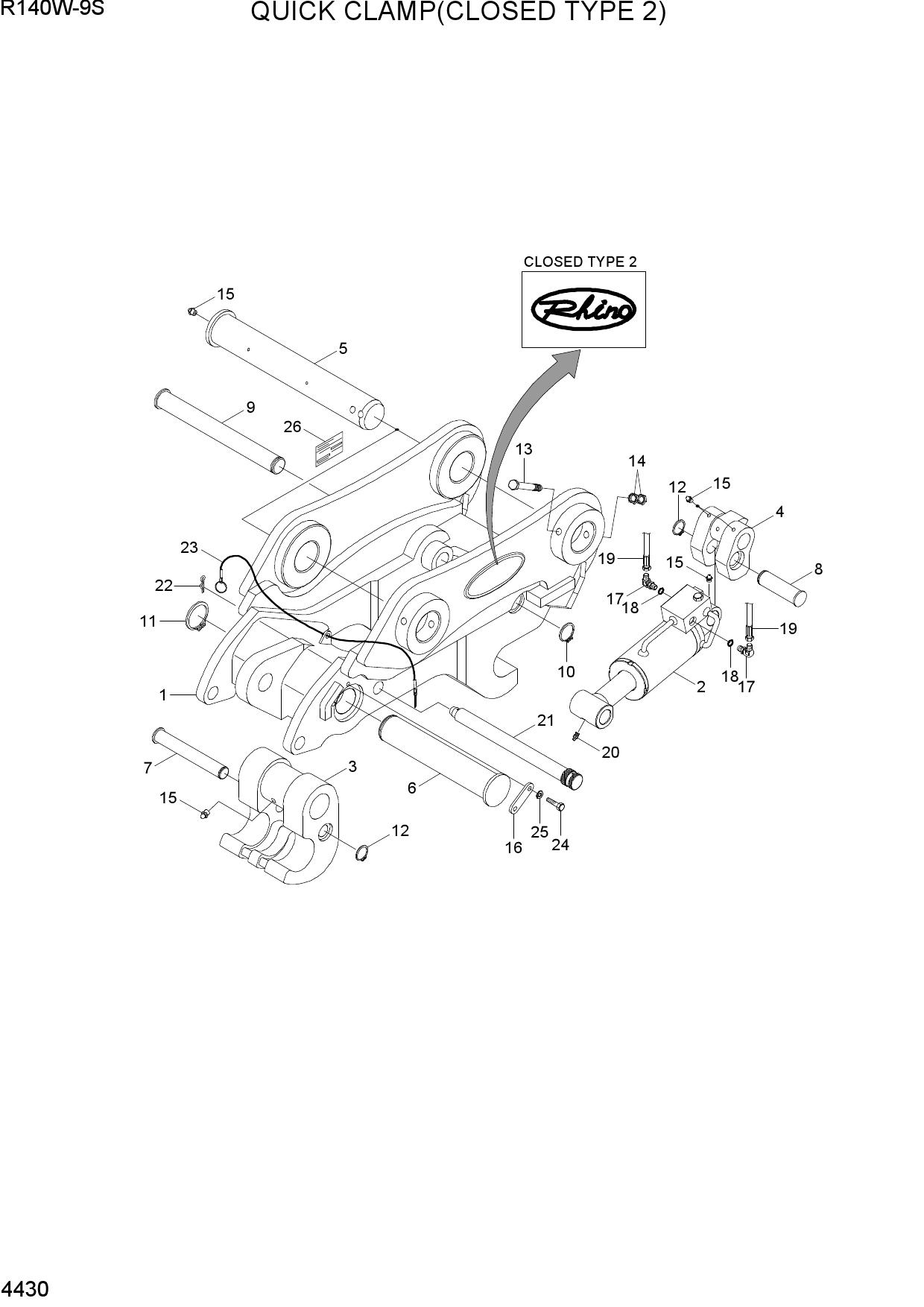

Запчасти для колесных экскаваторов Hyundai R140W-9S QUICK CLAMP(CLOSED TYPE 2, -#0182)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 31Q4-96720 | QUICK CLAMP ASSY | |
| 1 | XKBP-00103 | BODY ASSY | |
| 2 | XKBP-00094 | CYLINDER ASSY | |
| 3 | XKBP-00003 | HOOK | |
| 4 | XKBP-00095 | LOCK ASY | |
| 5 | XKBP-00005 | PIN-BRACKET | |
| 6 | XKBP-00096 | HOOK PIN | |
| 7 | XKBP-00007 | PIN-JOINT | |
| 8 | XKBP-00008 | PIN-JOINT | |
| 9 | XKBP-00009 | PIN-LOCK | |
| 10 | XKBP-00010 | RING-SNAP | |
| 11 | XKBP-00011 | RING-SNAP | |
| 12 | XKBP-00012 | RING-SNAP | |
| 13 | XKBP-00097 | BOLT-HEX | |
| 14 | XKBP-00014 | NUT-HEX | |
| 15 | XKBP-00015 | NIPPLE-GREASE | |
| 16 | XKBP-00098 | PLATE-COVER | |
| 17 | XKBP-00018 | ELBOW-90 | |
| 18 | XKBP-00019 | O-RING | |
| 19 | XKBP-00020 | HOSE ASSY | |
| 20 | XKBP-00024 | NIPPLE-GREASE | |
| 21 | XKBP-00104 | PIN-STOPPER | |
| 22 | XKBP-00105 | PIN-SNAP | |
| 23 | XKBP-00106 | WIRE ASSY | |
| 24 | XKBP-00100 | BOLT-HEX | |
| 25 | XKBP-00101 | WASHER-SPRING | |
| 26 | XKBP-00107 | NAME PLATE |
