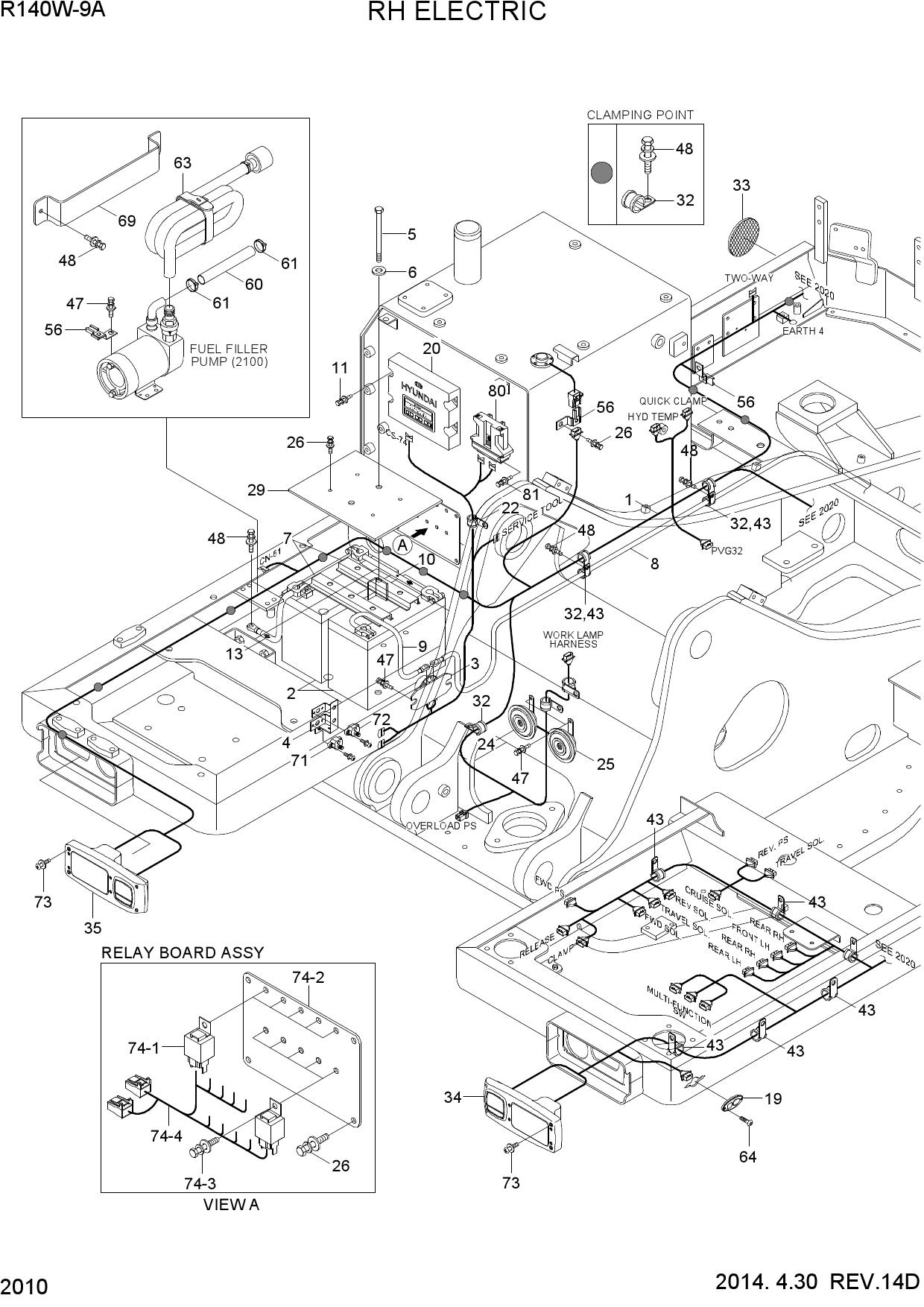

Запчасти для колесных экскаваторов Hyundai R140W-9A RH ELECTRIC
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 27Q4-30362 | HARNESS-FRAME | |
| 1 | 27Q4-30363 | HARNESS-FRAME | |
| 1 | 27Q4-40360 | HARNESS-FRAME | |
| 1 | 27Q4-40361 | HARNESS-FRAME | |
| 1-1 | 21EA-50550 | DIODE | |
| 1-2 | 21EA-50570 | DIODE-FE3D | |
| 2 | 21E6-20270 | BATTERY | |
| 3 | 21QA-70010 | RELAY-BATTERY | |
| 4 | 21Q7-21110 | PLATE | |
| 5 | S017-102656 | BOLT-HEX | |
| 6 | S403-10200B | WASHER-PLAIN | |
| 7 | 21Q4-60400 | BAR-BATTERY | |
| 8 | 21E2-60031 | CABLE(BATT RY-STARTER) | |
| 9 | 21EA-60490 | CABLE(BATT-BATT RY) | |
| 10 | 21N4-01400 | CABLE(BATT-BATT) | |
| 11 | S035-081526 | BOLT-W/WASHER | |
| 13 | 21EA-60620 | CABLE(BATT-EARTH) | |
| 19 | 21Q4-20200 | LAMP-SIDE MARKER | |
| 20 | 21Q4-33200 | MCU(MACHINE CNTL UNIT) | |
| 22 | 31L7-10220 | CLAMP-TUBE,INS SINGLE | |
| 24 | 21N5-10051 | HORN-LOW | |
| 25 | 21N5-10061 | HORN-HIGH | |
| 26 | S037-101556 | BOLT-W/WASHER | |
| 29 | 21Q4-60300 | COVER ASSY-BATTERY | |
| 32 | 31L7-10200 | CLAMP-TUBE | |
| 33 | 21EK-10150 | REFLECTOR-SIDE | |
| 34 | 21Q4-10350 | LAMP-HEAD&POSITION,LH | |
| 34-1 | 21Q4-16210 | LAMP UNIT-HEAD | |
| 34-2 | 21Q4-16230 | CASE-HEAD LAMP | |
| 34-3 | 21Q4-16220 | LAMP-FLASHER POSITION | |
| 35 | 21Q4-10360 | LAMP-HEAD&POSITION,RH | |
| 35-1 | 21Q4-16210 | LAMP UNIT-HEAD | |
| 35-2 | 21Q4-16240 | CASE-HEAD LAMP | |
| 35-3 | 21Q4-16220 | LAMP-FLASHER POSITION | |
| 43 | 31L7-10190 | CLAMP-TUBE | |
| 47 | S035-082526 | BOLT-W/WASHER | |
| 48 | S037-102026 | BOLT-W/WASHER | |
| 56 | 25D1-10640 | CLIP ASSY | |
| 60 | 21N4-20550 | HOSE-OUTLET | |
| 61 | S520-032000 | CLAMP-HOSE | |
| 63 | E127-3158 | BAND-FUEL PUMP | |
| 64 | S141-030256 | SCREW-FLAT HD | |
| 69 | 21QB-20080 | PLATE-CLAMP | |
| 71 | 21Q6-45100 | CIRCUIT-BREAKER,90A | |
| 72 | 21Q4-01161 | CIRCUIT-BREAKER,30A | |
| 73 | S131-053016 | SCREW-W/WASHER | |
| 74 | 21Q6-20441 | RELAY BOARD ASSY | |
| 74-1 | 22FV-24110 | RELAY | |
| 74-2 | 21Q6-20430 | BOARD WA-RELAY | |
| 74-3 | S132-061046 | SCREW-W/WASHER | |
| 74-4 | 21Q6-11161 | HARNESS-RELAY BOARD | |
| 80 | 21Q9-90021 | CONTROLLER-PVG32 | |
| 80 | 21Q9-90022 | CONTROLLER-PVG32 | |
| 81 | S035-066526 | BOLT-W/WASHER |
