- POWER TRAIN MOUNTING(-#0073)
- POWER TRAIN MOUNTING(#0074-)
- PROPELLER SHAFT(-#0238)
- PROPELLER SHAFT(#0239-)
- OSCILLATING CYLINDER
- FRONT AXLE HOUSING(-#0073)
- FRONT AXLE DIFFERENTIAL(-#0073)
- FRONT AXLE HUB REDUCTION(-#0073)
- FRONT AXLE BRAKE DISC(-#0073)
- FRONT AXLE CYLINDER(-#0073)
- REAR AXLE HOUSING(-#0073)
- REAR AXLE DIFFERENTIAL(-#0073)
- REAR AXLE HUB REDUCTION(-#0073)
- REAR AXLE BRAKE DISC(-#0073)
- TRANSMISSION INPUT HOUSING
- TRANSMISSION HOUSING
- TRANSMISSION MULTI-DISC BRAKE
- TRANSMISSION COUPLING
- TRANSMISSION PLANETARY DRIVE
- TRANSMISSION OUTPUT GROUP
- TRANSMISSION GEAR SHIFT SENSOR
- TRANSMISSION OIL PIPE
- FRONT AXLE INPUT GROUP(#0074-#0491)
- FRONT AXLE DIFFERENTIAL(#0074-#0491)
- FRONT AXLE CASING(#0074-#0491)
- FRONT AXLE JOINT HOUSING(#0074-#0491)
- FRONT AXLE OUTPUT GROUP(#0074-#0491)
- FRONT AXLE STEERING GEAR(#0074-#0491)
- FRONT AXLE UNIVERSAL JOINT(#0074-#0491)
- REAR AXLE INPUT GROUP(#0074-#0491)
- REAR AXLE DIFFERENTIAL(#0074-#0491)
- REAR AXLE CASING(#0074-#0491)
- REAR AXLE HUB CARRIER(#0074-#0491)
- REAR AXLE OUTPUT GROUP(#0074-#0491)
- FRONT AXLE INPUT GROUP(#0492-)
- FRONT AXLE DIFFERENTIAL(#0492-)
- FRONT AXLE CASING(#0492-)
- FRONT AXLE JOINT HOUSING(#0492-)
- FRONT AXLE STEERING GEAR(#0492-)
- FRONT AXLE STEERING GEAR(#0492-)
- FRONT AXLE UNIVERSAL JOINT(#0492-)
- REAR AXLE INPUT GROUP(#0492-)
- REAR AXLE DIFFERENTIAL(#0492-)
- REAR AXLE CASING(#0492-)
- REAR AXLE HUB CARRIER(#0492-)
- REAR AXLE OUTPUT GROUP(#0492-)

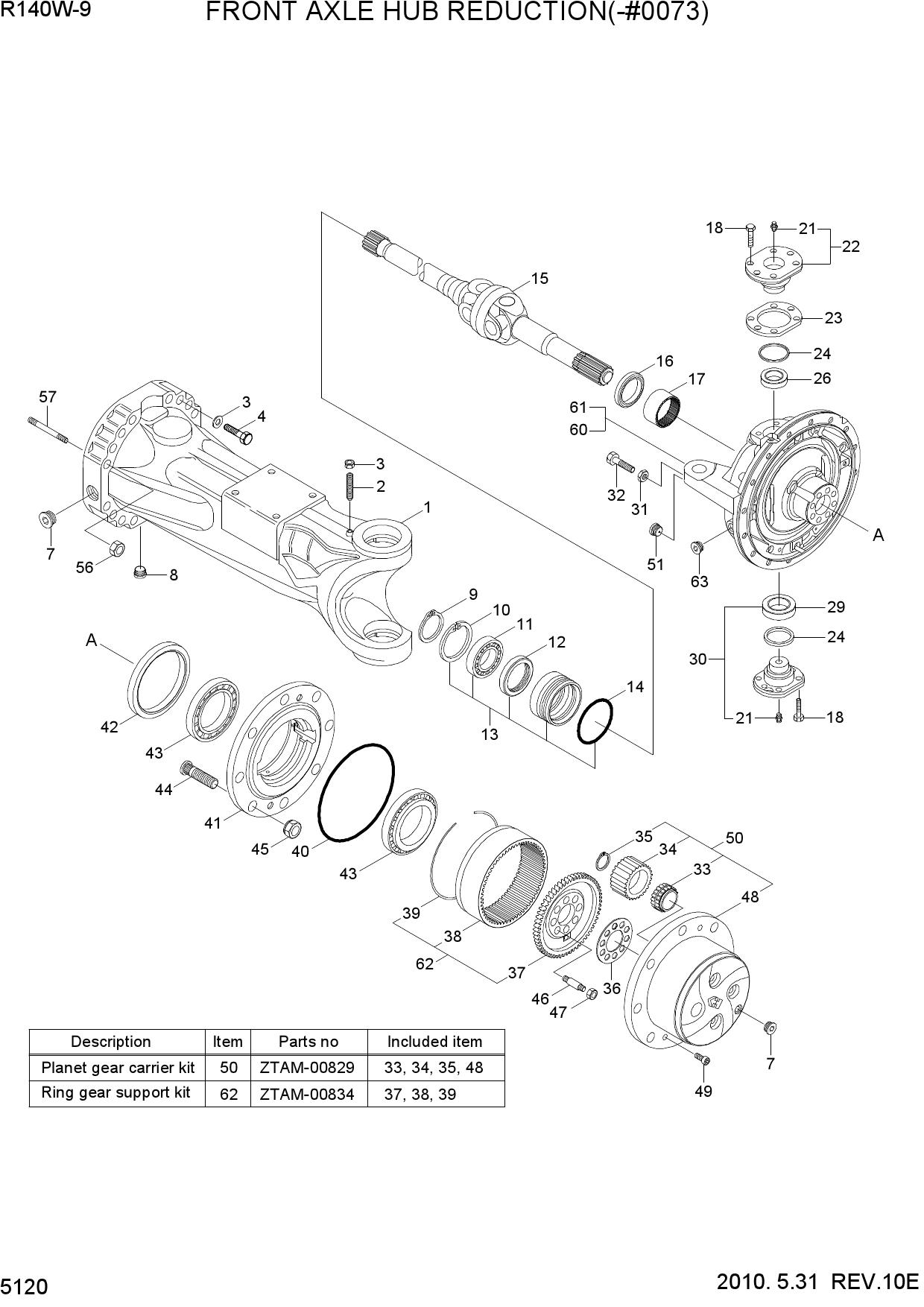

Запчасти для колесных экскаваторов Hyundai R140W-9 FRONT AXLE HUB REDUCTION(-#0073)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | ZTAM-00818 | CASE-AXLE | |
| 2 | ZTAM-00041 | ADJUST BOLT-STEERING | |
| 3 | ZTAM-00040 | NUT | |
| 4 | ZTAM-00044 | BOLT | |
| 7 | ZTAM-00006 | PLUG | |
| 8 | ZTAM-00570 | PLUG-MAGNET | |
| 9 | ZTAM-00048 | CIRCLIP | |
| 13 | ZTAM-00045 | BUSHING-REDUCTION | |
| 10 | ZTAM-00008 | CIRCLIP | |
| 11 | ZTAM-00049 | BEARING-BALL | |
| 12 | ZTAM-00046 | SEAL | |
| 14 | ZTAM-00050 | O-RING | |
| 15 | ZTAM-00819 | UNIVERSAL JOINT-DOUBLE | |
| 16 | ZTAM-00062 | SEAL | |
| 17 | ZTAM-00052 | BUSHING-THRUST | |
| 18 | ZTAM-00019 | BOLT | |
| 22 | ZTAM-00860 | PIVOT PIN | |
| 23 | ZTAM-00580 | SHIM(0.15T) | |
| 23 | ZTAM-00581 | SHIM(0.20T) | |
| 23 | ZTAM-00582 | SHIM(0.50T) | |
| 26 | ZTAM-00821 | BUSHING | |
| 30 | ZTAM-00822 | PIVOT PIN | |
| 21 | ZTAM-00056 | FITTING-GREASE | |
| 24 | ZTAM-00820 | EXCLUDER-DUST | |
| 29 | ZTAM-00060 | BEARING | |
| 31 | ZTAM-00081 | NUT | |
| 32 | ZTAM-00823 | ADJUST BOLT-STEERING | |
| 36 | ZTAM-00824 | PLATE-LOCKING | |
| 40 | ZTAM-00068 | O-RING | |
| 41 | ZTAM-00826 | HUB-WHEEL | |
| 42 | ZTAM-00827 | SEAL | |
| 43 | ZTAM-00065 | BEARING | |
| 44 | ZTAM-00066 | STUD-WHEEL | |
| 45 | ZTAM-00074 | NUT | |
| 46 | ZTAM-00077 | STUD | |
| 47 | ZTAM-00078 | NUT | |
| 49 | ZTAM-00075 | BOLT-COUNTERSUNK | |
| K50 | ZTAM-00829 | CARRIER KIT-PLANET GEAR | |
| 33 | ZTAM-00073 | BEARING | |
| 34 | ZTAM-00072 | GEAR-PLANET | |
| 35 | ZTAM-00071 | CIRCLIP | |
| 48 | ZTAM-00828 | CARRIER-PLANET GEAR | |
| 56 | ZTAM-00830 | NUT | |
| 57 | ZTAM-00831 | STUD | |
| 60 | ZTAM-00832 | CASE 1-STEERING | |
| 61 | ZTAM-00833 | CASE 2-STEERING | |
| K62 | ZTAM-00834 | SUPPORT KIT-RING GEAR | |
| 37 | ZTAM-00825 | SUPPORT-RING GEAR | |
| 38 | ZTAM-00069 | GEAR-RING | |
| 39 | ZTAM-00079 | CIRCLIP | |
| 63 | ZTAM-00835 | PLUG |
