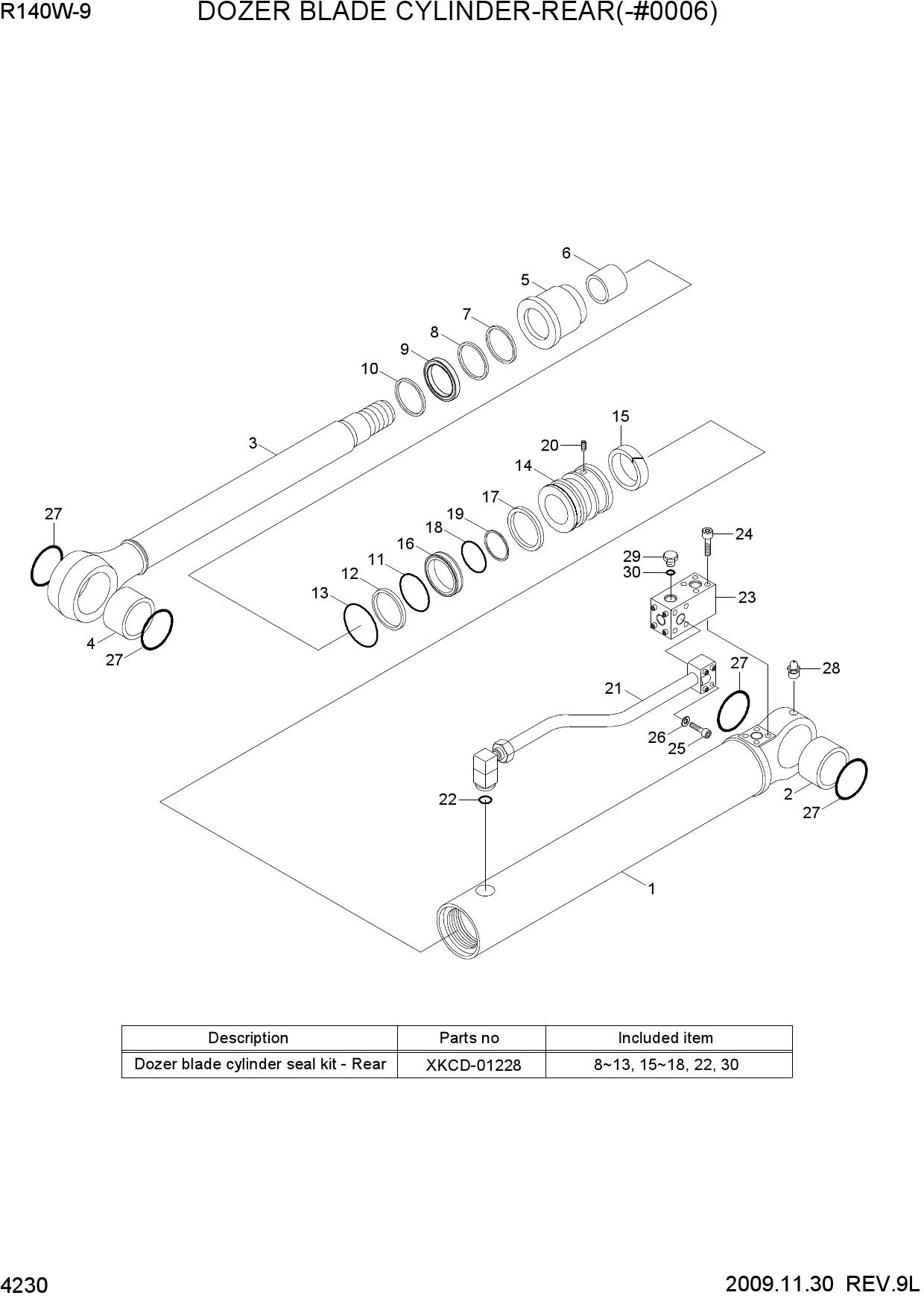

Запчасти для колесных экскаваторов Hyundai R140W-9 DOZER BLADE CYLINDER-REAR(-#0006)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 31Q4-70150 | DOZER BLADE CYL-RR,LH | |
| * | 31Q4-70160 | DOZER BLADE CYL-RR,RH | |
| 1 | XKCD-01189 | TUBE ASSY | |
| 2 | XKCD-01190 | BUSHING-PIN | |
| 3 | XKCD-01214 | ROD ASSY | |
| 4 | XKCD-01190 | BUSHING-PIN | |
| 5 | XKCD-01215 | COVER-ROD | |
| 6 | XKCD-01004 | BUSHING-ROD | |
| 7 | XKCD-01216 | RING-RETAINING | |
| K8 | XKCD-01005 | BUFFER SEAL | |
| K9 | XKCD-01217 | U-PACKING | |
| K10 | XKCD-01218 | WIPER-DUST | |
| K11 | XKCD-01198 | O-RING | |
| K12 | XKCD-01199 | RING-BACK UP | |
| K13 | XKCD-01219 | O-RING | |
| 14 | XKCD-01220 | PISTON | |
| K15 | XKCD-01202 | RING-WEAR | |
| K16 | XKCD-01203 | SEAL-PISTON | |
| K17 | XKCD-01204 | RING-DUST | |
| K18 | XKCD-00608 | O-RING | |
| 19 | XKCD-01221 | RING-BACK UP | |
| 20 | XKCD-01222 | SCREW-SET | |
| 21 | XKCD-01223 | PIPE ASSY | |
| K22 | XKCD-01207 | O-RING | |
| 23 | XKCD-01224 | VALVE ASSY-RH | |
| 23 | XKCD-01225 | VALVE ASSY-LH | |
| 24 | XKCD-01226 | BOLT-SOCKET | |
| 25 | XKCD-01212 | HEX SOCKET BOLT | |
| 26 | XKCD-00989 | SPRING WASHER | |
| 27 | XKCD-01213 | WIPER-PIN | |
| 28 | XKCD-01024 | NIPPLE-GREASE | |
| 29 | XKCD-01230 | PLUG | |
| K30 | XKCD-01231 | O-RING | |
| K | XKCD-01228 | SEAL KIT |
