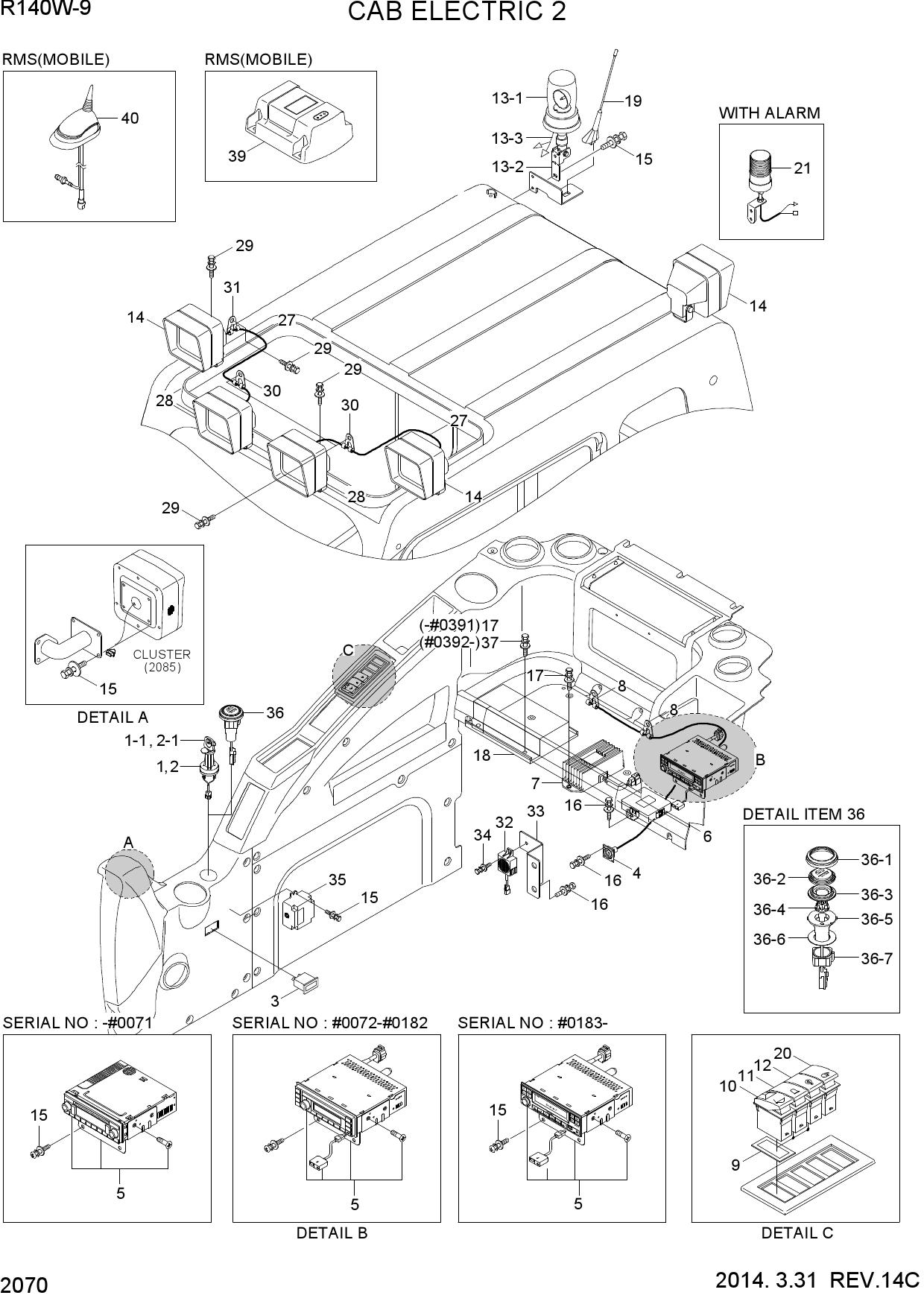

Запчасти для колесных экскаваторов Hyundai R140W-9 CAB ELECTRIC 2
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 21Q4-00070 | START KEY ASSY | |
| 1 | 21Q4-00071 | START KEY ASSY | |
| 1-1 | 21Q4-00090 | KEY-START | |
| 2 | 21Q4-00060 | START KEY ASSY | |
| 2 | 21Q4-00061 | START KEY ASSY | |
| 2-1 | 21N3-00030 | KEY-START | |
| 3 | 21MH-00660 | HOUR METER | |
| 4 | 21Q7-10901 | HARNESS-SERVICE TOOL | |
| 5 | 21Q6-30201 | MP3 & RADIO PLAYER ASSY | |
| N5 | 21Q6-15600 | RADIO & USB PLAYER | |
| 5 | 21Q8-15700 | RADIO & USB PLAYER | |
| 6 | 21Q6-30300 | CONTROL UNIT-HANDSFREE | |
| 6 | 21Q6-30240 | BLUETOOTH HANDSFREE | |
| 7 | 21Q6-20410 | CONVERTER-DC DC | |
| 8 | 21E9-00170 | CLIP-HARNESS | |
| 9 | 21E6-10460 | COVER | |
| 10 | 21Q4-22130 | SWITCH-QUICK CLAMP | |
| 10 | 21Q4-22131 | SWITCH-QUICK CLAMP | |
| 11 | 21Q4-22140 | SWITCH-BEACON | |
| 11 | 21Q4-22141 | SWITCH-BEACON | |
| 12 | 21Q4-22110 | SWITCH-OVERLOAD | |
| 12 | 21Q4-22111 | SWITCH-OVERLOAD | |
| 13 | 21Q4-30380 | BEACON LAMP ASSY | |
| 13 | 21Q4-30381 | BEACON LAMP ASSY | |
| 13-1 | 21Q4-20700 | BEACON LAMP | |
| 13-1 | 21Q4-30700 | BEACON LAMP | |
| 13-11 | 21EK-10330 | BULB-H1, 70W | |
| 13-11 | H1U 64155 | BULB-H1, 70W | |
| 13-2 | 21Q4-20600 | BRACKET-TILT | |
| 13-2 | 21Q4-31000 | BRACKET-TILT | |
| 13-3 | 21N4-02830 | HARNESS-BEACON LAMP | |
| 14 | 21QB-60700 | WORK LAMP ASSY | |
| 14-1 | S866-240650 | BULB | |
| 15 | S035-081526 | BOLT-W/WASHER | |
| 16 | S035-061526 | BOLT-W/WASHER | |
| 17 | S035-062026 | BOLT-W/WASHER | |
| 17 | S035-062026 | BOLT-W/WASHER | |
| 18 | 21Q8-32201 | CONTROL UNIT-REMOTE | |
| 18 | 21Q8-32202 | RMCU(REMOTE CNTL UNIT) | |
| 19 | 21Q8-32210 | ANTENNA-SATELLITE | |
| 19 | 21Q8-32211 | ANTENNA-SATELLITE | |
| 20 | 21Q4-22311 | SWITCH-REAR WORK LAMP | |
| 21 | 21QA-30700 | BEACON LAMP ASSY | |
| 27 | 21Q8-23100 | HARNESS-LAMP | |
| 28 | 21QB-60700 | WORK LAMP ASSY | |
| 28-1 | S866-240650 | BULB | |
| 29 | S037-102026 | BOLT-W/WASHER | |
| 30 | 25D1-10650 | CLIP ASSY | |
| 31 | 25D1-10640 | CLIP ASSY | |
| 32 | 21Q6-13400 | BUZZER-WARNING | |
| 33 | 21Q6-13420 | BRACKET WA | |
| 34 | S035-051526 | BOLT-W/WASHER | |
| 35 | 21Q6-37400 | CONTROLLER-START | |
| 36 | 21Q6-37300 | BUTTON-START | |
| N36-1 | 21Q6-37310 | CASE-FRONT | |
| N36-2 | 21Q6-37320 | COVER-SWITCH | |
| N36-3 | 21Q6-37330 | GUIDE | |
| N36-4 | 21Q6-37340 | BUTTON-PBA | |
| N36-5 | 21Q6-37350 | CASE-REAR | |
| N36-6 | 21Q6-37360 | GASKET | |
| N36-7 | 21Q6-37370 | CLAMP | |
| 37 | S035-062026 | BOLT-W/WASHER | |
| 39 | 21QA-33701 | RMCU(REMOTE CNTL UNIT) | |
| 40 | 21Q8-32220 | ANTENNA-MOBILE |
