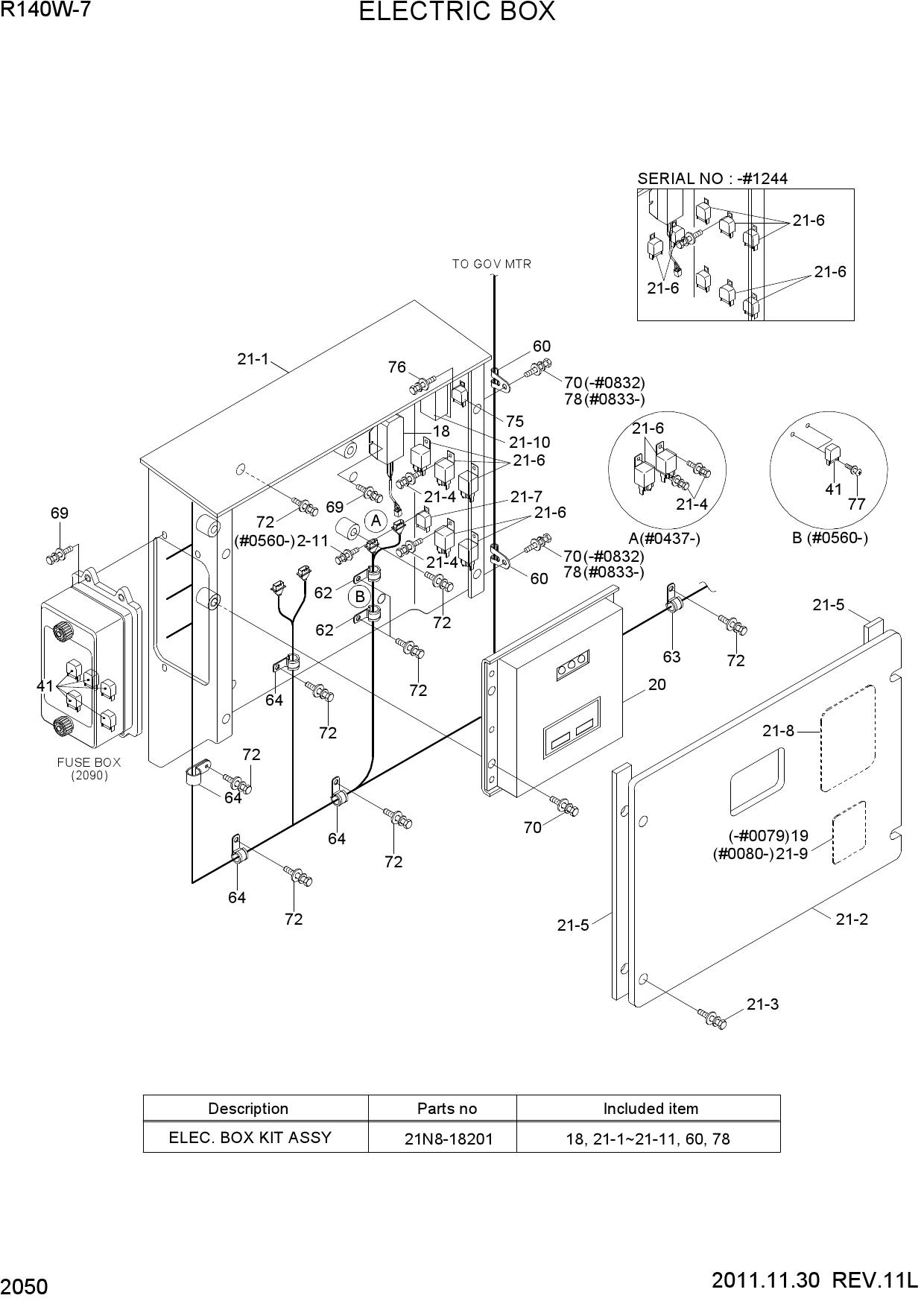

Запчасти для колесных экскаваторов Hyundai R140W-7 ELECTRIC BOX
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 18 | 21E9-4018 | PROLIX RESISTOR | |
| K18 | 21Q4-20100 | RESISTOR ASSY | |
| 19 | 21N8-12040 | DECAL-EMER CONTROL | |
| 20 | 21N4-32300 | CPU CONTROLLER | |
| 20 | 21N4-43200 | MCU(MACHINE CNTL UNIT) | |
| 20 | 21N4-32401 | MCU(MACHINE CNTL UNIT) | |
| 21 | 21N4-00700 | ELECTRIC BOX ASSY | |
| 21 | 21N4-00701 | ELECTRIC BOX ASSY | |
| 21 | 21N4-00702 | ELECTRIC BOX ASSY | |
| 21 | 21N4-00703 | ELECTRIC BOX ASSY | |
| 21-1 | 21N4-00710 | ELECTRIC BOX WA | |
| 21-1 | 21N4-00711 | ELECTRIC BOX WA | |
| 21-1 | 21N4-00712 | ELECTRIC BOX WA | |
| K21-1 | 21N4-00713 | ELECTRIC BOX WA | |
| K21-2 | 21N4-00730 | COVER ASSY | |
| K21-3 | S037-101526 | BOLT-W/WASHER | |
| 21-4 | S035-061526 | BOLT-W/WASHER | |
| 21-4 | S035-061526 | BOLT-W/WASHER | |
| 21-4 | S035-061526 | BOLT-W/WASHER | |
| K21-4 | S035-061526 | BOLT-W/WASHER | |
| K21-5 | 21N4-00740 | PAD-RUBBER | |
| 21-6 | 21E4-0011 | RELAY ASSY | |
| 21-6 | 21E4-0011 | RELAY ASSY | |
| K21-6 | 21E4-0011 | RELAY ASSY | |
| K21-6 | 22FV-24110 | RELAY | |
| 21-7 | E125-2545 | RELAY-5P | |
| K21-7 | 21N4-46900 | RELAY-5P | |
| 21-8 | 21N4-00750 | DECAL-RELAY | |
| 21-8 | 21N4-00752 | DECAL-RELAY | |
| 21-8 | 21N4-00754 | DECAL-RELAY | |
| K21-8 | 21N4-00755 | DECAL-RELAY | |
| K21-9 | 21N8-12040 | DECAL-EMER CONTROL | |
| K21-10 | 21N4-00780 | TIMER-STOP LAMP | |
| K21-11 | S035-051526 | BOLT-W/WASHER | |
| 41 | 24L1-05100 | RELAY-5P | |
| 41 | 24L1-05100 | RELAY-5P | |
| K60 | S593-000902 | CLIP-HARNESS | |
| 62 | S543-160002 | CLAMP-TUBE | |
| 63 | S543-240002 | CLAMP-TUBE | |
| 64 | S543-280002 | CLAMP-TUBE | |
| 69 | S035-062022 | BOLT-W/WASHER | |
| 70 | S035-082022 | BOLT-W/WASHER | |
| 70 | S035-082022 | BOLT-W/WASHER | |
| 72 | S037-102022 | BOLT-W/WASHER | |
| 75 | 21E4-0011 | RELAY ASSY | |
| 76 | S035-061522 | BOLT-W/WASHER | |
| 77 | S131-051546 | SCREW-W/WASHER | |
| K78 | S035-081526 | BOLT-W/WASHER | |
| K | 21N8-18200 | ELEC. BOX KIT ASSY | |
| K | 21N8-18201 | ELEC.BOX KIT ASSY |
