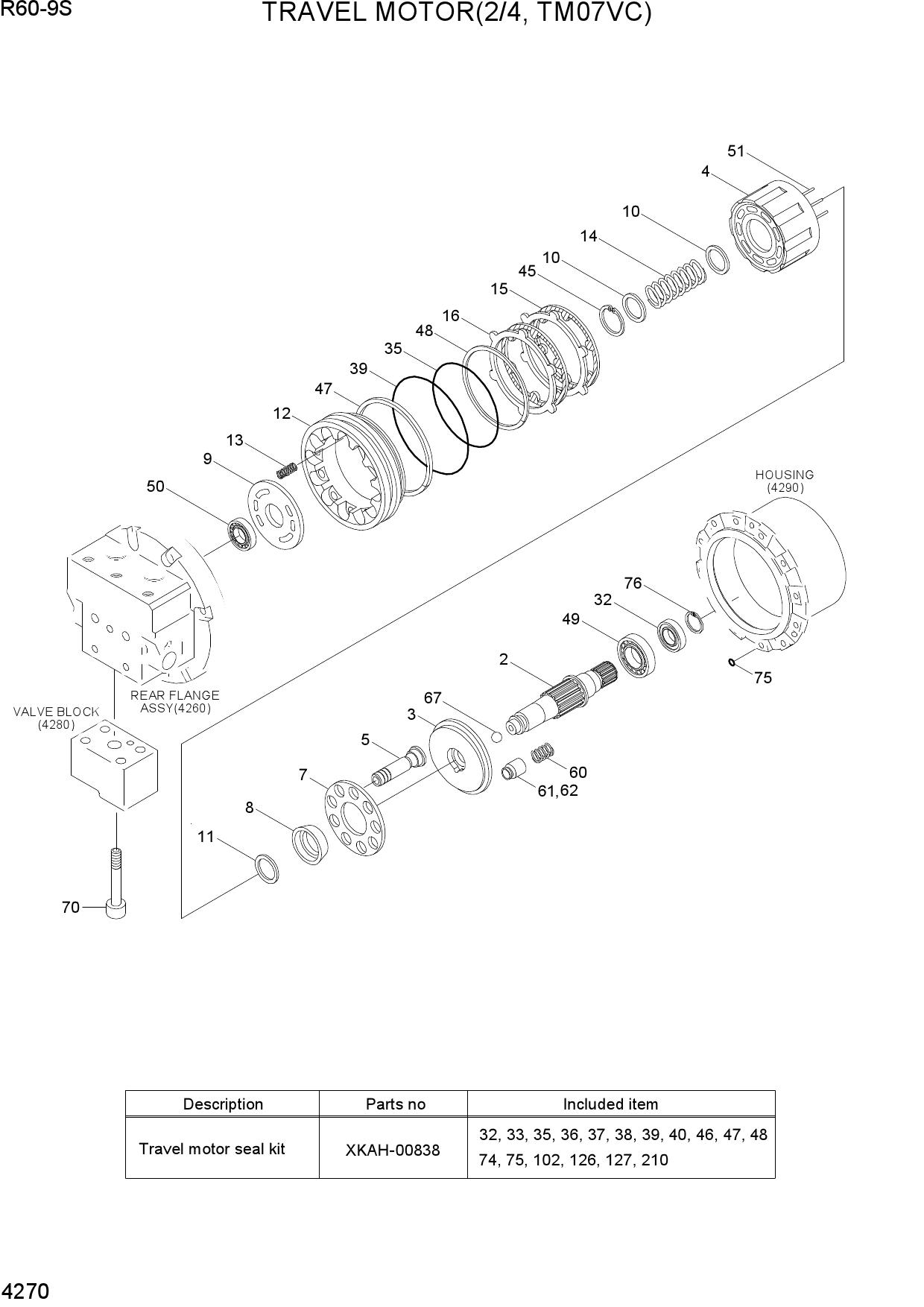

Запчасти для гусеничных экскаваторов Hyundai R60-9S TRAVEL MOTOR(2/4, TM07VC)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| N*-2 | XKAH-00753 | TRAVEL MOTOR UNIT | |
| *-21 | XKAH-00752 | C/BLOCK & PISTON KIT | |
| 4 | XKAH-00831 | BLOCK-CYLINDER | |
| 5 | XKAH-00828 | PISTON ASSY | |
| 7 | XKAH-00747 | PLATE-RETAINER | |
| 8 | XKAH-00746 | BALL-THRUST | |
| 10 | XKAH-00745 | WASHER | |
| 11 | XKAH-00744 | WASHER-COLLAR | |
| 14 | XKAH-00743 | SPRING | |
| 51 | XKAH-00742 | ROLLER | |
| *-22 | XKAH-00741 | PISTON ASSY-2 SPEED | |
| 60 | XKAH-00738 | SPRING | |
| N61 | XKAH-00740 | PISTON | |
| N62 | XKAH-00739 | SHOE | |
| 2 | XKAH-00832 | SHAFT-MAIN | |
| 3 | XKAH-00736 | PLATE-SWASH | |
| 9 | XKAH-00833 | PLATE-TIMING | |
| 12 | XKAH-00734 | PISTON-PARKING | |
| 13 | XKAH-00733 | SPRING | |
| 15 | XKAH-00732 | PLATE-FRICTION | |
| 16 | XKAH-00731 | PLATE-MATING | |
| K32 | XKAH-00730 | SEAL-OIL | |
| K35 | XKAH-00729 | O-RING | |
| K39 | XKAH-00728 | O-RING | |
| 45 | XKAH-00727 | RING-SNAP | |
| K47 | XKAH-00726 | RING-BACK UP | |
| K48 | XKAH-00725 | RING-BACK UP | |
| 49 | XKAH-00724 | BEARING-ROLLER | |
| 50 | XKAH-00723 | BEARING-BALL | |
| 67 | XKAH-00722 | PIVOT | |
| 70 | XKAH-00299 | BOLT-SOCKET | |
| K75 | XKAH-00262 | O-RING | |
| 76 | XKAH-00721 | RING-SNAP | |
| K | XKAH-00838 | SEAL KIT |
