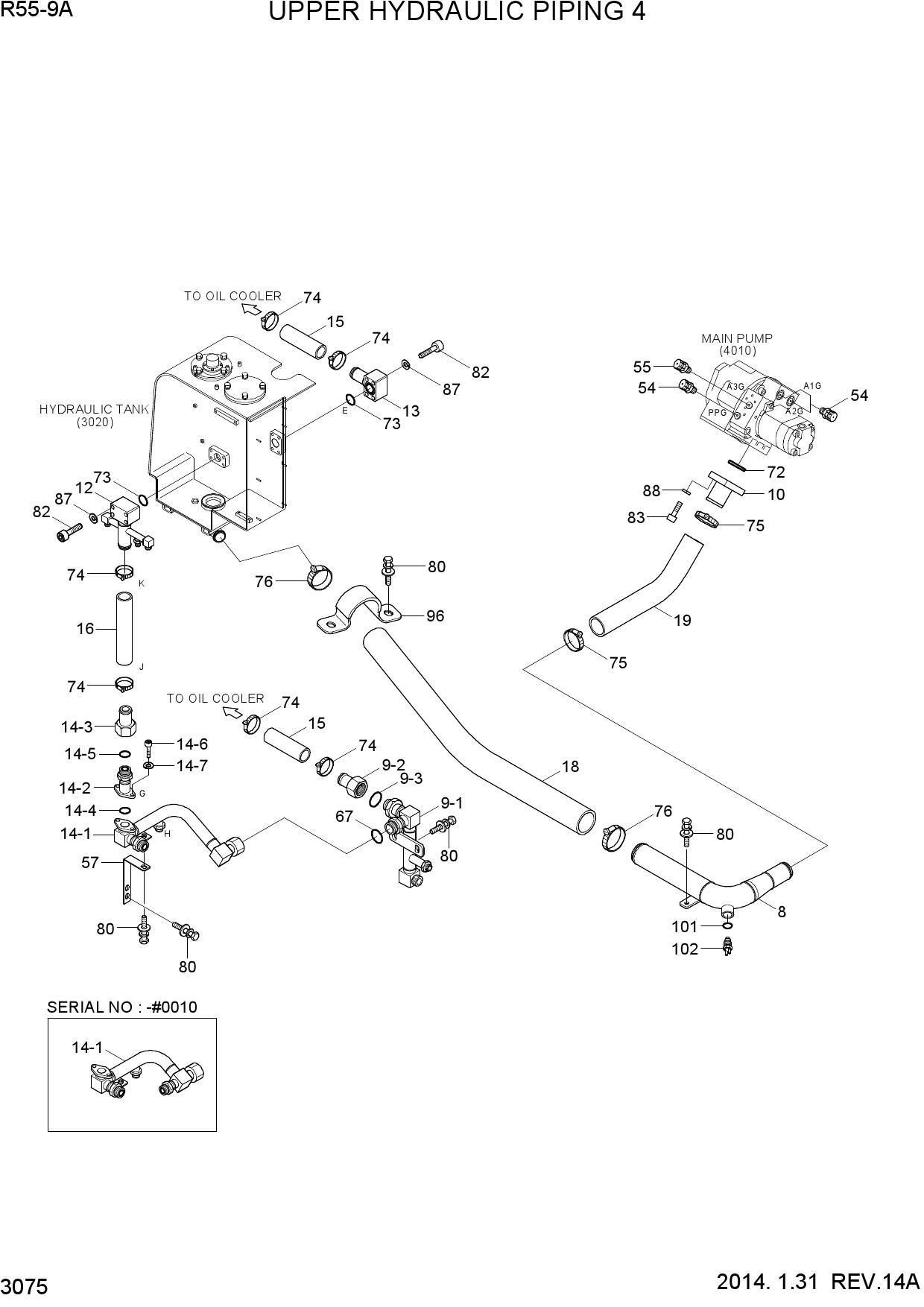

Запчасти для гусеничных экскаваторов Hyundai R55-9A UPPER HYDRAULIC PIPING 4
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 8 | 31M9-10240 | PIPE-SUCTION | |
| 9 | 31M9-12231 | RETURN PIPE SUB ASSY | |
| 9-1 | 31M9-10262 | PIPE ASSY | |
| 9-2 | 31M5-52121 | VALVE-CHECK | |
| 9-3 | S631-029004 | O-RING | |
| 10 | 31M9-10760 | PIPE ASSY | |
| 12 | 31M9-10280 | PIPE ASSY | |
| 13 | 31M8-10460YL | PIPE ASSY | |
| 14 | 31M9-12211 | RETURN PIPE SUB ASSY | |
| 14 | 32M9-12210 | RETURN PIPE SUB ASSY | |
| 14-1 | 31M9-11470 | PIPE ASSY | |
| 14-1 | 32M9-11470 | PIPE ASSY | |
| 14-2 | 31M9-10780 | FLANGE ASSY | |
| 14-3 | 31M5-52111 | VALVE-CHECK | |
| 14-4 | S631-029004 | O-RING | |
| 14-5 | Y171-024004 | O-RING | |
| 14-6 | S109-100406 | BOLT-SOCKET | |
| 14-7 | S411-100006 | WASHER-SPRING | |
| 15 | P760-052015 | HOSE-RUBBER | |
| 16 | P760-052016 | HOSE-RUBBER | |
| 18 | 31M9-10230 | HOSE-SUCTION | |
| 19 | 31M8-10310 | HOSE-SUCTION | |
| 54 | 31EK-11130 | COUPLING-SCREW | |
| 55 | 31M6-50860 | COUPLING-SCREW | |
| 57 | 31M8-10661GY | BRACKET-PIPE | |
| 67 | S621-021001 | O-RING | |
| 72 | S631-045001 | O-RING | |
| 73 | S632-035001 | O-RING | |
| 74 | 31Q6-10810 | CLAMP-BAND,T-BOLT | |
| 75 | 31Q6-10830 | CLAMP-BAND,T-BOLT | |
| 76 | 31Q6-10840 | CLAMP-BAND,T-BOLT | |
| 80 | S037-102526 | BOLT-W/WASHER | |
| 82 | S109-100606 | BOLT-SOCKET | |
| 83 | S109-120356 | BOLT-SOCKET | |
| 87 | S411-100006 | WASHER-SPRING | |
| 88 | S411-120006 | WASHER-SPRING | |
| 96 | 31M9-10910 | CLAMP-HOSE | |
| 101 | 21EA-50260 | PACKING-TEMP SW | |
| 102 | 21EN-40100 | SENDER-TEMP |
