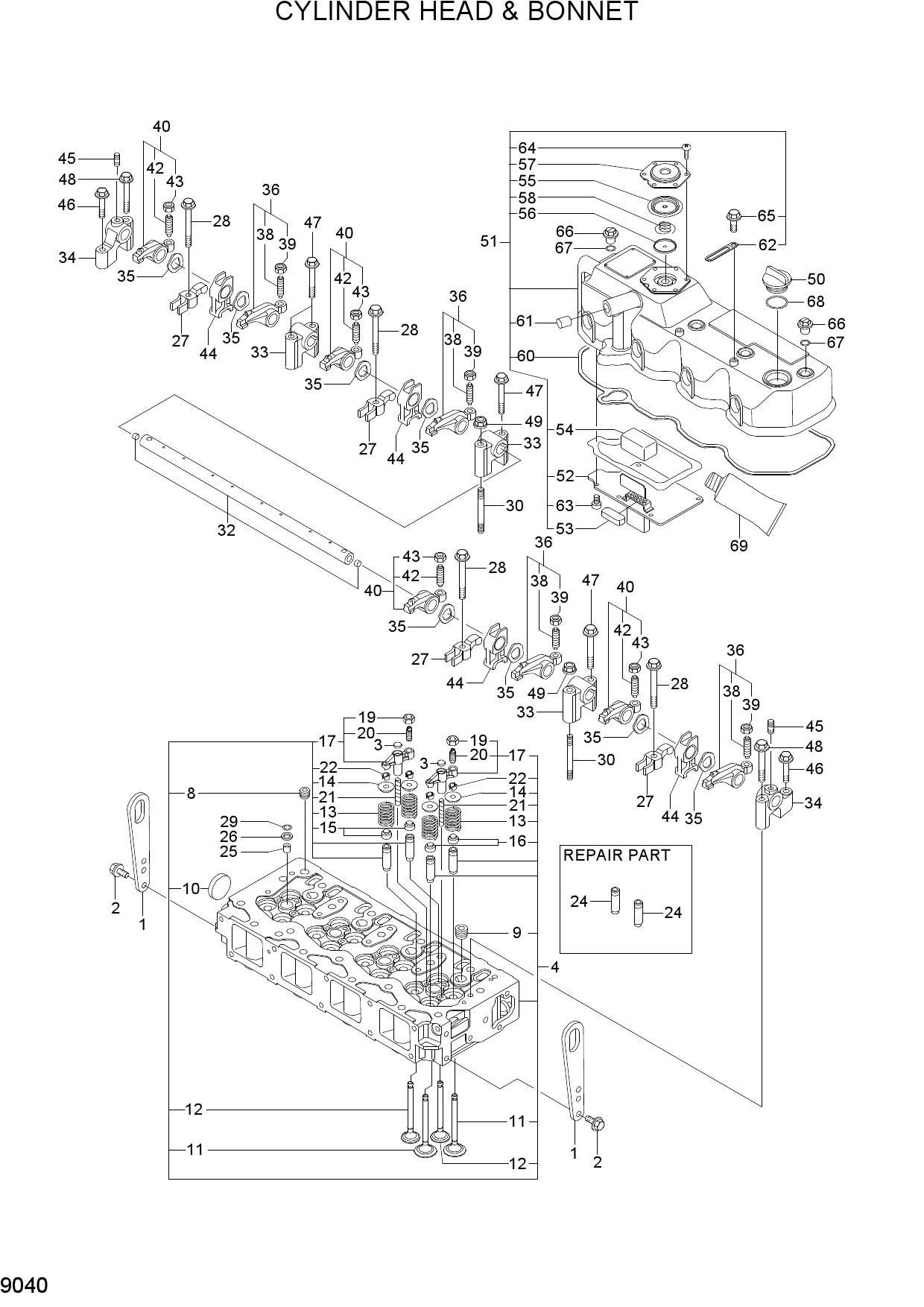

Запчасти для гусеничных экскаваторов Hyundai R55-7A CYLINDER HEAD & BONNET
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | XJAU-00047 | LIFTER-ENGINE | |
| 2 | XJAU-00029 | BOLT-PLATED | |
| 3 | XJAU-00048 | SEAT A-VALVE BRIDGE | |
| 4 | XJAU-00861 | HEAD ASSY-CYLINDER | |
| 8 | XJAU-00052 | PLUG-SCREW | |
| 9 | XJAU-00007 | PLUG-SCREW | |
| 10 | XJAU-00053 | PLUG | |
| 11 | XJAU-00054 | VAVLE-INTAKE | |
| 12 | XJAU-00055 | VALVE-EXHAUST | |
| 13 | XJAU-00056 | SPRING-VALVE | |
| 14 | XJAU-00057 | RETAINER-SPRING | |
| 15 | XJAU-00862 | SEAL-VALVE STEM | |
| 16 | XJAU-00058 | SEAL-VALVE STEM,INTAKE | |
| 17 | XJAU-00479 | BRIDGE ASSY-VALVE | |
| 19 | XJAU-00335 | NUT | |
| 20 | XJAU-00062 | SCREW-VALVE BRIDGE | |
| 21 | XJAU-00051 | GUIDE-VALVE BRIDGE | |
| 22 | XJAU-00063 | COTTER ASSY | |
| 24 | XJAU-00050 | GUIDE-VALVE | |
| 25 | XJAU-00098 | PROTECTOR-NOZZLE | |
| 26 | XJAU-00064 | SEAT-NOZZLE | |
| 27 | XJAU-00081 | RETAINER-FI VALVE | |
| 28 | XJAU-00082 | FLANGE BOLT-RETAINER | |
| 29 | XJAU-00065 | O-RING | |
| 30 | XJAU-00066 | BOLT | |
| 31 | XJAU-00067 | SUPPORT CMP | |
| 32 | XJAU-00068 | SHAFT-ROCKER ARM | |
| 33 | XJAU-00069 | SUPPORT A | |
| 34 | XJAU-00070 | SUPPORT B | |
| 35 | XJAU-00072 | WASHER-WAVE | |
| 36 | XJAU-00073 | ARM ASSY-ROCKER | |
| 38 | XJAU-00074 | SCREW-VALVE | |
| 39 | XJAU-00335 | NUT | |
| 40 | XJAU-00076 | ARM ASSY-ROCKER | |
| 42 | XJAU-00074 | SCREW-VALVE | |
| 43 | XJAU-00335 | NUT | |
| 44 | XJAU-00077 | PEDESTAL-RETAINER | |
| 45 | XJAU-00078 | STUD-PLATED | |
| 46 | XJAU-00031 | BOLT-PLATED | |
| 47 | XJAU-00080 | BOLT-PLATED | |
| 48 | XJAU-00080 | BOLT-PLATED | |
| 49 | XJAU-00083 | NUT | |
| 50 | XJAU-00034 | COVER-FILLER | |
| 51 | XJAU-00863 | BONNET ASSY | |
| 52 | XJAU-00480 | BAFFLE PLATE | |
| 53 | XJAU-00481 | BAFFLE | |
| 54 | XJAU-00087 | BAFFLE | |
| 55 | XJAU-00482 | DIAPHRAGM-BREATHER | |
| 56 | XJAU-00483 | PLATE-CENTER | |
| 57 | XJAU-00484 | PLATE-BREATHER | |
| 58 | XJAU-00485 | SPRING-DIAPHRAGM | |
| 60 | XJAU-00864 | GASKET-BONNET | |
| 61 | XJAU-00094 | PLUG | |
| 62 | XJAU-00865 | CLIP | |
| 63 | XJAU-00095 | SCREW-TAPPING | |
| 64 | XJAU-00095 | SCREW-TAPPING | |
| 65 | XJAU-00178 | BOLT | |
| 66 | XJAU-00096 | KNOB-BONNET | |
| 67 | XJAU-00065 | O-RING | |
| 68 | XJAU-00037 | O-RING | |
| 69 | XJAU-00678 | GASKET-LIQUID |
