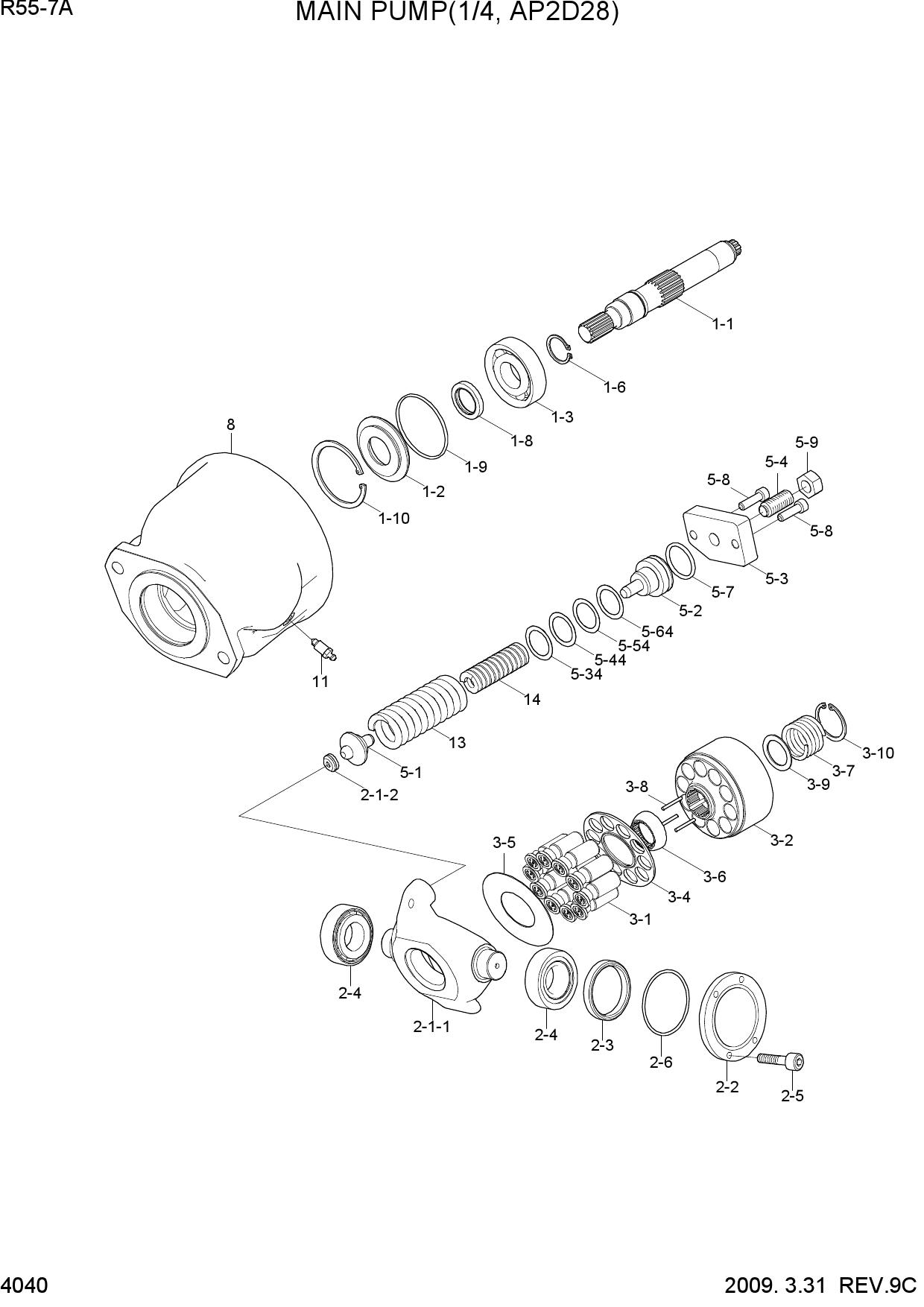

Запчасти для гусеничных экскаваторов Hyundai R55-7A MAIN PUMP(1/4, AP2D28)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 31M8-10021 | MAIN PUMP | |
| * | 31M8-10011 | MAIN PUMP | |
| 1 | XJDD-00786 | SHAFT ASSY | |
| 1-1 | XJDD-00796 | SHAFT | |
| 1-2 | XJDD-00797 | SEALCASE | |
| 1-3 | XJDD-00798 | BEARING | |
| 1-6 | XJDD-00799 | RETAINING RING(C TYPE) | |
| 1-8 | XJDD-00800 | OIL SEAL | |
| 1-9 | XJDD-00801 | O-RING | |
| 1-10 | XJDD-00802 | RETAINING RING(C TYPE) | |
| 2 | XJDD-00787 | HANGER ASSY | |
| 2-1 | XJDD-00803 | HANGER | |
| 2-1-1 | XJDD-01023 | HANGER | |
| 2-1-2 | XJDD-01024 | BUSH | |
| 2-2 | XJDD-00804 | COVER | |
| 2-3 | XJDD-00805 | SPACER | |
| 2-4 | XJDD-00806 | BEARING | |
| 2-5 | XJDD-00807 | SCREW-HEX SO HD CAP | |
| 2-6 | XJDD-00808 | O-RING | |
| 3 | XJDD-00865 | ROTARY GROUP | |
| 3 | XJDD-00788 | ROTARY GROUP | |
| 3-1 | XJDD-00809 | PISTON ASSY | |
| 3-2 | XJDD-00810 | BLOCK-CYLINDER | |
| 3-4 | XJDD-00866 | RETAINER | |
| 3-4 | XJDD-00811 | RETAINER | |
| 3-5 | XJDD-00812 | PLATE | |
| 3-6 | XJDD-00813 | GUIDE | |
| 3-7 | XJDD-00814 | SPRING | |
| 3-8 | XJDD-00044 | PIN-PARALLEL | |
| 3-9 | XJDD-00815 | SPRING SEAT | |
| 3-10 | XJDD-00816 | RETAINING RING(C TYPE) | |
| 5 | XJDD-01025 | SPRING SEAT ASSY | |
| 5 | XJDD-00867 | SPRING SEAT ASSY | |
| 5-1 | XJDD-00828 | SPRING SEAT | |
| 5-2 | XJDD-01026 | SPACER-SPRING | |
| 5-2 | XJDD-00868 | SPRING SEAT | |
| 5-3 | XJDD-00830 | COVER | |
| 5-4 | XJDD-00731 | SCREW-ADJUSTING | |
| 5-7 | XJDD-00831 | O-RING | |
| 5-8 | XJDD-00733 | SCREW-HEX S/HD CAP | |
| 5-9 | XJDD-00734 | NUT-HEX | |
| 5-34 | XJDD-00832 | SHIM | |
| 5-44 | XJDD-00833 | SHIM | |
| 5-54 | XJDD-00834 | SHIM | |
| 5-64 | XJDD-00835 | SHIM | |
| 8 | XJDD-00793 | HOUSING | |
| 11 | XJDD-00010 | VALVE-AIR VENT | |
| 13 | XJDD-00884 | SPRING | |
| 14 | XJDD-00885 | SPRING |
