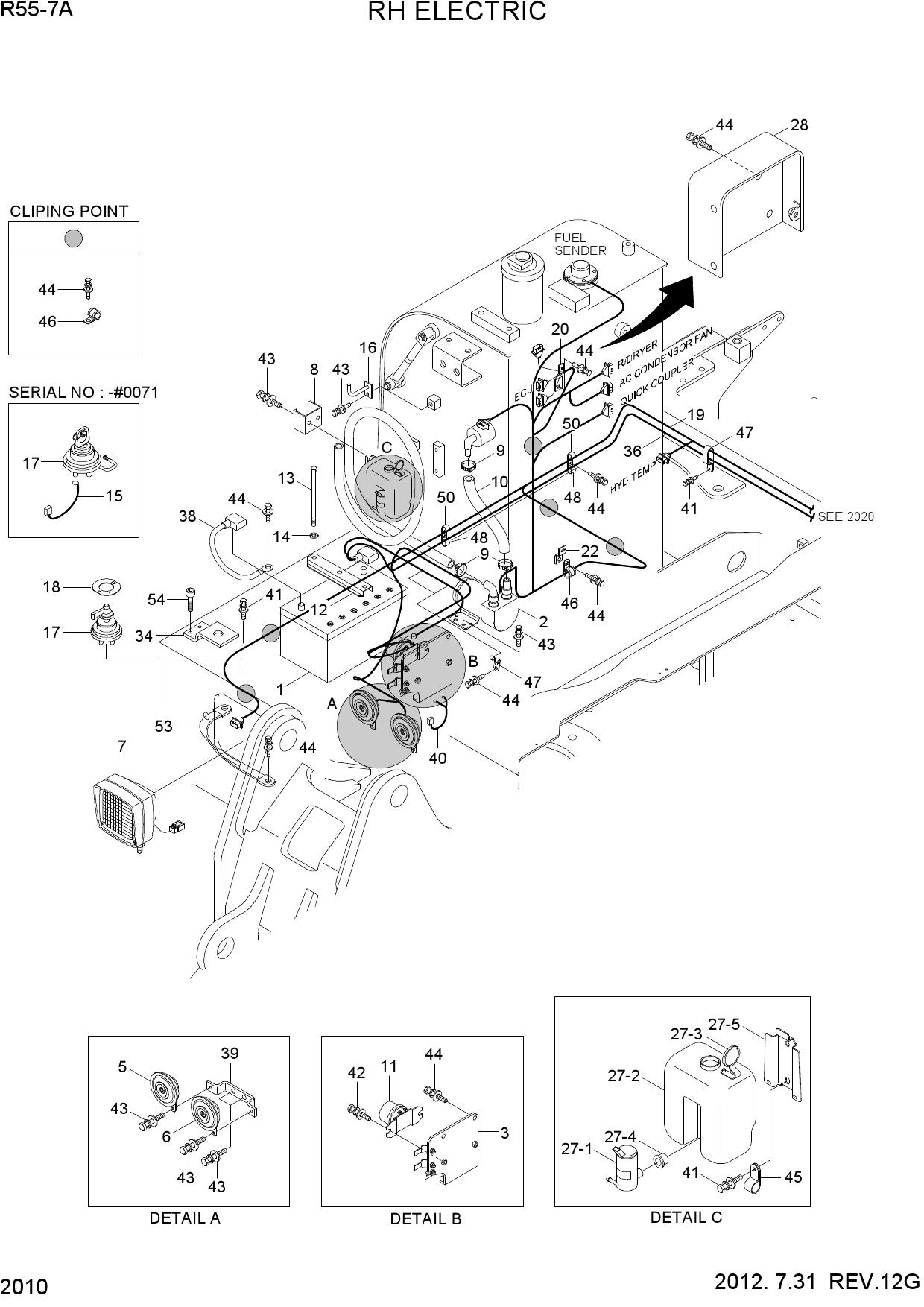

Запчасти для гусеничных экскаваторов Hyundai R55-7A RH ELECTRIC
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 21E6-20270 | BATTERY | |
| 2 | 21M8-50052 | FUEL FILLER PUMP KIT | |
| 3 | 21M8-03041 | PLATE-CLIP | |
| 5 | 21M8-00080 | HORN-LOW | |
| 5 | 21M8-00081 | HORN-LOW | |
| 6 | 21M8-00070 | HORN-HIGH | |
| 6 | 21M8-00071 | HORN-HIGH | |
| 7 | 21M8-01300 | LAMP-WORK | |
| 8 | 21N4-00770 | CLIP | |
| 9 | S520-032000 | CLAMP-HOSE | |
| 10 | 21M8-01970 | HOSE-OUTLET | |
| 11 | 21M6-54100 | RELAY-BATTERY | |
| 11 | 21M9-54100 | RELAY-BATTERY | |
| 12 | 21N6-21170 | BRACKET-BATTERY | |
| 13 | S017-102656 | BOLT-HEX | |
| 14 | S411-100006 | WASHER-SPRING | |
| 15 | 21N8-40170 | HARNESS-EXTENSION | |
| 16 | 21M8-01951 | PLATE | |
| 17 | 21N4-10441 | SWITCH-MASTER | |
| 17 | 21L7-10500 | SWITCH-MASTER | |
| 17 | 21LM-10501 | SWITCH-MASTER | |
| 17-1 | 21N4-10441K | KEY-MASTER SWITCH | |
| 18 | 21N4-10451 | DECAL-MASTER SWITCH | |
| 18 | 21LD-34180 | DECAL-MASTER SWITCH | |
| 18 | 21N5-40370 | DECAL-MASTER SW | |
| 19 | 21M8-32102 | HARNESS-MAIN | |
| 19 | 21M8-32103 | HARNESS-MAIN | |
| 19-1 | 21N4-01320 | LINK-FUSIBLE(60A) | |
| 19-2 | 21N4-01311 | LINK-FUSIBLE(30A) | |
| 19-3 | 21EA-50550 | DIODE | |
| 20 | 21N5-40340 | CLIP-METAL | |
| 22 | 21N4-01130 | PLATE-CLIP | |
| 27 | 21M8-00090 | WASHER TANK ASSY(12V) | |
| 27-1 | 21M8-00100 | MOTOR | |
| 28 | 21M8-32600 | ECU BOX ASSY | |
| 34 | 21M8-01913 | PLATE | |
| 36 | 21M8-03911 | CABLE(BATT(+)-STARTER) | |
| 38 | 21M8-32410 | CABLE(BATT-EARTH) | |
| 39 | 21M8-01630 | PLATE | |
| 40 | 21M8-02120 | HARNESS-EXT.RELAY | |
| 41 | S035-062026 | BOLT-W/WASHER | |
| 42 | S035-083026 | BOLT-W/WASHER | |
| 43 | S035-081526 | BOLT-W/WASHER | |
| 44 | S037-102026 | BOLT-W/WASHER | |
| 45 | S593-000752 | CLIP-HARNESS | |
| 46 | S593-000902 | CLIP-HARNESS | |
| 46 | S593-000802 | CLIP-HARNESS | |
| 47 | 21E9-00170 | CLIP-HARNESS | |
| 48 | 31L7-10190 | CLAMP-TUBE | |
| 50 | 31L7-10200 | CLAMP-TUBE | |
| 53 | 21M5-51200 | STRAP-EARTH | |
| 54 | S109-060256 | BOLT-SOCKET |
