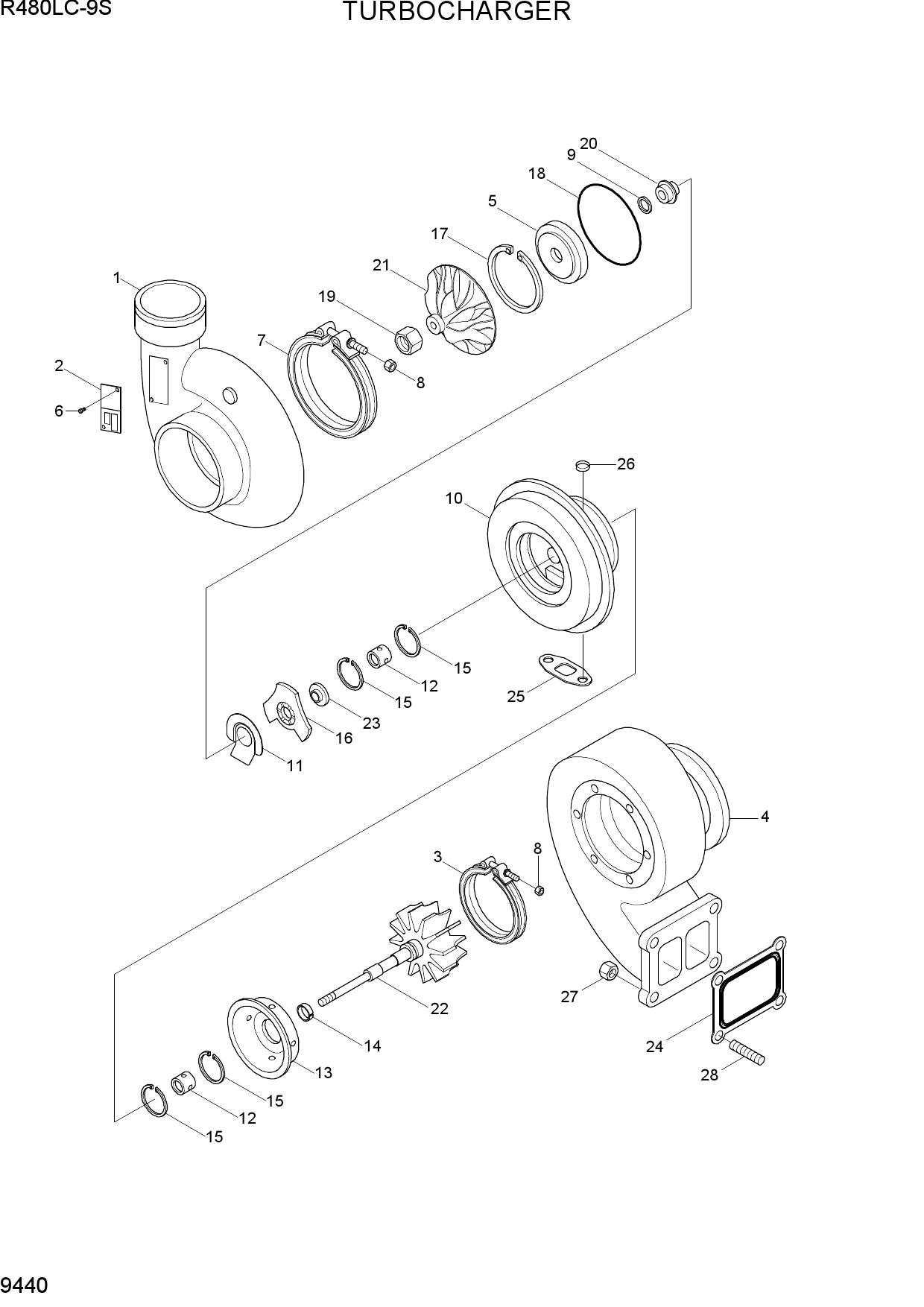

Запчасти для гусеничных экскаваторов Hyundai R480LC-9S TURBOCHARGER
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 4024967 | TURBOCHARGER KIT | |
| N*-1 | 3593606 | TURBOCHARGER | |
| 1 | 3591290 | HOUSING-COMPRESSOR | |
| N2 | 3525562 | DATAPLATE | |
| 3 | 3595763 | CLAMP-V BAND | |
| 4 | 3536942 | HOUSING-TURBINE | |
| 5 | 3528096 | PLATE-OIL SEAL | |
| 6 | 3519163 | SCREW-DRIVE | |
| 7 | 3529852 | CLAMP-V BAND | |
| 8 | 3529372 | NUT-REGULAR HEX | |
| 9 | 3758848 | SEAL-SPLIT RING | |
| 10 | 3535575 | HOUSING-TUR BEARING | |
| 11 | 3528094 | BAFFLE-OIL | |
| 12 | 3534833 | BEARING-TURBO | |
| 13 | 3533038 | SHIELD-HEAT | |
| 14 | 3521441 | SEAL-SPLIT RING | |
| 15 | 3709510 | RING-RETAINING | |
| 16 | 3591655 | BEARING-TUR THRUST | |
| 17 | 3723863 | RING-RETAINING | |
| 18 | 3762915 | O-RING | |
| 19 | 3760250 | NUT-LOCK | |
| 20 | 3502231 | SLINGER-OIL | |
| 21 | 3593686 | IMPELLER | |
| 22 | 3535983 | SHAFT & WHEEL | |
| 23 | 3534109 | COLLAR-THRUST | |
| 24 | 3088984 | GASKET-TURBO | |
| 25 | 3899343 | GASKET-TURBO | |
| 26 | 3037537 | O-RING | |
| 27 | 3818824 | NUT-HEX FLANGE | |
| 28 | 3095798 | STUD | |
| N* | 4024970 | TURBO REPAIR KIT | |
| 3 | 3535399 | CLAMP-V BAND | |
| 7 | 3529852 | CLAMP-V BAND | |
| 8 | 3529372 | NUT-REGULAR HEX | |
| 9 | 3758848 | SEAL-SPLIT RING | |
| 12 | 3534833 | BEARING-TURBO | |
| 14 | 3521441 | SEAL-SPLIT RING | |
| 15 | 3709510 | RING-RETAINING | |
| 16 | 3532807 | BEARING-TURBINE THRUST | |
| 17 | 3723863 | RING-RETAINING | |
| 18 | 3762915 | O-RING | |
| 24 | 3088984 | GASKET-TURBO | |
| 25 | 3899343 | GASKET-TURBO | |
| 26 | 3037537 | O-RING |
