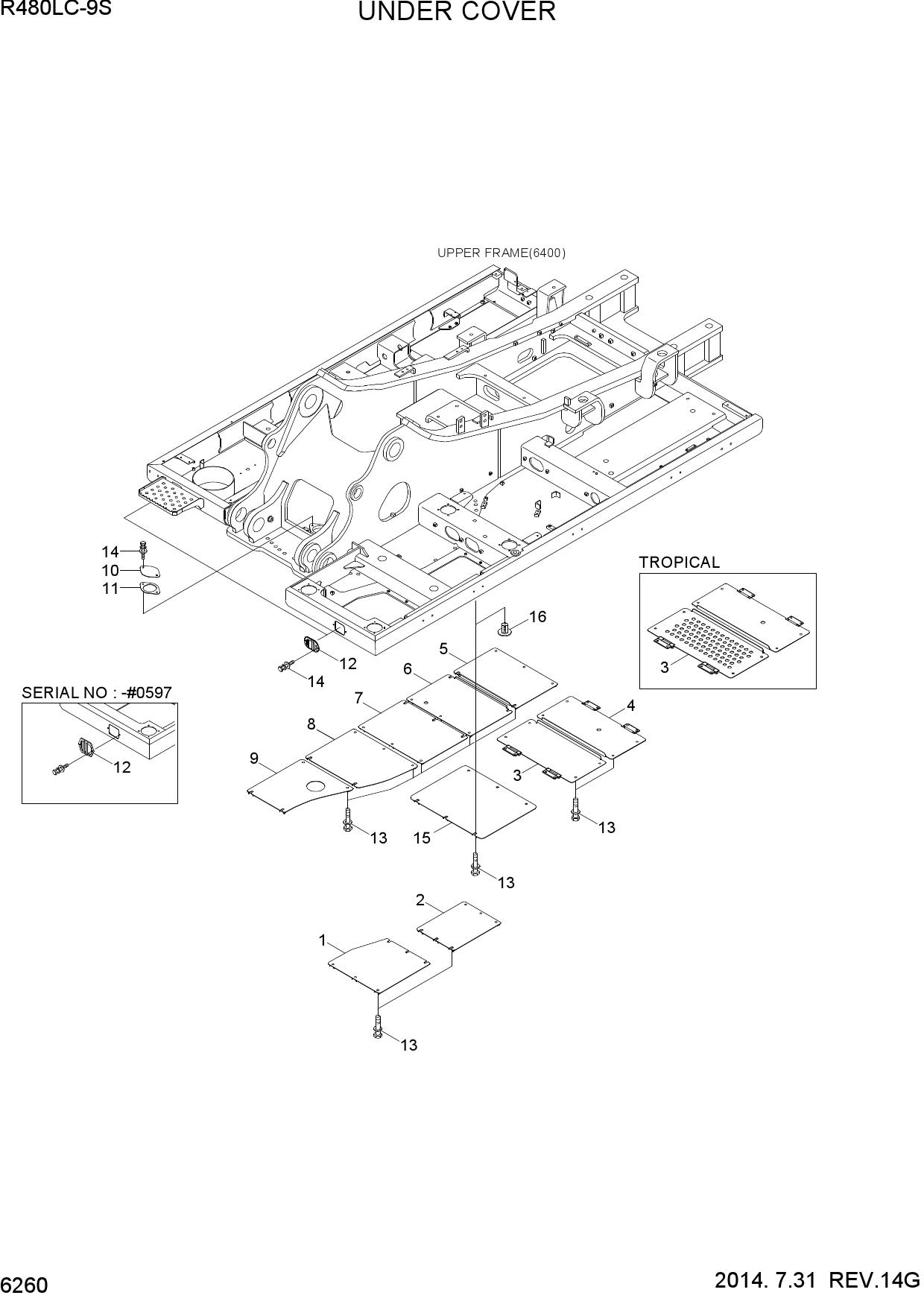

Запчасти для гусеничных экскаваторов Hyundai R480LC-9S UNDER COVER
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 41QB-10121 | UNDER COVER-CABIN | |
| 2 | 41QB-10131 | UNDER COVER-CABIN | |
| 3 | 41QB-10053 | UNDER COVER-ENGINE | |
| 3 | 41QB-10320 | UNDER COVER-ENGINE | |
| 4 | 41QB-10063 | UNDER COVER-ENGINE | |
| 5 | 41QB-10111 | UNDER COVER-PUMP | |
| 6 | 41QB-10091 | UNDER COVER-PUMP | |
| 7 | 41QB-10031 | UNDER COVER-H/TANK | |
| 8 | 41QB-10180 | UNDER COVER-F/TANK | |
| 9 | 41QB-10171 | UNDER COVER-F/TANK | |
| 10 | 41N6-10100 | COVER | |
| 11 | 41E9-1306 | SEAL | |
| 12 | 43Q8-15290 | GUARD-LAMP | |
| 12 | 41K4-10500GG | GUARD-LAMP | |
| 13 | 41Q8-60030 | BOLT-W/WASHER | |
| 13 | 41Q8-60030 | BOLT-W/WASHER | |
| 14 | S037-102556 | BOLT-W/WASHER | |
| 15 | 41QB-10041 | UNDER COVER-MCV | |
| 16 | 41QA-40150 | CAP-HEX |
