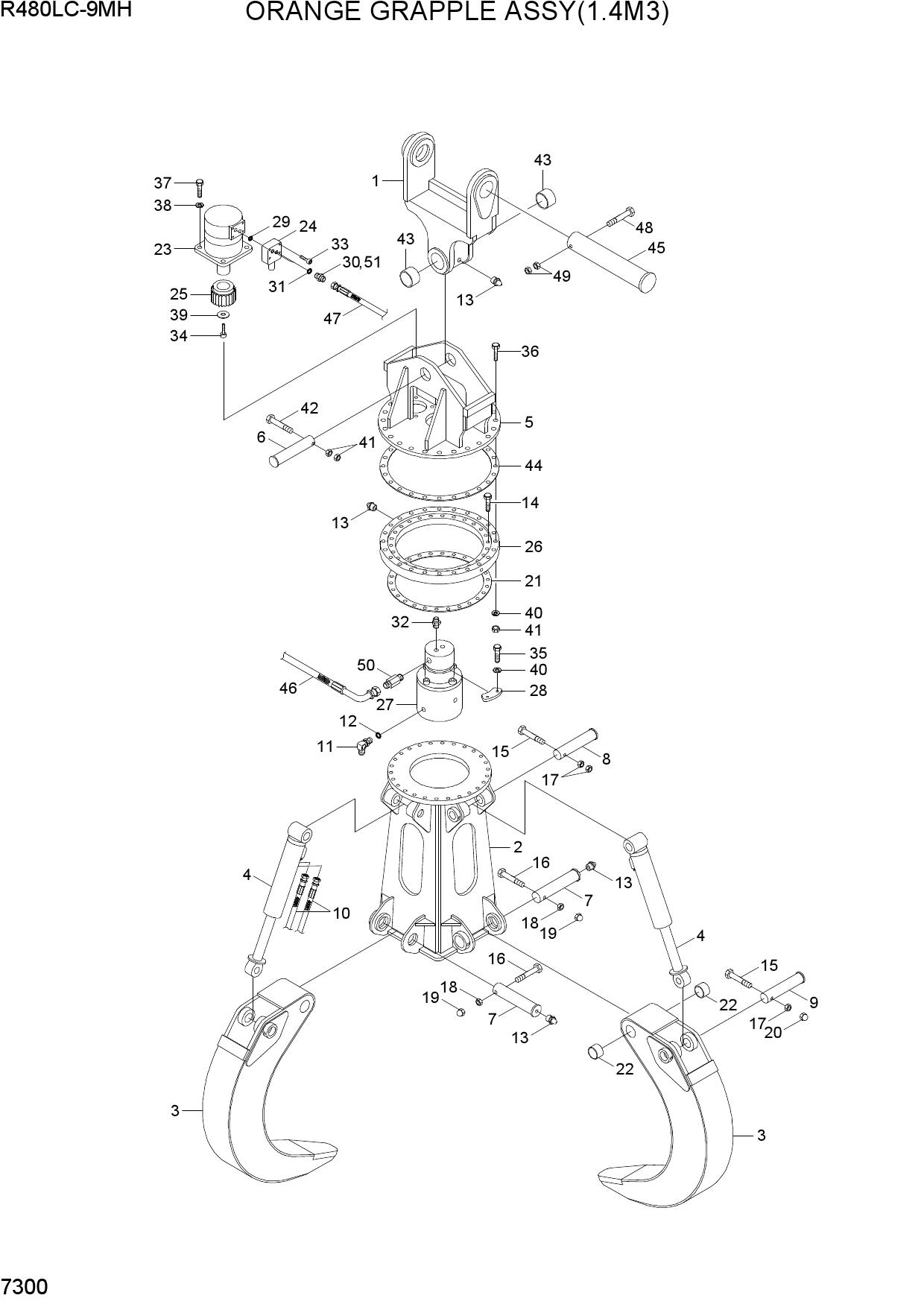

Запчасти для гусеничных экскаваторов Hyundai R480LC-9MH ORANGE GRAPPLE ASSY(1.4M3)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 67QB-37100 | GRAPPLE ASSY | |
| 1 | XKBN-00786 | CONNECT ASSY | |
| 2 | XKBN-00776 | BODY | |
| 3 | XKBN-00777 | GRAB ASSY | |
| 4 | XKBN-00779 | CYLINDER ASSY-HYD | |
| 5 | XKBN-00787 | FRAME-ROTATE | |
| 6 | XKBN-00781 | PIN-JOINT | |
| 7 | XKBN-00783 | PIN-BODY | |
| 8 | XKBN-00782 | PIN-CYL UP | |
| 9 | XKBN-00784 | PIN-DOWN | |
| 10 | XKBN-00692 | HOSE ASSY | |
| 11 | P020-110002 | ELBOW-90 | |
| 12 | XKBN-00539 | O-RING | |
| 13 | XKBN-00009 | NIPPLE-GREASE | |
| 14 | XKBN-00703 | BOLT-HEX | |
| 15 | XKBN-00704 | BOLT-HEX | |
| 16 | XKBN-00199 | BOLT-HEX | |
| 17 | XKBN-00717 | NUT | |
| 18 | XKBN-00718 | NUT-HEX | |
| 19 | XKBN-00723 | NUT-CAP | |
| 20 | XKBN-00722 | NUT-CAP | |
| 21 | XKBN-00791 | SUPPORT-STEEL | |
| 22 | XKBN-00766 | BUSHING-STEEL | |
| 23 | XKBN-00789 | MOTOR | |
| 24 | XKBN-00780 | VALVE-RELIEF | |
| 25 | XKBN-00790 | GEAR-PINION | |
| 26 | XKBN-00788 | BEARING-SWING | |
| 27 | XKBN-00778 | JOINT-CENTER | |
| 28 | XKBN-00793 | STOPPER-STEEL | |
| 29 | XKBN-00552 | O-RING | |
| 30 | P010-110015 | CONNECTOR | |
| 31 | XKBN-00700 | O-RING | |
| 32 | P010-430005 | CONNECTOR | |
| 33 | XKBN-00712 | BOLT-SOCKET | |
| 34 | XKBN-00716 | BOLT-HEX. HEAD | |
| 35 | XKBN-00706 | BOLT-HEX | |
| 36 | XKBN-00708 | BOLT-HEX | |
| 37 | XKBN-00702 | BOLT-HEX | |
| 38 | XKBN-00012 | WASHER-SPRING | |
| 39 | XKBN-00792 | WASHER | |
| 40 | XKBN-00724 | WASHER-SPRING | |
| 41 | XKBN-00718 | NUT-HEX | |
| 42 | XKBN-00709 | BOLT-HEX | |
| 43 | XKBN-00785 | BUSHING | |
| 44 | XKBN-00794 | SUPPORT-STEEL | |
| 45 | XKBN-00826 | PIN-BRACKET | |
| 46 | XKBN-00819 | HOSE ASSY | |
| 47 | XKBN-00817 | HOSE ASSY | |
| 48 | XKBN-00823 | BOLT-HEX | |
| 49 | XKBN-00824 | NUT-HEX | |
| 50 | XKBN-00822 | CONNECTOR-UNION | |
| 51 | XKBN-00821 | CONNECTOR-UNION | |
| 52 | XKBN-00834 | DECAL ASSY | |
| 53 | XKBN-00833 | TOOL KIT |
