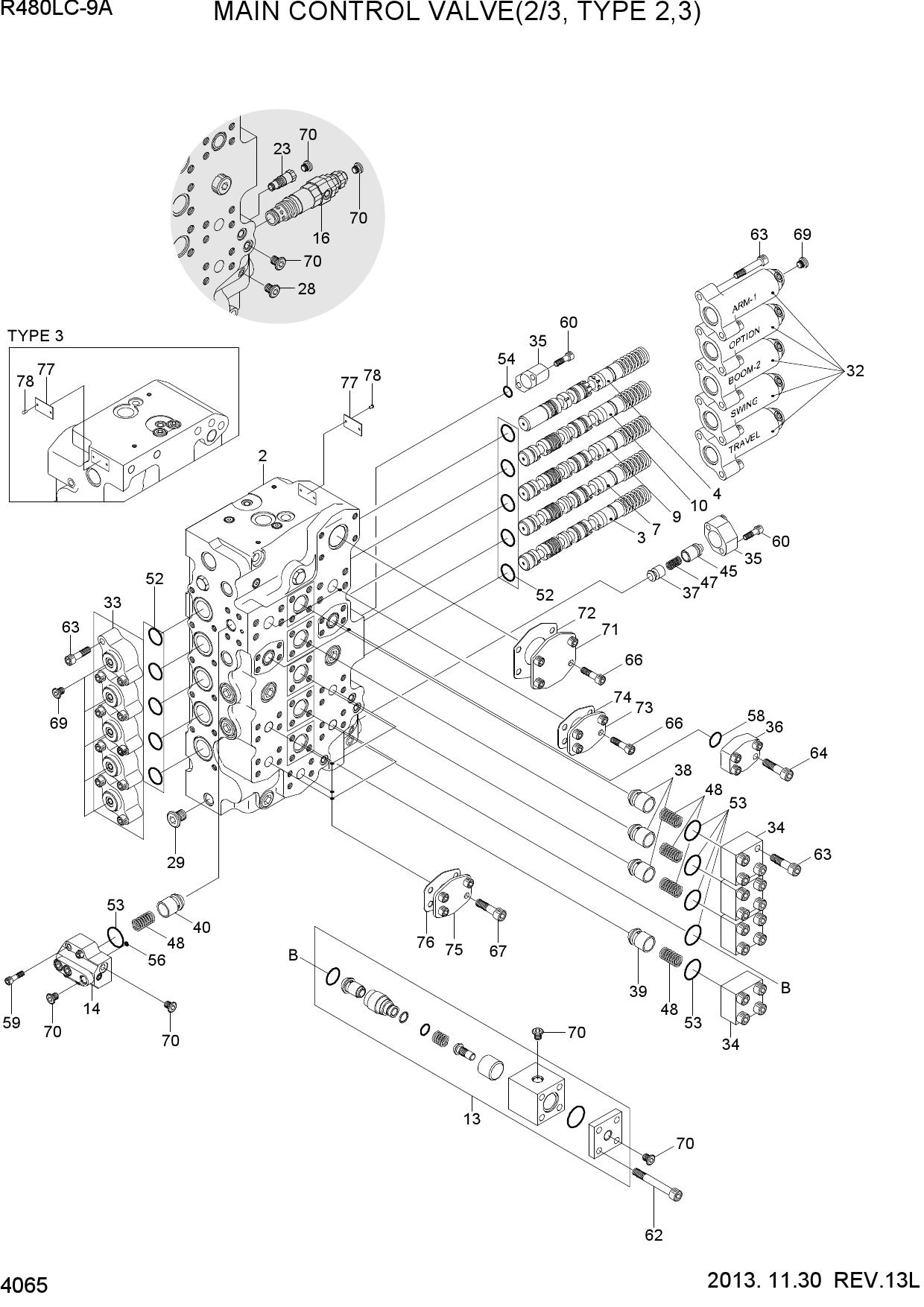

Запчасти для гусеничных экскаваторов Hyundai R480LC-9A MAIN CONTROL VALVE(2/3, TYPE 2,3)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2 | 31QB-17620 | HOUSING-P2 | |
| 3 | 31QB-17630 | SPOOL KIT -TRAVEL | |
| 4 | 31QB-17640 | SPOOL KIT - ARM1 | |
| 4 | 31QB-17641 | SPOOL KIT - ARM1 | |
| 7 | 31QB-17670 | SPOOL KIT - SWING | |
| 9 | 31QB-17690 | SPOOL KIT - BOOM2 | |
| 9 | 31QB-17691 | SPOOL KIT - BOOM2 | |
| 10 | 31QB-17700 | SPOOL KIT - OPTION | |
| 13 | 31QB-17960 | LOGIC VALVE-SWING | |
| 14 | 31QB-17980 | HOLDING VALVE | |
| 16 | 31QB-17730 | MAIN RELIEF VALVE | |
| 23 | 31QB-17910 | PLUG ASSY-SIGNAL | |
| 28 | 31N4-18090 | PLUG ASSY | |
| 29 | 31N8-17500 | PLUG | |
| 32 | 31QB-17840 | PILOT CAP-LARGE | |
| 33 | 31QB-17850 | PILOT CAP-SMALL | |
| 34 | 31QB-17880 | FLANGE-LOAD CHECK | |
| 35 | 31QB-17890 | FLANGE-MR | |
| 36 | 31QB-17900 | FLANGE-OPTION | |
| 37 | 31QB-18620 | POPPET-MR | |
| 38 | 31QB-18630 | POPPET-LOAD CHECK | |
| 39 | 31QB-18640 | POPPET-LOAD CHECK | |
| 40 | 31QB-18650 | POPPET MAIN H/D | |
| 45 | 31QB-17990 | SPACER ASSY-MR | |
| 47 | 31QB-18700 | SPRING-MR | |
| 48 | 31QB-18710 | SPRING-LOAD CHECK | |
| 52 | S632-055004 | O-RING | |
| 53 | S631-041004 | O-RING | |
| 54 | S631-026004 | O-RING | |
| 56 | S631-010004 | O-RING | |
| 58 | Y171-024001 | O-RING | |
| 59 | S109-120556 | BOLT-SOCKET | |
| 60 | S109-100406 | BOLT-SOCKET | |
| 62 | S109-121206 | BOLT-SOCKET | |
| 63 | S109-120456 | BOLT-SOCKET | |
| 64 | S109-100456 | BOLT-SOCKET | |
| 66 | S107-120154 | BOLT-SOCKET | |
| 67 | S107-100154 | BOLT-SOCKET | |
| 69 | 31N8-19450 | CAP-DUST | |
| 70 | 31N8-19460 | CAP-DUST | |
| 71 | 31QB-19600 | COVER 2-1/2 | |
| 72 | 31QB-19610 | GASKET 2-1/2 | |
| 73 | 31QB-19620 | COVER 1-1/4 | |
| 74 | 31QB-19630 | GASKET 1-1/4 | |
| 75 | 31QB-19640 | COVER 1 | |
| 76 | 31QB-19650 | GASKET 1 | |
| 77 | 31N8-19410 | NAME PLATE | |
| 78 | 31N8-19490 | REVET-SCREW TYPE |
