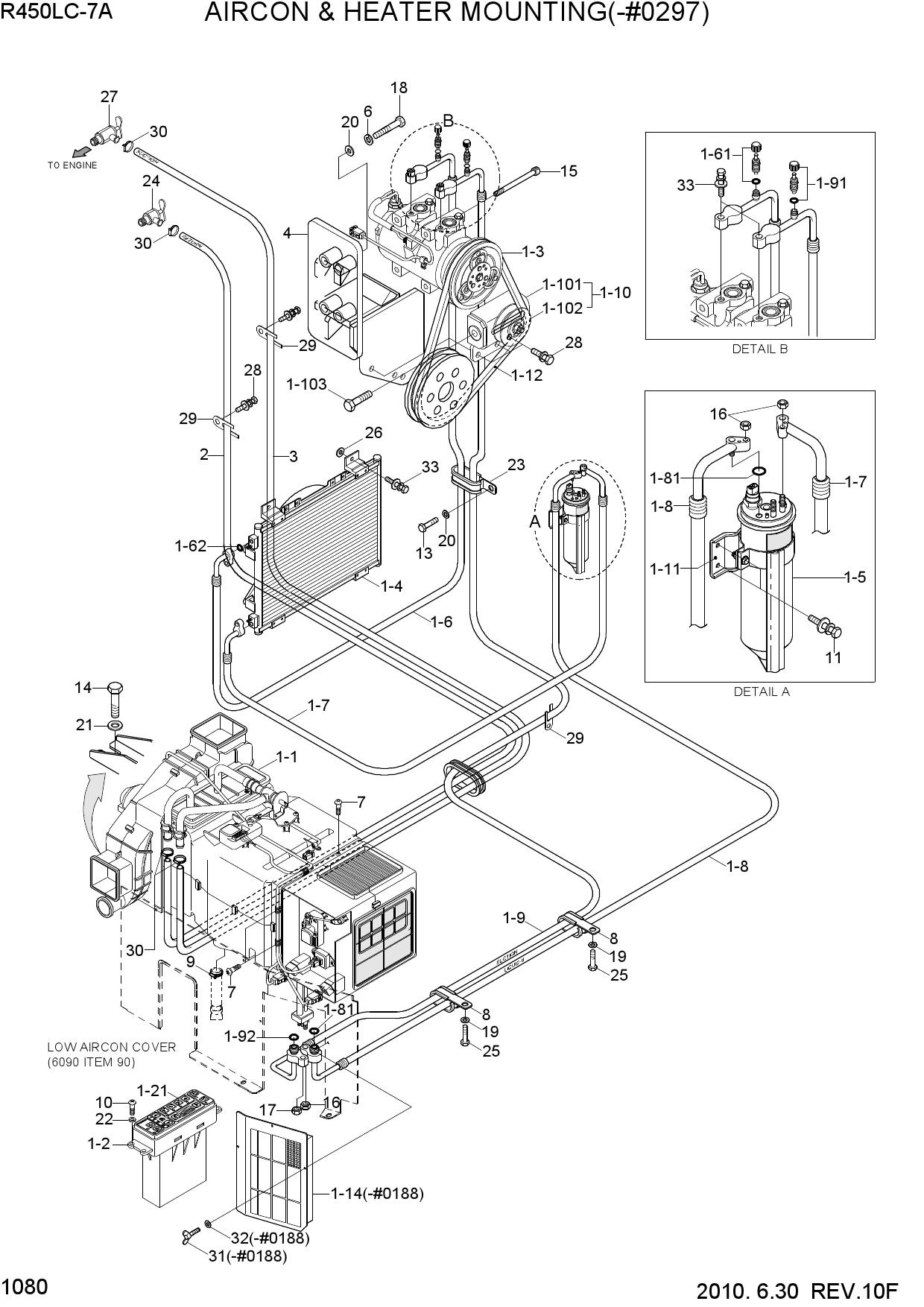

Запчасти для гусеничных экскаваторов Hyundai R450LC-7A AIRCON & HEATER MOUNTING(-#0297)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| N1 | 11NB-90011 | AIR CON & HEATER ASSY | |
| 1-1 | 11N6-90021 | AIRCON & HEATER UNIT | |
| 1-2 | 11N6-90031 | CONTROL ASSY-SEMI | |
| 1-21 | 11N6-90850 | DECAL-A/C & HEATER | |
| 1-3 | 11N6-90040 | COMPRESSOR ASSY | |
| 1-4 | 11NB-90110 | CONDENSER ASSY | |
| 1-41 | A2W01105 | FAN & SHROUD ASSY | |
| 1-411 | A2W00396 | FAN | |
| 1-412 | A2W01111 | MOTOR | |
| 1-42 | A2W01104 | CONDENSER ASSY | |
| 1-43 | AA000008 | BOLT ASSY | |
| 1-5 | 11N6-90060 | DRIER-RECEIVER | |
| 1-6 | 11NB-90033 | HOSE-DISCHARGE | |
| 1-61 | A304000301-4 | CHARGE VALVE ASSY | |
| 1-62 | A305000205-2 | O-RING | |
| 1-7 | 11NB-90120 | HOSE(A)-LIQUID | |
| 1-8 | 11N8-90050 | HOSE(B)-LIQUID | |
| 1-81 | A305000209-2 | O-RING | |
| 1-9 | 11NB-90040 | SUCTION HOSE | |
| 1-91 | A304000401-4 | CHARGE VALVE ASSY | |
| 1-92 | A305000203-2 | O-RING | |
| 1-10 | 11N6-90110 | PULLEY-IDLE | |
| 1-101 | A4760-508-00-2 | BRACKET-PULLEY | |
| 1-102 | A4700-511-01-2 | PULLEY-IDLE | |
| 1-103 | A8900-518-03-3 | BOLT-TENSION | |
| 1-11 | 11N6-90120 | BRACKET-R/DRIER | |
| 1-12 | 11N4-92110 | V-BELT | |
| 1-14 | 11N6-90340 | FILTER-REC | |
| 2 | 11E6-92080 | HOSE | |
| 3 | 11EH-92060 | HOSE | |
| 4 | 11NB-90080 | BRACKET-COMP.MTG | |
| 6 | S411-100002 | WASHER-SPRING | |
| 7 | S152-040122 | SCREW-TAPPING | |
| 8 | S551-035146 | TIE-WIRE | |
| 9 | S520-015000 | CLAMP-HOSE,S/DRIVE | |
| 10 | S179-050206 | SCREW-SOCKET RD HD | |
| 11 | S035-061622 | BOLT-W/WASHER | |
| 12 | S035-082022 | BOLT-W/WASHER | |
| 13 | S017-100162 | BOLT-HEX | |
| 14 | S017-120252 | BOLT-HEX | |
| 15 | S105-080956 | BOLT-SOCKET | |
| 16 | S203-061002 | NUT-HEX | |
| 17 | S203-081002 | NUT-HEX | |
| 18 | S017-100752 | BOLT-HEX | |
| 19 | S403-082002 | WASHER-PLAIN | |
| 20 | S403-102002 | WASHER-PLAIN | |
| 21 | S403-122002 | WASHER-PLAIN | |
| 22 | S403-052002 | WASHER-PLAIN | |
| 23 | S543-400002 | CLAMP-TUBE | |
| 24 | 14L1-01350 | VALVE-HEATER | |
| 25 | S015-080352 | BOLT-HEX | |
| 26 | 14L3-00741 | RESILIENT | |
| 27 | 11L7-90150 | VALVE-HEATER | |
| 28 | S037-102052 | BOLT-W/WASHER | |
| 29 | S593-001702 | CLIP-HARNESS | |
| 30 | S572-220006 | CLAMP-HOSE,WIRE TYPE | |
| 31 | S091-060156 | BOLT-WING | |
| 32 | S403-062006 | WASHER-PLAIN | |
| 33 | S035-083522 | BOLT-W/WASHER |
