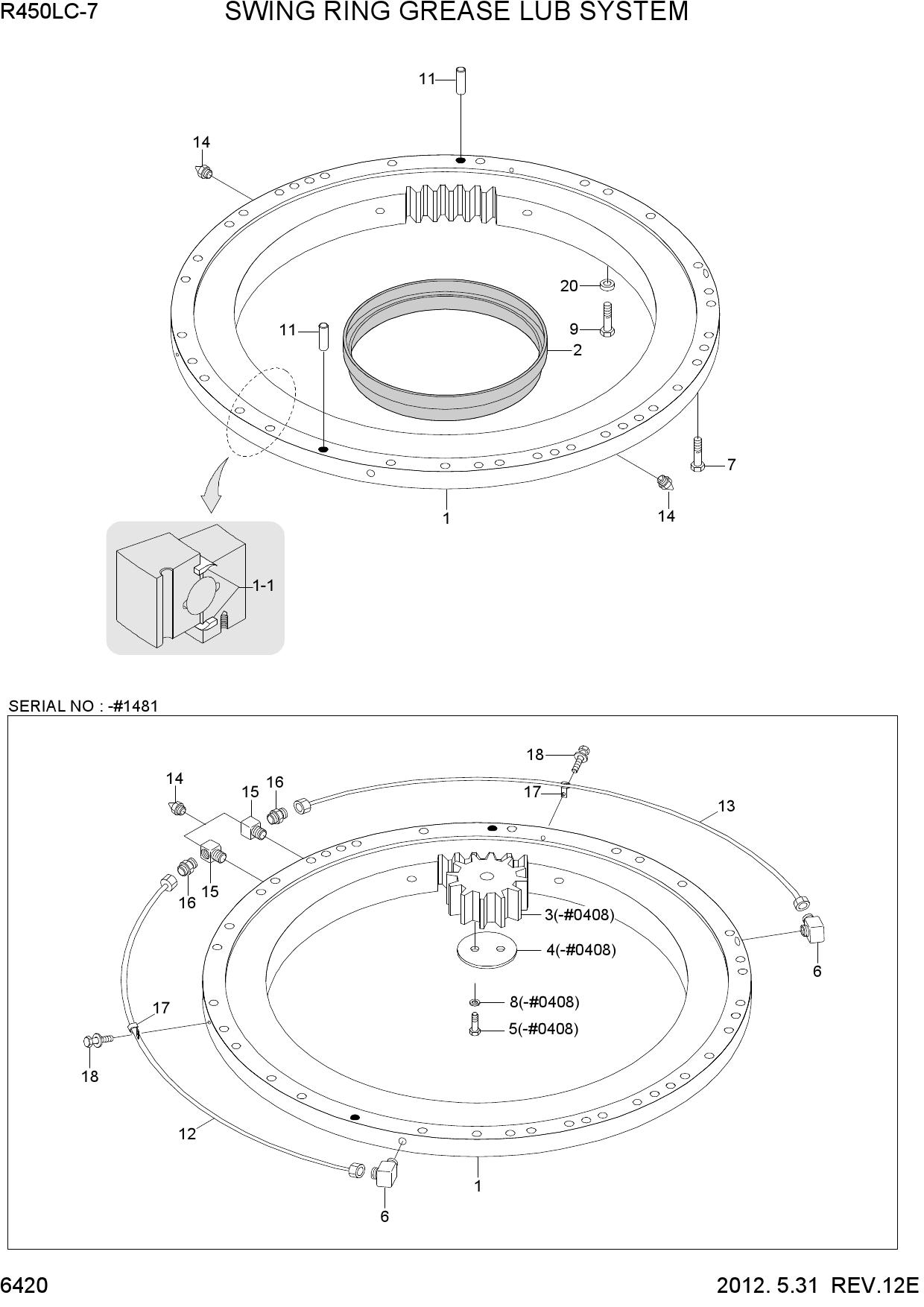

Запчасти для гусеничных экскаваторов Hyundai R450LC-7 SWING RING GREASE LUB SYSTEM
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 81NB-01021 | SWING BEARING | |
| 1 | 81NB-01022 | SWING BEARING | |
| 1 | 81NB-01022BG | SWING BEARING | |
| 1 | 81QB-01020BG | SWING BEARING | |
| 1 | 81QB-01021BG | SWING BEARING | |
| 1-1 | 81NB-01030 | SEAL-SWING BEARING | |
| 1-1 | 81QB-01120 | SEAL-SWING BEARING | |
| 1-1 | 81QB-01121 | SEAL-SWING BEARING | |
| 2 | 81NB-00031 | SEAL-GREASE | |
| 3 | 81NB-01010 | PINION | |
| 4 | 81NB-01100 | PLATE-LOCK | |
| 5 | S017-160352 | BOLT-HEX | |
| 6 | E231-0349 | ELBOW-90 | |
| 6 | 81N6-00130 | ELBOW-90 | |
| 6 | E231-0349 | ELBOW-90 | |
| 7 | S017-241452 | BOLT-HEX | |
| 7 | S017-241456 | BOLT-HEX | |
| 8 | S411-160002 | WASHER-SPRING | |
| 9 | S017-241002 | BOLT-HEX | |
| 9 | S017-241006 | BOLT-HEX | |
| 11 | 51E7-0002 | PIN-DOWEL | |
| 12 | 81NB-00011 | PIPE ASSY | |
| 12 | 81N6-00280 | TUBE-NYLON | |
| 12 | 81QB-01030 | PIPE ASSY | |
| 13 | 81NB-00021 | PIPE ASSY | |
| 13 | 81N6-00270 | TUBE-NYLON | |
| 13 | 81QB-01040 | PIPE ASSY | |
| 14 | S651-810002 | NIPPLE-GREASE | |
| 14 | S651-810002 | NIPPLE-GREASE | |
| 15 | 64E7-00010 | BLOCK | |
| 15 | 81N6-00110 | ELBOW-90 | |
| 16 | 61E7-0106 | FITTING-BREATHER | |
| 16 | 81N6-00120 | CONNECTOR | |
| 16 | 81QB-01050 | CONNECTOR | |
| 17 | 61E7-0132 | CLAMP | |
| 17 | S543-120002 | CLAMP-TUBE | |
| 17 | 31Q8-60230 | CLAMP-TUBE | |
| 18 | S017-100162 | BOLT-HEX | |
| 18 | S037-101556 | BOLT-W/WASHER | |
| 19 | S411-100002 | WASHER-SPRING | |
| 20 | S441-240002 | WASHER-HARDENED | |
| 20 | S441-240006 | WASHER-HARDENED |
