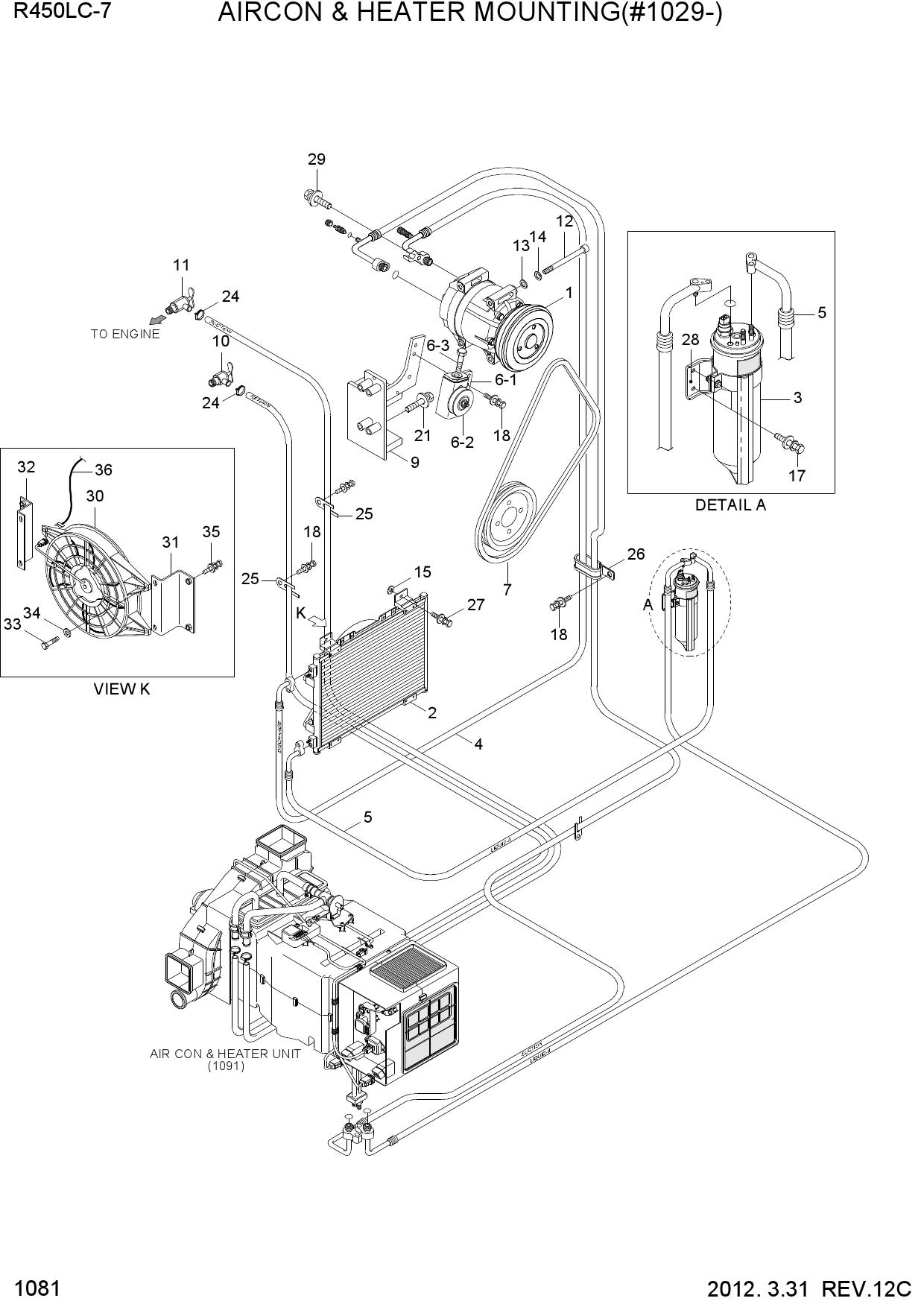

Запчасти для гусеничных экскаваторов Hyundai R450LC-7 AIRCON & HEATER MOUNTING(#1029-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 11Q6-90040 | COMPRESSOR ASSY | |
| 2 | 11NB-90110 | CONDENSER ASSY | |
| 3 | 11N6-90060 | DRIER-RECEIVER | |
| 4 | 11NB-90034 | DISCHARGE HOSE ASSY | |
| 5 | 11NB-90120 | HOSE(A)-LIQUID | |
| 6 | 11N6-90110 | PULLEY-IDLE | |
| 6-1 | A4760-508-00-2 | BRACKET-PULLEY | |
| 6-2 | A4700-511-01-2 | PULLEY-IDLE | |
| 6-3 | A8900-518-03-3 | BOLT-TENSION | |
| 7 | 12E2-3505 | V-BELT | |
| 7 | 11N4-94030 | V-BELT | |
| 9 | 11QB-90011 | BRACKET-COMP. MTG | |
| 10 | 14L1-01350 | VALVE-HEATER | |
| 11 | 11L7-90150 | VALVE-HEATER | |
| 12 | S109-080856 | BOLT-SOCKET | |
| 13 | S403-08100B | WASHER-PLAIN | |
| 14 | S411-080006 | WASHER-SPRING | |
| 15 | 14L3-00741 | RESILIENT | |
| 16 | S037-103526 | BOLT-W/WASHER | |
| 17 | S035-061526 | BOLT-W/WASHER | |
| 18 | S037-102026 | BOLT-W/WASHER | |
| 21 | S037-106556 | BOLT-W/WASHER | |
| 22 | S403-10200B | WASHER-PLAIN | |
| 23 | S411-100006 | WASHER-SPRING | |
| 24 | S572-220006 | CLAMP-HOSE,WIRE TYPE | |
| 25 | S593-001702 | CLIP-HARNESS | |
| 26 | S543-400002 | CLAMP-TUBE | |
| 27 | S035-083526 | BOLT-W/WASHER | |
| 28 | 11N6-90120 | BRACKET-R/DRIER | |
| 29 | S038-103556 | BOLT-W/WASHER | |
| 30 | 11NB-90090 | FAN & SHROUD ASSY | |
| 31 | 11NB-90130 | BRACKET | |
| 32 | 11NB-90140 | BRACKET | |
| 33 | S015-060306 | BOLT-HEX | |
| 34 | S403-06500B | WASHER-PLAIN | |
| 35 | S037-102526 | BOLT-W/WASHER | |
| 36 | 21NB-00210 | HARNESS-EXTENSION |
