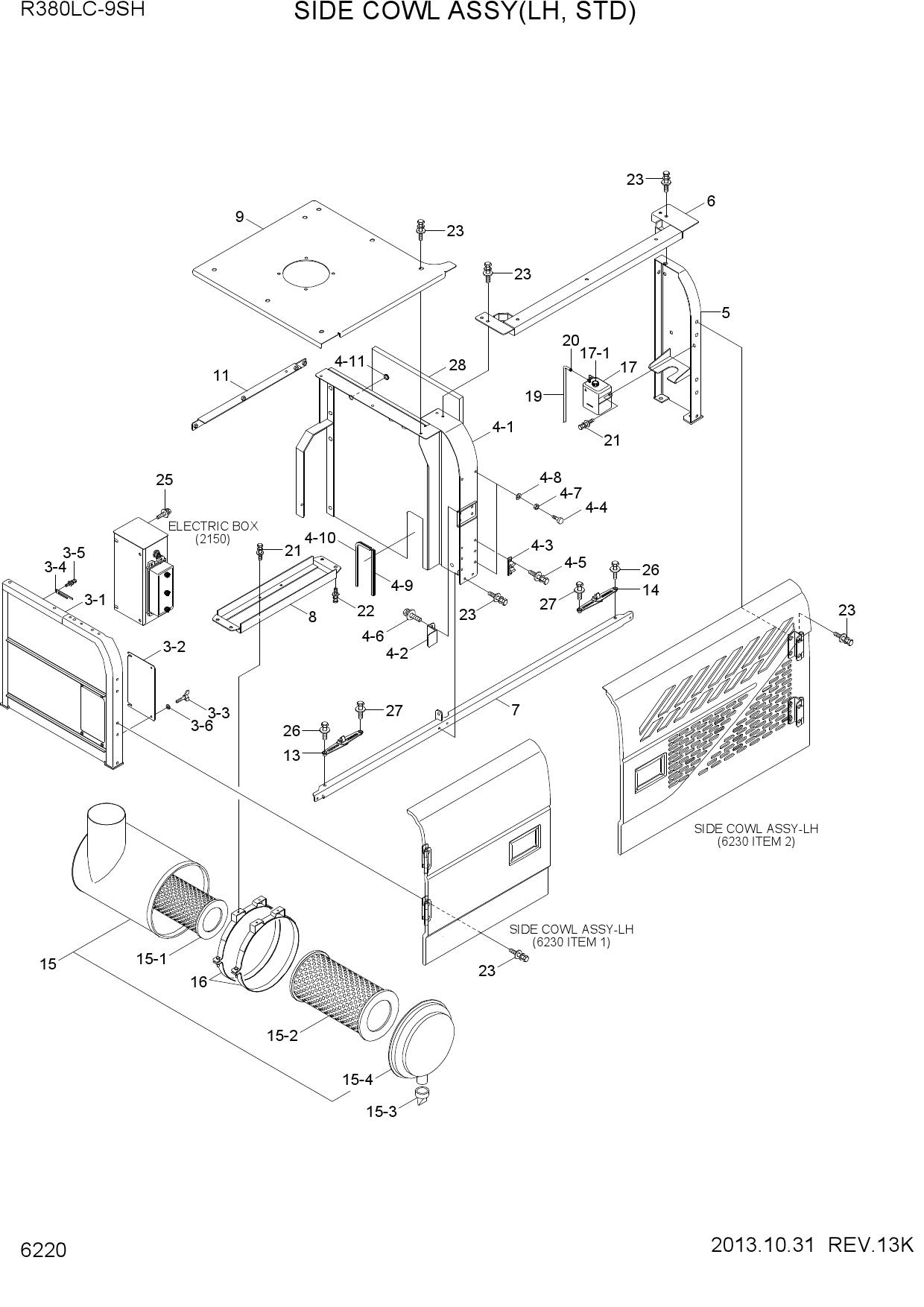

Запчасти для гусеничных экскаваторов Hyundai R380LC-9SH SIDE COWL ASSY(LH, STD)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 74QA-62001 | SIDE COWL ASSY-LH | |
| * | 74QA-62002 | SIDE COWL ASSY-LH | |
| * | 74QA-92020 | SIDE COWL ASSY-LH | |
| 3 | 78Q8-52301 | SUPPORT ASSY | |
| 3-1 | 78Q8-52311 | SUPPORT WA | |
| 3-1 | 78Q8-58310 | SUPPORT WA | |
| 3-4 | S593-000902 | CLIP-HARNESS | |
| 3-5 | S037-101526 | BOLT-W/WASHER | |
| 3 | 78Q8-92300 | SUPPORT ASSY | |
| 3-1 | 78Q8-92310 | SUPPORT WA | |
| 3-1 | 78Q8-98310 | SUPPORT WA | |
| 3-2 | 71Q6-52392 | PLATE-SCREEN | |
| 3-3 | S091-080166 | BOLT-WING | |
| 3-4 | S593-000902 | CLIP-HARNESS | |
| 3-5 | S037-101526 | BOLT-W/WASHER | |
| 3-6 | S403-082006 | WASHER-PLAIN | |
| 4 | 74QA-52400 | SUPPORT ASSY | |
| 4-1 | 74QA-52410 | SUPPORT WA-LH,MID | |
| 4-2 | 71Q6-53330 | PLATE-LOCK | |
| 4-3 | 71Q6-53951 | STOPPER-B | |
| 4-4 | 71EH-13150 | BUMPER-RUBBER | |
| 4-5 | S035-082026 | BOLT-W/WASHER | |
| 4-6 | S037-122056 | BOLT-W/WASHER | |
| 4-7 | S205-10100B | NUT-HEX | |
| 4-8 | S403-10200B | WASHER-PLAIN | |
| 4-9 | S791-020023 | GROMMET-PLATE | |
| 4-10 | S791-020035 | GROMMET-PLATE | |
| 4-11 | S681-290400 | GROMMET | |
| 5 | 72QA-52511 | SUPPORT WA-LH,REAR | |
| 6 | 72QA-52600 | SUPPORT-ENG HOOD | |
| 7 | 71QA-52701 | SUPPORT WA-BOTTOM | |
| 8 | 74QA-52900 | SUPPORT WA | |
| 9 | 74QA-66100 | HOOD WA-A/CLEANER | |
| 11 | 72QA-62950 | SUPPORT WA-MCV HOOD | |
| 13 | 71Q6-53180 | STAY ASSY-RH | |
| 14 | 71Q6-52180 | STAY ASSY-LH | |
| 15 | 11Q8-20110 | AIR CLEANER ASSY | |
| 15-1 | 11Q8-20120 | ELEMENT ASSY-SAFETY | |
| 15-2 | 11Q8-20130 | ELEMENT ASSY-OUTER | |
| 15-3 | 11Q8-20140 | VALVE-VACUUM | |
| 15-4 | XKDD-00001 | COVER ASSY | |
| 16 | 11Q8-20150 | CLAMP-BAND | |
| 17 | 11N8-41071 | TANK-RESERVOIR | |
| 17-1 | MH100020 | CAP-RESERVOIR TANK | |
| 19 | E111-2504 | HOSE | |
| 20 | S520-015000 | CLAMP-HOSE,S/DRIVE | |
| 21 | S035-082526 | BOLT-W/WASHER | |
| 22 | 71Q6-50020 | BOLT-W/WASHER | |
| 23 | 71Q6-50025 | BOLT-W/WASHER | |
| 25 | S037-101556 | BOLT-W/WASHER | |
| 26 | S037-103556 | BOLT-W/WASHER | |
| 27 | S037-102556 | BOLT-W/WASHER | |
| 28 | 72QA-52990 | SPONGE |
