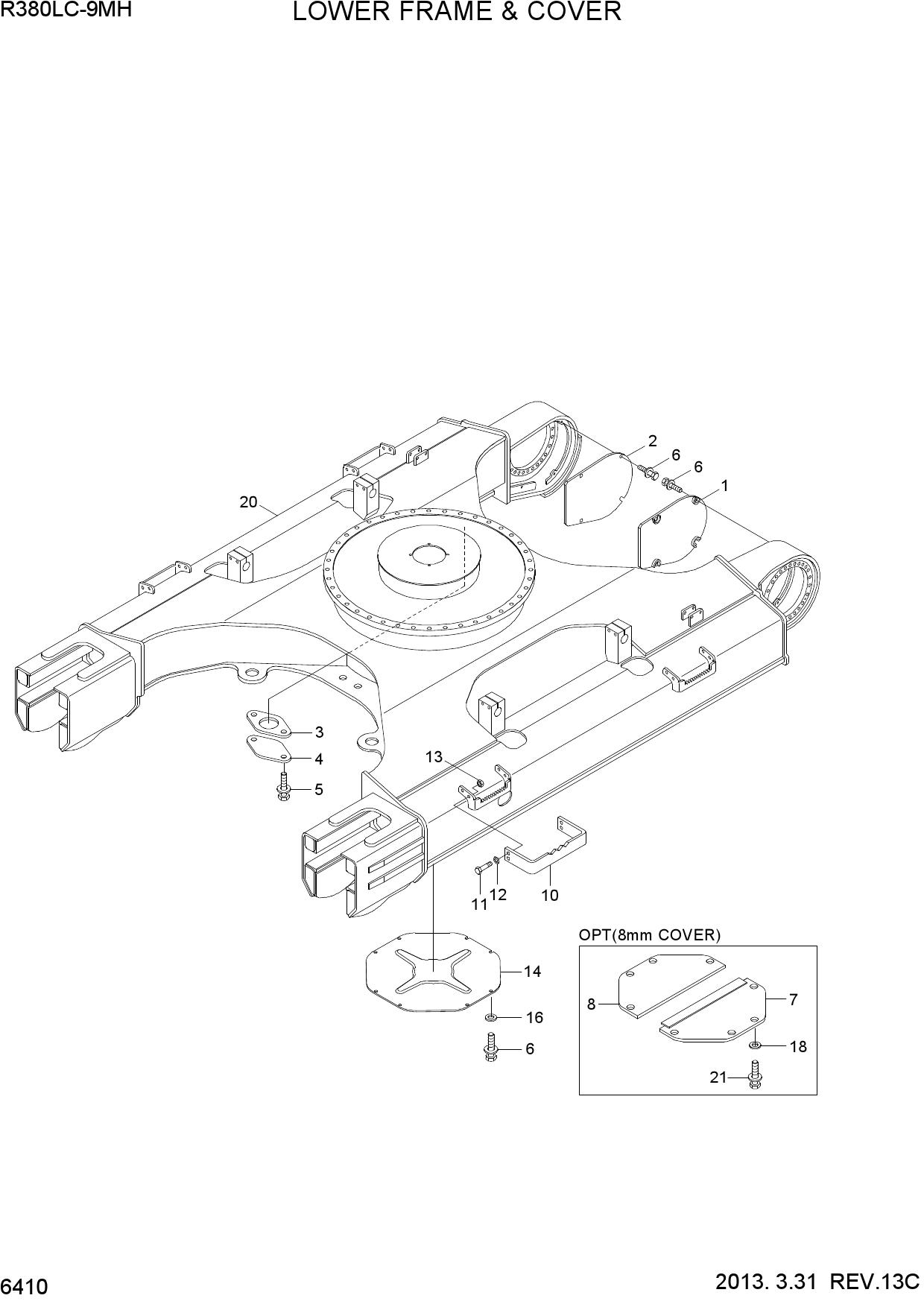

Запчасти для гусеничных экскаваторов Hyundai R380LC-9MH LOWER FRAME & COVER
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 51QA-11110 | COVER WA-T/MOTOR,LH | |
| 2 | 51QA-11120 | COVER WA-T/MOTOR,RH | |
| 3 | 41N6-10100 | COVER | |
| 4 | 41E9-1306 | SEAL | |
| 5 | S037-102556 | BOLT-W/WASHER | |
| 6 | S037-123556 | BOLT-W/WASHER | |
| 7 | 51N6-11230GG | COVER-BOTTOM(A) | |
| 8 | 51N6-11240GG | COVER-BOTTOM(B) | |
| 10 | 51N6-02650GG | BOARD-FOOT | |
| 10 | 51N6-02660GG | BOARD-FOOT | |
| 11 | S017-120506 | BOLT-HEX | |
| 12 | S441-12000B | WASHER-HARDENED | |
| 13 | S205-12100B | NUT-HEX | |
| 14 | 51QA-11210GG | COVER-BOTTOM(A) | |
| 15 | S017-16035D | BOLT-HEX | |
| 16 | S441-160006 | WASHER-HARDENED | |
| 17 | S017-16045D | BOLT-HEX | |
| 18 | S441-160006 | WASHER-HARDENED | |
| 20 | 51QA-00012 | LOWER FRAME WA |
