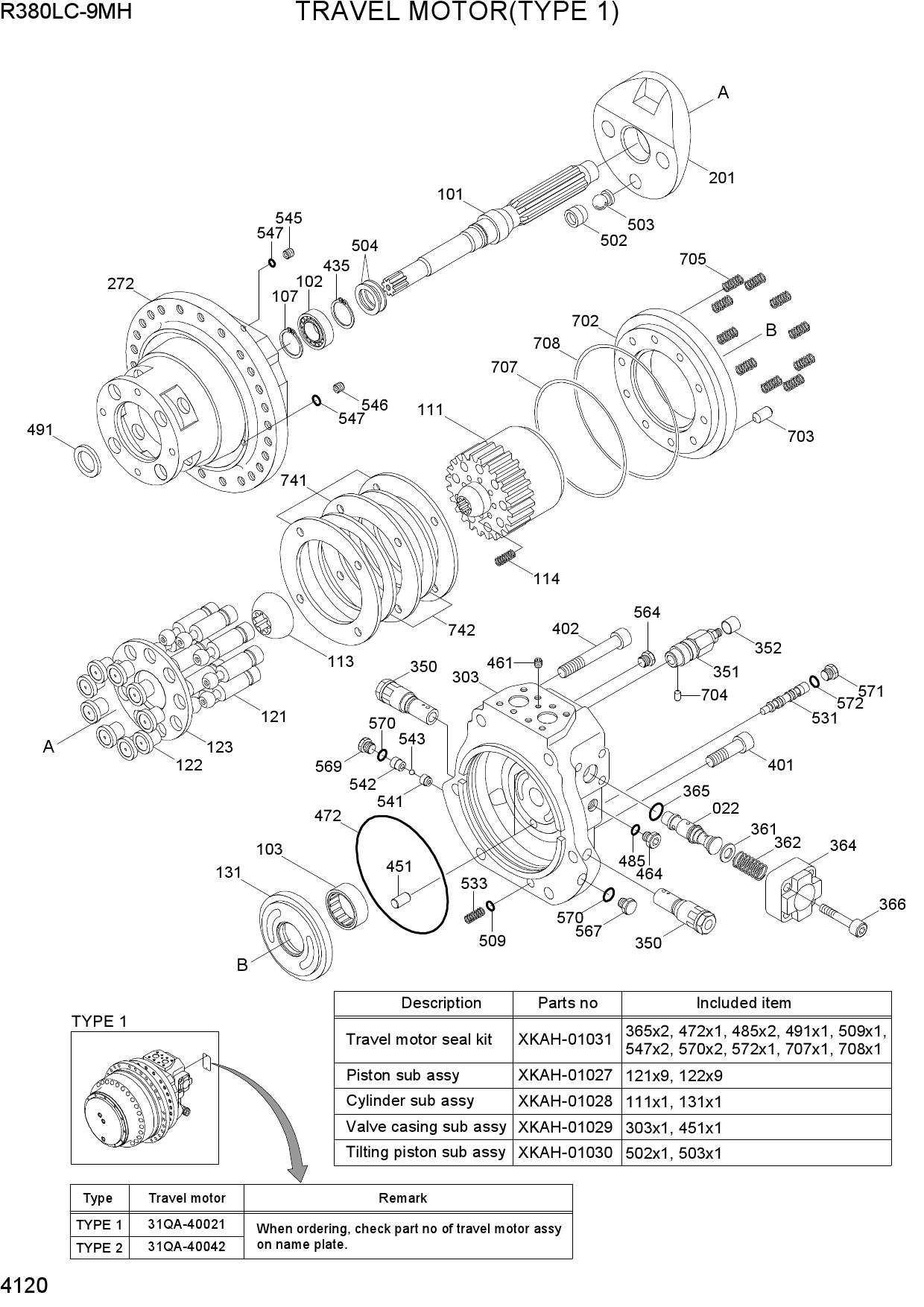

Запчасти для гусеничных экскаваторов Hyundai R380LC-9MH TRAVEL MOTOR(TYPE 1)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 31QA-40021 | TRAVEL MOTOR ASSY | |
| N*-1 | XKAH-01438 | TRAVEL MOTOR UNIT | |
| 22 | XKAH-01601 | SPOOL-COUNTERBALANCE | |
| 101 | XKAH-01602 | SHAFT-DRIVE | |
| 102 | XKAH-00942 | BEARING-ROLLER | |
| 103 | XKAH-00943 | BEARING-NEEDLE | |
| 107 | XKAH-00944 | RING-SNAP | |
| S111 | XKAH-01603 | BLOCK-CYLINDER | |
| 113 | XKAH-00946 | BUSHING-SPHERICAL | |
| 114 | XKAH-00947 | SPRING-CYL | |
| NS121 | XKAH-00948 | PISTON | |
| NS122 | XKAH-00153 | SHOE | |
| 123 | XKAH-00950 | PLATE-SET | |
| S131 | XKAH-01604 | PLATE-VALVE | |
| 201 | XKAH-00952 | PLATE-SWASH | |
| N272 | XKAH-01436 | CASING-SHAFT | |
| NS303 | XKAH-01599 | CASING A-VALVE | |
| 350 | XKAH-01605 | VALVE-RELIEF | |
| 351 | XKAH-00956 | VALVE-REDUCING | |
| 352 | XKAH-00957 | COVER | |
| 361 | XKAH-00958 | WASHER | |
| 362 | XKAH-00959 | SPRING-C/B | |
| 364 | XKAH-00960 | COVER-C/B | |
| K365 | XKAH-00961 | O-RING | |
| 366 | XKAH-00962 | BOLT-SOCKET | |
| 401 | XKAH-00963 | BOLT-SOCKET | |
| 402 | XKAH-00964 | BOLT-SOCKET | |
| 435 | XKAH-00965 | RING-SNAP | |
| S451 | XKAH-00187 | PLUG | |
| 461 | XKAH-00625 | PLUG | |
| 464 | XKAH-00966 | PLUG-VP | |
| K472 | XKAH-00967 | O-RING | |
| K485 | XKAH-00035 | O-RING | |
| K491 | XKAH-00968 | SEAL-OIL | |
| NS502 | XKAH-00969 | PISTON | |
| NS503 | XKAH-01561 | SHOE | |
| 504 | XKAH-01606 | BALL-PIVOT | |
| K509 | XKAH-00035 | O-RING | |
| 531 | XKAH-01607 | SPOOL-TILTING | |
| 533 | XKAH-00972 | SPRING-TILTING | |
| 541 | XKAH-00973 | SEAT-2A | |
| 542 | XKAH-00974 | STOPPER | |
| 543 | XKAH-00199 | BALL-STEEL | |
| 545 | XKAH-01566 | ORIFICE | |
| 546 | XKAH-01565 | ORIFICE | |
| K547 | XKAH-00261 | O-RING | |
| 564 | XKAH-00977 | PLUG | |
| 567 | XKAH-00136 | PLUG-VP | |
| 569 | XKAH-00710 | PLUG-RO | |
| K570 | XKAH-00052 | O-RING | |
| 571 | XKAH-00978 | PLUG-RO | |
| K572 | XKAH-00326 | O-RING | |
| 702 | XKAH-01600 | PISTON-BRAKE | |
| 703 | XKAH-00980 | ORIFICE | |
| 704 | XKAH-00981 | ORIFICE | |
| 705 | XKAH-00127 | SPRING-BRAKE | |
| K707 | XKAH-00133 | O-RING | |
| K708 | XKAH-00982 | O-RING | |
| 741 | XKAH-00983 | PLATE-SEPARATION | |
| 742 | XKAH-00984 | PLATE-FRICTION | |
| K | XKAH-01031 | SUB ASSY-SEAL | |
| 011 | XKAH-01027 | SUB ASSY-PISTON | |
| 012 | XKAH-01028 | SUB ASSY-CYLINDER | |
| 013 | XKAH-01029 | SUB ASSY-VALVE CASING | |
| 014 | XKAH-01030 | SUB ASSY-TILTING PISTON |
