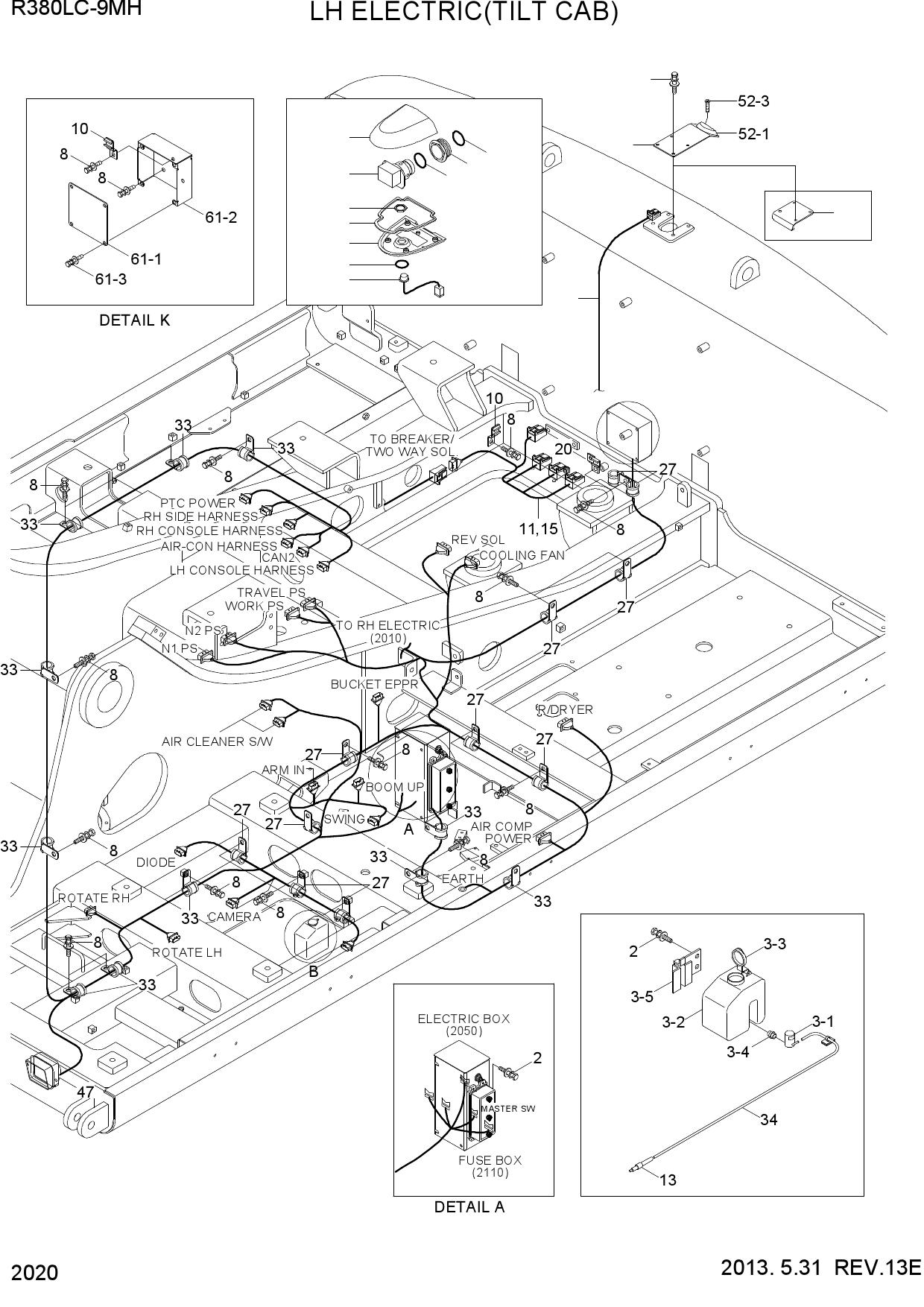

Запчасти для гусеничных экскаваторов Hyundai R380LC-9MH LH ELECTRIC(TILT CAB)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2 | S035-062026 | BOLT-W/WASHER | |
| 3 | 21EG-30630 | WASHER TANK ASSY | |
| 3-1 | 21EG-10130 | PUMP-MOTOR | |
| 3-2 | 21EG-10140 | TANK | |
| 3-3 | 24L3-30660 | CAP | |
| 3-4 | 24L3-30670 | RUBBER-BUSHING | |
| 3-5 | 24L3-30710 | PLATE | |
| 8 | S037-101526 | BOLT-W/WASHER | |
| 10 | 21N4-01130 | PLATE-CLIP | |
| 11 | 21Q8-11110 | HARNESS-TWO WAY | |
| 13 | 21EM-30570 | CONNECTOR-TUBE | |
| 15 | 21Q8-11130 | HARNESS-BREAKER | |
| 20 | 25D1-10640 | CLIP ASSY | |
| 27 | 31L7-10200 | CLAMP-TUBE | |
| 33 | 31L7-10230 | CLAMP | |
| 34 | 21EM-30581 | HOSE-RUBBER | |
| 47 | 21QB-60700 | WORK LAMP ASSY | |
| 47-1 | S866-240650 | BULB | |
| 50 | 21Q6-60030 | PLATE | |
| 51 | 21Q6-11142 | HARNESS-CAMERA | |
| 52 | 21Q6-60102 | REAR VIEW CAMERA KIT | |
| 52 | 21Q6-60103 | REAR VIEW CAMERA KIT ASSY | |
| 52-1 | 21AB-30032 | CAMERA ASSY-REAR | |
| 52-1 | 21AB-30033 | CAMERA ASSY-REAR | |
| N52-11 | 21AB-30110 | COVER-TOP | |
| N52-11 | 21AB-40110 | COVER-TOP | |
| N52-12 | 21AB-30120 | COVER-BOTTOM | |
| N52-13 | 21AB-30130 | CAMERA & PCB ASSY | |
| N52-13 | 21AB-30131 | CAMERA & PCB ASSY | |
| N52-14 | 21AB-30140 | GASKET | |
| N52-15 | 21AB-30150 | LENS-WINDOW | |
| N52-16 | 21AB-30160 | O-RING/LENS WINDOW | |
| N52-17 | 21AB-30170 | O-RING-CAM | |
| N52-18 | 21AB-30180 | NUT-VOLUME | |
| N52-19 | 21AB-30190 | O-RING | |
| N52-20 | 21AB-30210 | CABLE ASSY | |
| 52-2 | 21AB-50011 | BRACKET-CAMERA | |
| 52-3 | S141-050102 | SCREW-FLAT HD | |
| 61 | 21Q4-91040 | COVER ASSY | |
| 61 | 21Q4-91041 | COVER ASSY | |
| 61-1 | 21Q4-91070 | COVER | |
| 61-1 | 21Q4-91071 | COVER | |
| 61-2 | 21Q4-91050 | PLATE | |
| 61-2 | 21Q4-91051 | PLATE | |
| 61-3 | S035-081526 | BOLT-W/WASHER |
Для поиска необходимых позиций выберите нужный раздел каталога запасных
частей Hyundai Чтобы купить запчасти для R380LC-9MH в компании ООО
«ЮКОЗ ТРЕИД» позвоните нам по телефонам указанным в разделе Контакты или
отправьте сообщение через форму запроса в ближайший к вам филиал.
