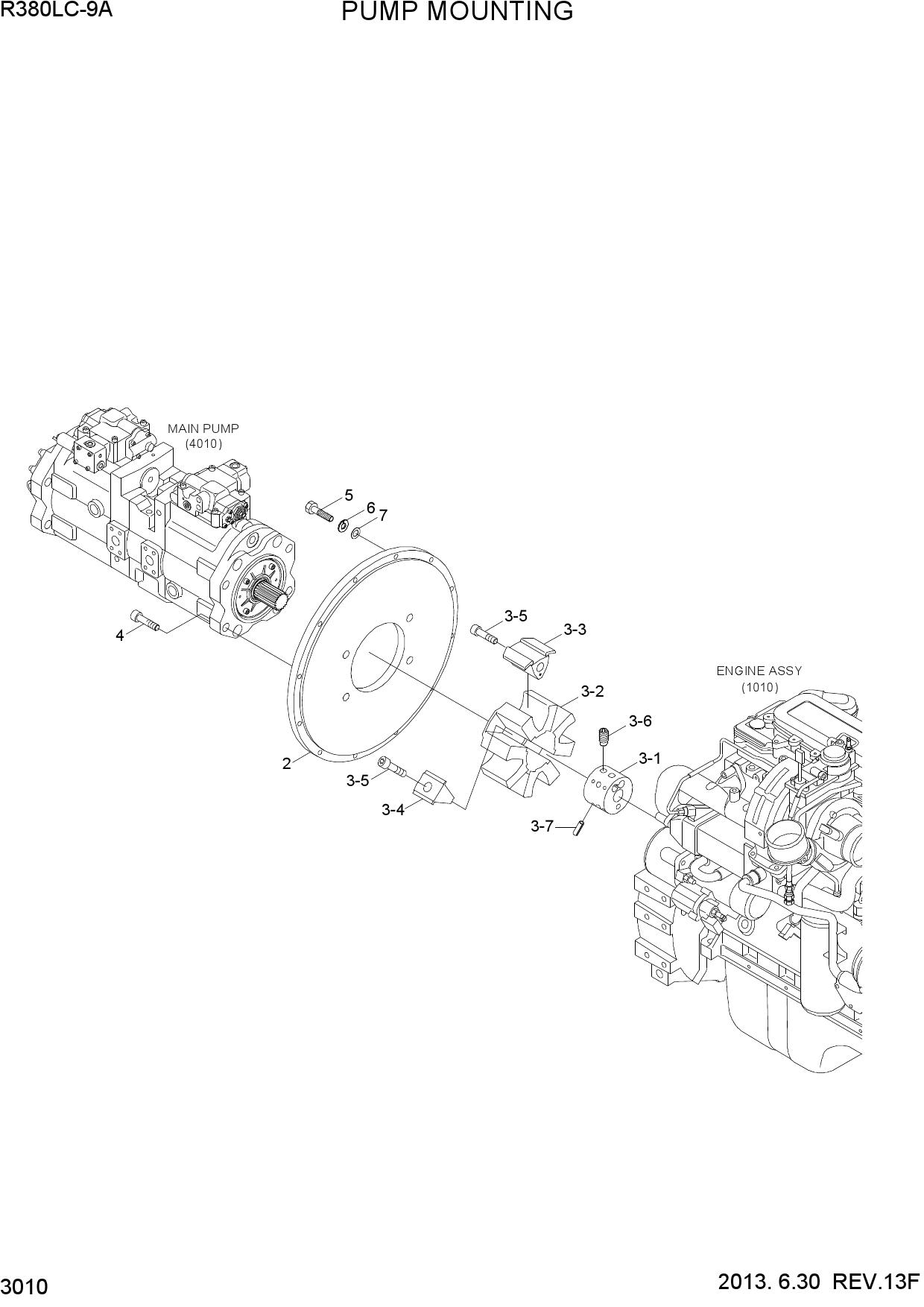

Запчасти для гусеничных экскаваторов Hyundai R380LC-9A PUMP MOUNTING
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2 | 11N8-10000 | HOUSING | |
| 3 | 11E9-16012 | COUPLING ASSY | |
| 3 | 11E9-16013 | COUPLING ASSY | |
| 3-1 | 11E9-15080 | HUB | |
| 3-1 | 11E9-15081 | HUB | |
| 3-2 | 11E9-15091 | ELEMENT | |
| 3-2 | 11E9-15092 | ELEMENT | |
| 3-3 | 11E9-15101 | INSERT-A | |
| 3-3 | 11E9-15102 | INSERT-A | |
| 3-4 | 11E9-15111 | INSERT-R | |
| 3-4 | 11E9-15112 | INSERT-R | |
| 3-5 | S109-20050D | BOLT-SOCKET | |
| 3-5 | S109-20060D | BOLT-SOCKET | |
| 3-6 | 11E9-1507 | BOLT-CLAMPING | |
| 3-7 | S472-800162 | PIN-SPRING | |
| 4 | S109-20065D | BOLT-SOCKET | |
| 5 | S017-100556 | BOLT-HEX | |
| 5 | S017-100606 | BOLT-HEX | |
| 6 | S411-100006 | WASHER-SPRING | |
| 7 | S403-10200B | WASHER-PLAIN |
Для поиска необходимых позиций выберите нужный раздел каталога запасных
частей Hyundai Чтобы купить запчасти для R380LC-9A в компании ООО
«ЮКОЗ ТРЕИД» позвоните нам по телефонам указанным в разделе Контакты или
отправьте сообщение через форму запроса в ближайший к вам филиал.
