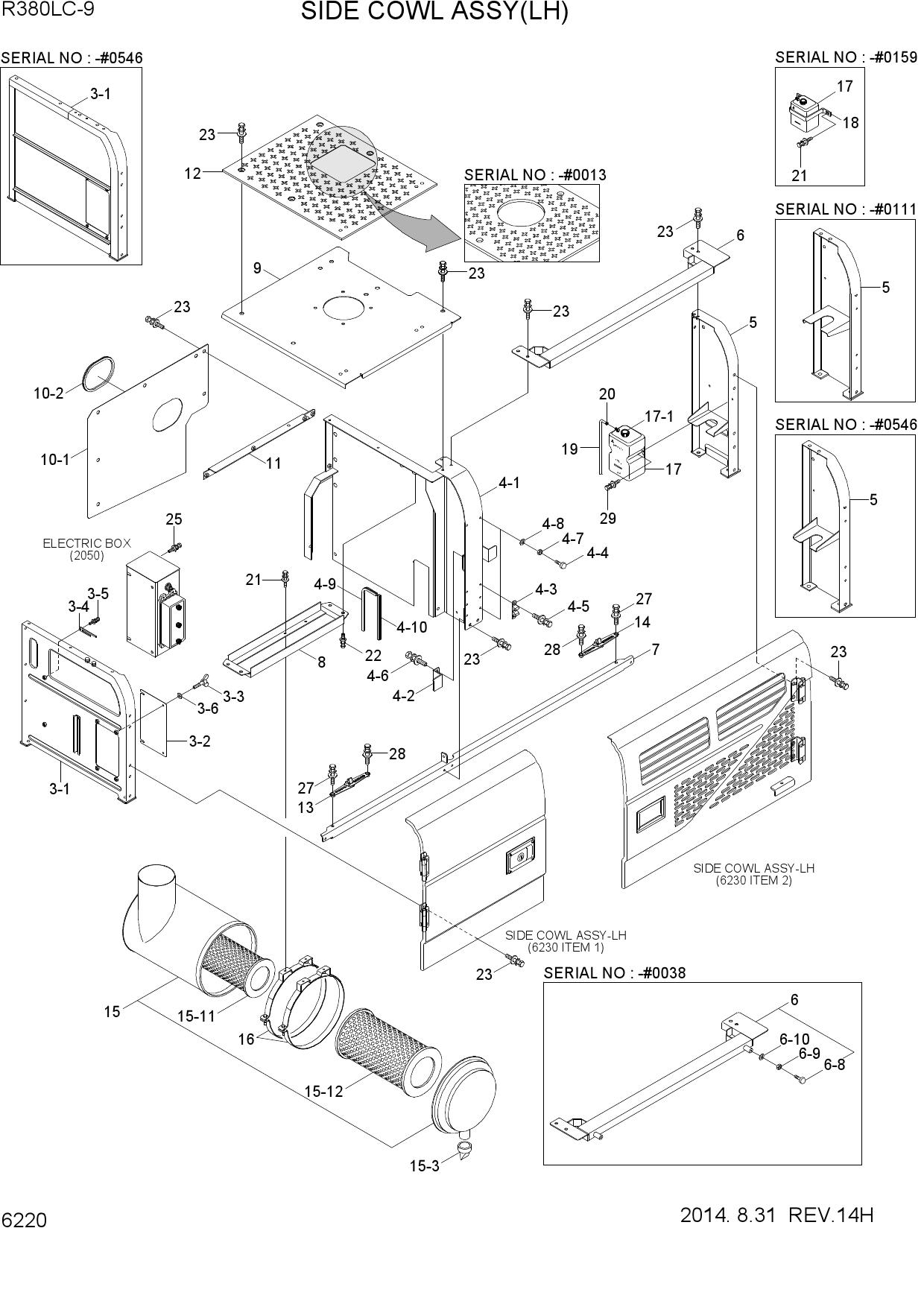

Запчасти для гусеничных экскаваторов Hyundai R380LC-9 SIDE COWL ASSY(LH)

№	Номер	Описание
*	71QA-52002	SIDE COWL ASSY-LH
*	71QA-52003	SIDE COWL ASSY-LH
*	71QA-52004	SIDE COWL ASSY-LH
*	71QA-52005	SIDE COWL ASSY-LH
*	71QA-52020	SIDE COWL ASSY-LH
*	71QA-52020	SIDE COWL ASSY-LH
*	71QA-52022	SIDE COWL ASSY-LH
*	71QA-62000	SIDE COWL ASSY-LH
*	71QA-62001	SIDE COWL ASSY-LH
*	71QA-62002	SIDE COWL ASSY-LH
*	71QA-62003	SIDE COWL ASSY-LH
*	71QA-62005	SIDE COWL ASSY-LH
3	71Q8-52302	SUPPORT ASSY
3	71Q8-52303	SUPPORT ASSY
3-1	71Q8-52313	SUPPORT WA
3-1	71Q8-52314	SUPPORT WA
3-1	71Q8-58310	SUPPORT WA
3-2	71Q6-52392	PLATE-SCREEN
3-3	S035-082056	BOLT-W/WASHER
3-3	S091-080166	BOLT-WING
3-4	S593-000802	CLIP-HARNESS
3-4	S593-000902	CLIP-HARNESS
3-5	S037-101526	BOLT-W/WASHER
3-6	S403-082006	WASHER-PLAIN
4	71QA-52402	SUPPORT ASSY
4-1	71QA-52412	SUPPORT WA-LH,MID
4-2	71Q6-53330	PLATE-LOCK
4-3	71Q6-53951	STOPPER-B
4-4	71EH-13150	BUMPER-RUBBER
4-5	S035-082026	BOLT-W/WASHER
4-6	S037-122056	BOLT-W/WASHER
4-7	S205-10100B	NUT-HEX
4-8	S403-10200B	WASHER-PLAIN
4-9	S791-020035	GROMMET-PLATE
4-10	S791-020023	GROMMET-PLATE
5	71Q9-52512	SUPPORT WA-LH,REAR
5	71Q9-52513	SUPPORT WA-LH,REAR
6	71Q9-52602	SUPPORT-ENG HOOD
6-8	71EH-13150	BUMPER-RUBBER
6-9	S205-10100B	NUT-HEX
6-10	S403-10200B	WASHER-PLAIN
7	71QA-52701	SUPPORT WA-BOTTOM
8	71QA-52901	SUPPORT WA
9	71QA-56101	HOOD WA-A/CLEANER
9	71QA-66100	HOOD WA-A/CLEANER
9	71QA-66101	HOOD WA-A/CLEANER
10	71QA-56202	SCREEN-MCV
10-1	71QA-56212	SCREEN-MCV
10-2	S791-020070	GROMMET-PLATE
11	71QA-52951	SUPPORT WA-MCV HOOD
11	71QA-62950	SUPPORT WA-MCV HOOD
12	71QA-56500	NON SLIP PLATE
12	71QA-56501	NON SLIP PLATE
12	72QA-56500	NON SLIP PLATE
12	72QA-56501	NON SLIP PLATE
13	71Q6-53180	STAY ASSY-RH
14	71Q6-52180	STAY ASSY-LH
15	11Q8-20110	AIR CLEANER ASSY
15-1	11Q8-20130-K	ELEMENT SET-A/CLEAN
15-11	11Q8-20120	ELEMENT ASSY-SAFETY
15-12	11Q8-20130	ELEMENT ASSY-OUTER
15-3	11Q8-20140	VALVE-VACUUM
15-4	XKDD-00001	COVER ASSY
16	11Q8-20150	CLAMP-BAND
17	11N8-41070	TANK-RESERVOIR
17	11N8-41071	TANK-RESERVOIR
17-1	MH100020	CAP-RESERVOIR TANK
18	11N8-41080	CLAMP-RESERVOIR TANK
19	E111-2504	HOSE
20	S520-015000	CLAMP-HOSE,S/DRIVE
21	S035-082026	BOLT-W/WASHER
21	S035-082026	BOLT-W/WASHER
22	71Q6-50020	BOLT-W/WASHER
23	71Q6-50025	BOLT-W/WASHER
23	71Q6-50025	BOLT-W/WASHER
25	S037-101556	BOLT-W/WASHER
27	S037-103556	BOLT-W/WASHER
28	S037-102556	BOLT-W/WASHER
