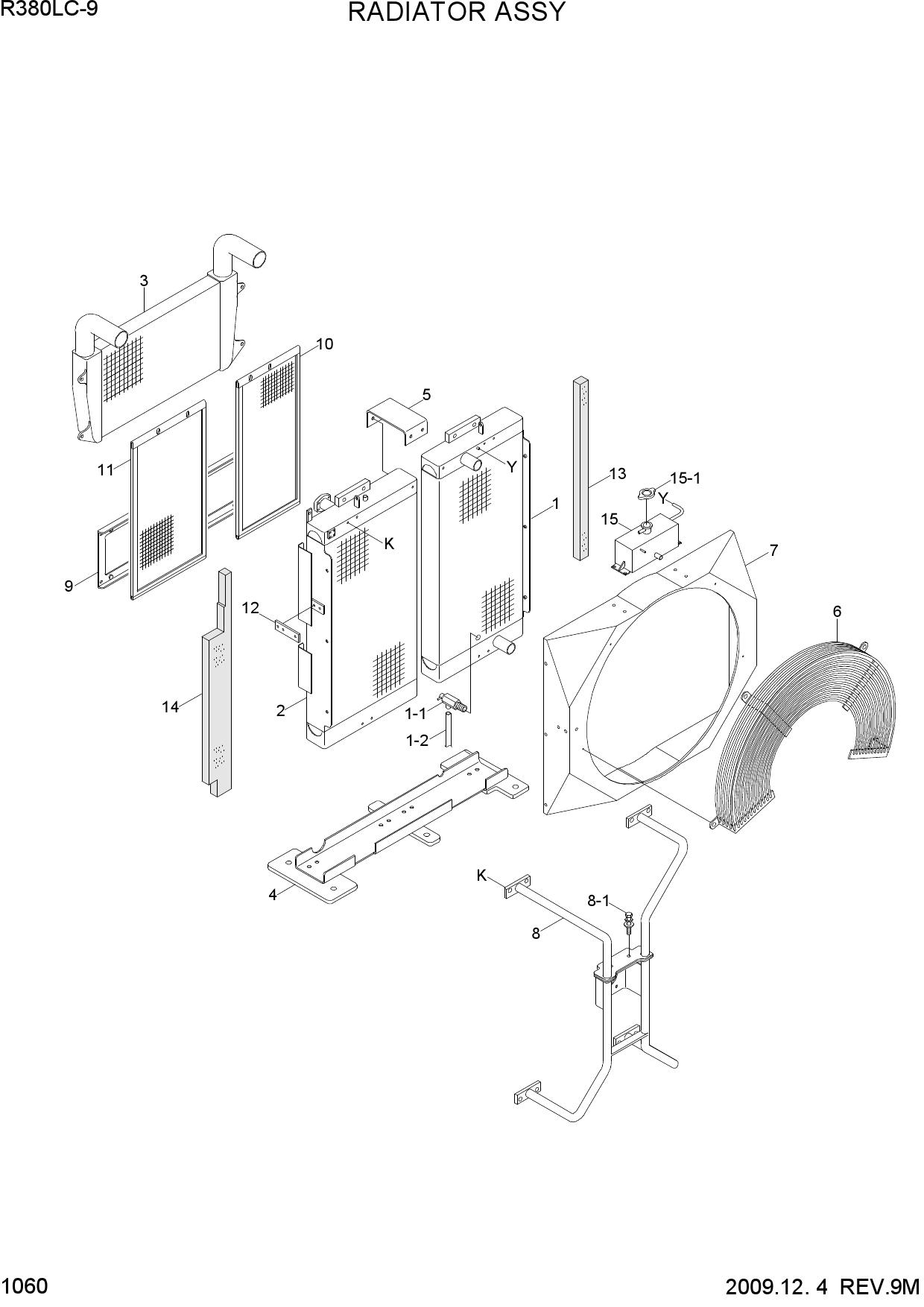

Запчасти для гусеничных экскаваторов Hyundai R380LC-9 RADIATOR ASSY(-#0017)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 11QA-40205 | RADIATOR TOTAL ASSY | |
| * | 11QA-40206 | RADIATOR TOTAL ASSY | |
| 1 | 11Q9-40523 | RADIATOR ASSY | |
| 1 | 11Q9-40524 | RADIATOR ASSY | |
| 1-1 | 11EK-42210 | COCK-DARIN | |
| 1-2 | 11Q6-40790 | HOSE-DRAIN | |
| 2 | 11QA-40212 | OIL COOLER ASSY | |
| 2 | 11QA-40213 | OIL COOLER ASSY | |
| 3 | 11Q9-40550 | AIR COOLER-CHARGE | |
| 4 | 11Q9-40612 | PLATE-BASE | |
| 4 | 11Q9-40613 | PLATE-BASE | |
| 5 | 11Q9-40661 | SUPPORT-UPPER | |
| 5 | 11Q9-40662 | SUPPORT-UPPER | |
| 6 | 11Q9-40583 | GUARD-FAN | |
| 7 | 11Q9-40545 | SHROUD | |
| 7 | 11Q9-40547 | SHROUD | |
| 8 | 11Q9-40631 | MOUNT ASSY-MOTOR | |
| 8 | 11Q9-40633 | MOUNT ASSY-MOTOR | |
| 8-1 | S037-103026 | BOLT-W/WASHER | |
| 9 | 11Q9-40601 | BRACKET-CONDENSER | |
| 10 | 11Q9-40641 | WIRE NET-RAD | |
| 11 | 11Q9-40651 | WIRE NET-O/C | |
| 12 | 11Q9-40590 | BRACKET-STAY | |
| 13 | 11Q9-40690 | SPONGE-A | |
| 14 | 11Q9-40700 | SPONGE-B | |
| 15 | 11QA-42090 | TANK-SURGE | |
| 15-1 | 11N8-47150 | CAP-PRESSURE |
