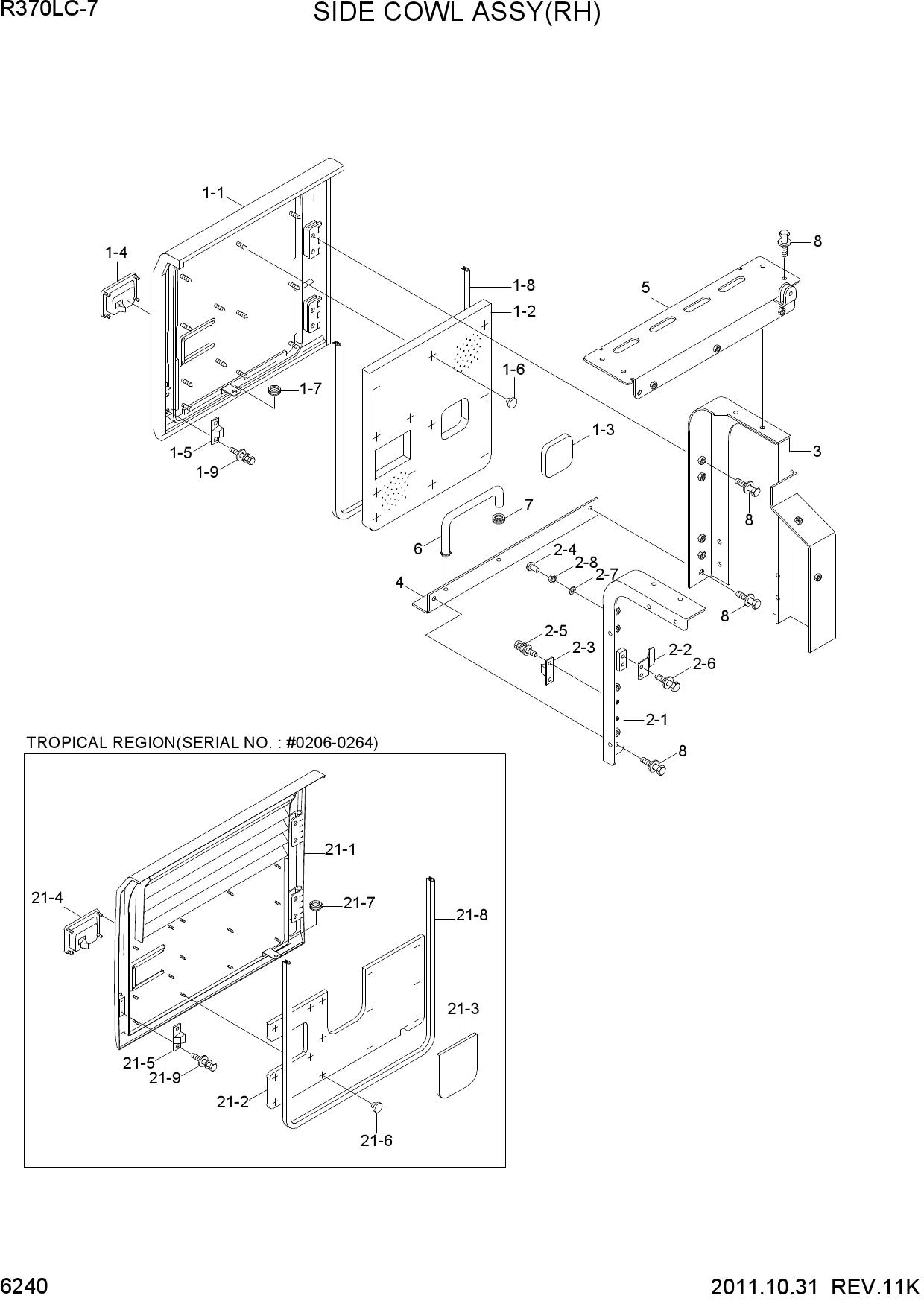

Запчасти для гусеничных экскаваторов Hyundai R370LC-7 SIDE COWL ASSY(RH)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 72NA-63001Y | SIDE COWL ASSY-LH | |
| 1 | 72NA-63100Y | SIDE COVER ASSY-RH | |
| 1-1 | 72NA-63110 | COVER WA-RH | |
| 1-2 | 72NA-63130 | SPONGE-RH | |
| 1-3 | 72NA-63140 | SPONGE-RH | |
| 1-4 | 74N8-52520 | CATCH ASSY | |
| 1-5 | 71EE-53531 | STOPPER-A | |
| 1-6 | 71EM-51580 | CAP-STUD BOLT | |
| 1-7 | S681-100400 | GROMMET | |
| 1-8 | S772-028000 | WEATHER STRIP | |
| 1-9 | S035-061526 | BOLT-W/WASHER | |
| 2 | 71NA-53500 | SUPPORT ASSY-RH,FR | |
| 2-1 | 71NA-53510 | SUPPORT WA-RH,FR | |
| 2-2 | 71N8-52492 | PLATE-LOCK | |
| 2-3 | 71EE-53540 | STOPPER-B | |
| 2-4 | 71EH-13150 | BUMPER-RUBBER | |
| 2-5 | S035-062026 | BOLT-W/WASHER | |
| 2-6 | S037-122056 | BOLT-W/WASHER | |
| 2-7 | S403-10200B | WASHER-PLAIN | |
| 2-8 | S205-10100B | NUT-HEX | |
| 3 | 72NA-63200 | SUPPORT WA-RH | |
| 4 | 72NA-63300 | BASE PLATE WA-RH | |
| 5 | 72NA-63400 | HOOD-PUMP | |
| 6 | 71N8-52950 | STAY-SIDE COVER | |
| 7 | S681-100400 | GROMMET | |
| 8 | S037-122556 | BOLT-W/WASHER | |
| * | 72NA-73000 | SIDE COWL ASSY-RH | |
| 21 | 72NA-73100 | SIDE COVER ASSY-RH | |
| 21-1 | 72NA-73110 | COVER WA-RH | |
| 21-2 | 72NA-73200 | SPONGE-RH | |
| 21-3 | 72N8-73210 | SPONGE-RH | |
| 21-4 | 74N8-52520 | CATCH ASSY | |
| 21-5 | 71EE-53531 | STOPPER-A | |
| 21-6 | 71EM-51580 | CAP-STUD BOLT | |
| 21-7 | S681-100400 | GROMMET | |
| 21-8 | S772-028000 | WEATHER STRIP | |
| 21-9 | S035-061526 | BOLT-W/WASHER |
