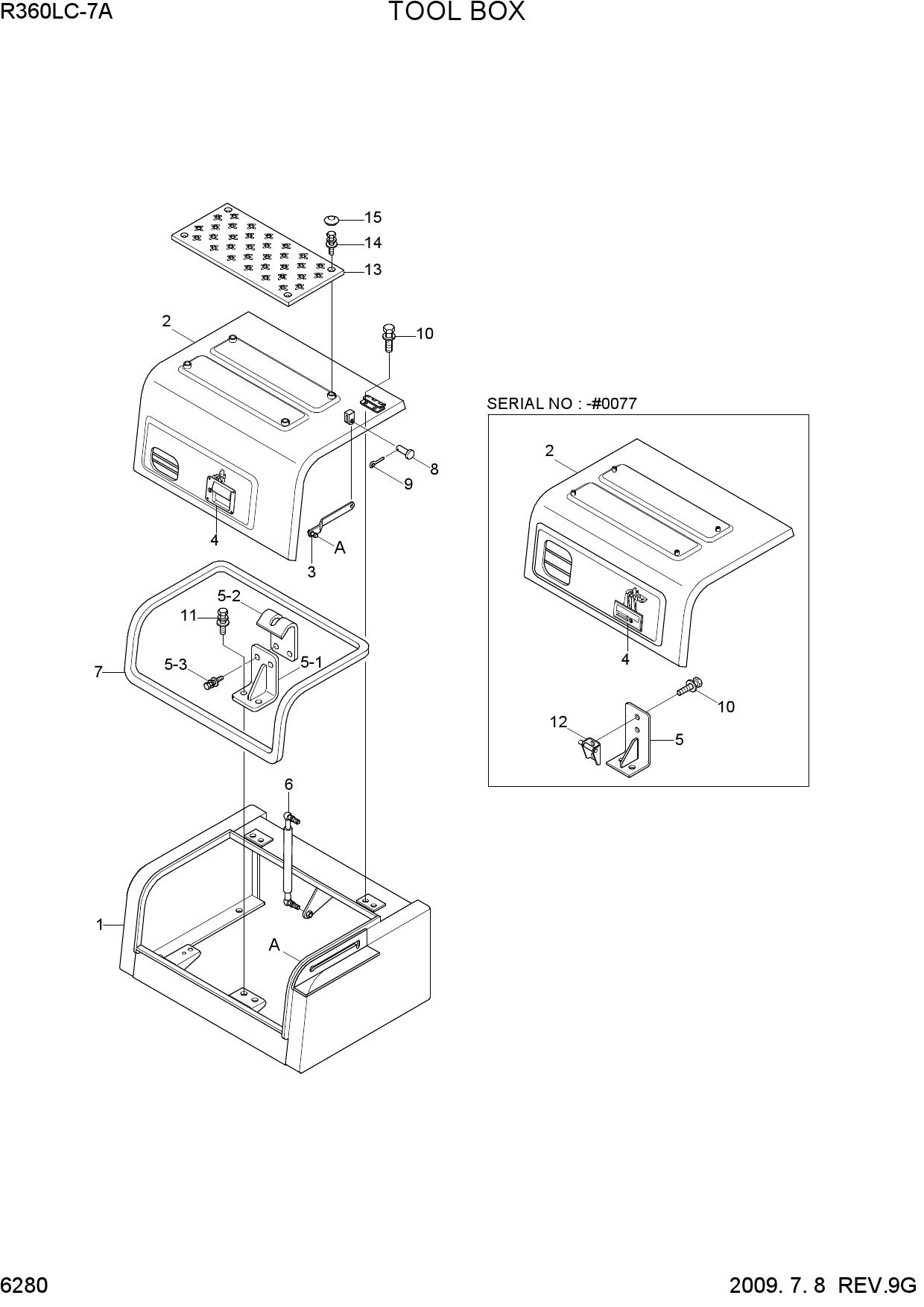

Запчасти для гусеничных экскаваторов Hyundai R360LC-7A TOOL BOX
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 71N8-41003 | TOOL BOX ASSY | |
| * | 74N8-41000 | TOOL BOX ASSY | |
| * | 74N8-41001 | TOOL BOX ASSY | |
| * | 74N8-41010 | TOOL BOX ASSY | |
| 1 | 71N8-41105 | TOOL BOX WA | |
| 2 | 71N8-41204 | COVER WA | |
| 2 | 74N8-41200 | COVER WA | |
| 2 | 74N8-41201 | COVER WA | |
| 2 | 74N8-41201 | COVER WA | |
| 2 | 74N8-42200 | COVER WA | |
| 3 | 72N8-41300 | STAY WA | |
| 4 | 71N8-41702 | CATCH ASSY | |
| 4 | 74N8-41700 | CATCH ASSY | |
| 5 | 71N8-41502 | BRACKET | |
| 5 | 74N8-41500 | BRACKET | |
| 5-1 | 74N8-41560 | BRACKET WA | |
| 5-2 | 74N8-41570 | BRACKET WA | |
| 5-3 | S035-082526 | BOLT-W/WASHER | |
| 6 | 71N8-41321 | GAS SPRING ASSY | |
| 7 | S772-030900 | WEATHER STRIP | |
| 8 | S491-080252 | PIN-CLEVIS | |
| 9 | S461-320252 | PIN-SPLIT | |
| 10 | S035-082022 | BOLT-W/WASHER | |
| 10 | S035-082022 | BOLT-W/WASHER | |
| 11 | S037-102052 | BOLT-W/WASHER | |
| 12 | 71N8-41721 | BRACKET | |
| 13 | 74N8-49100 | NONSLIP PLATE | |
| 14 | S037-122056 | BOLT-W/WASHER | |
| 15 | 71Q6-41700 | CAP |
