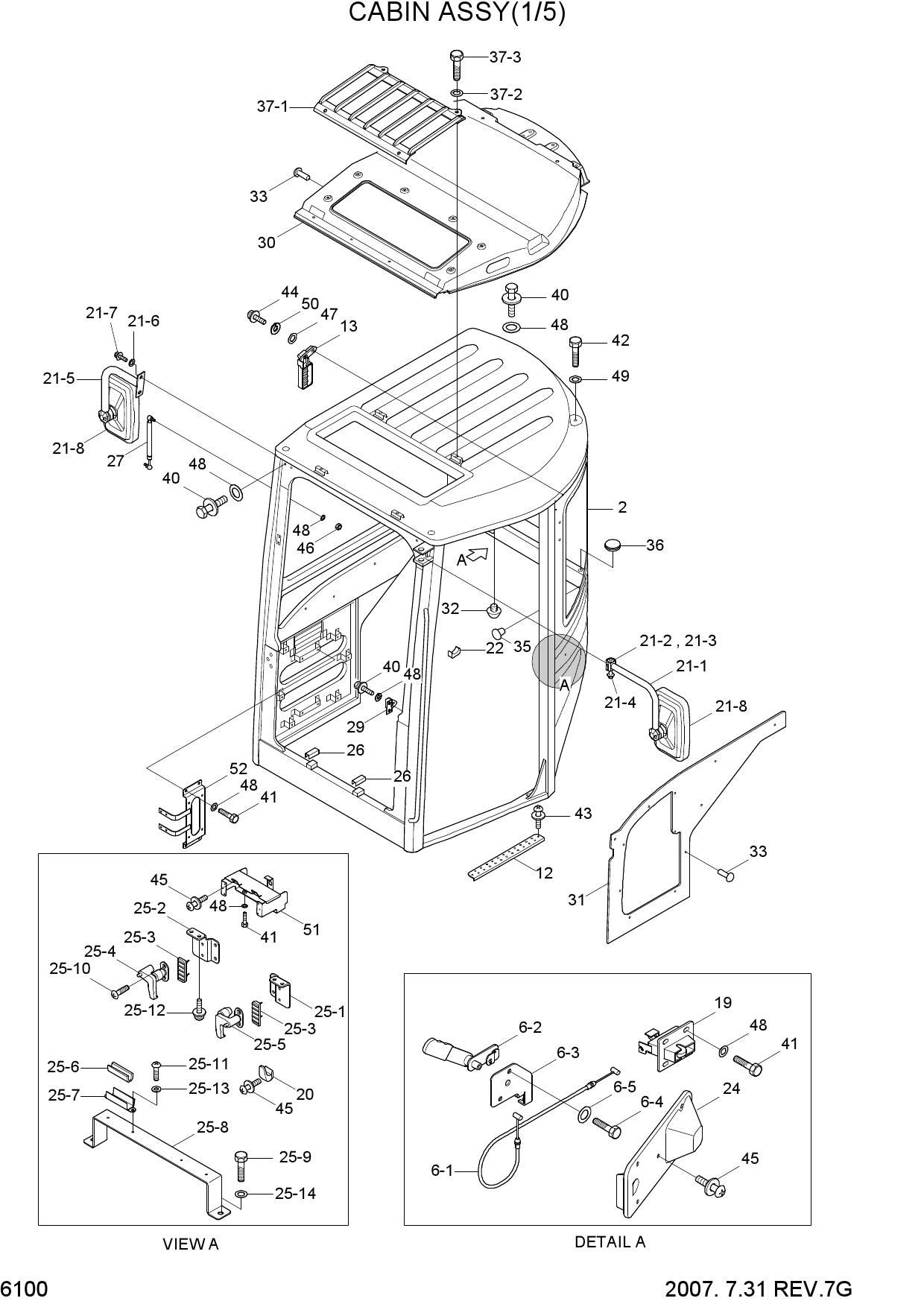

Запчасти для гусеничных экскаваторов Hyundai R35Z-7 CABIN ASSY(1/5)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 71MH-10000 | CABIN ASSY | |
| 2 | 71MH-10010 | CABIN WA | |
| 6 | 71MH-12330 | LEVER ASSY | |
| 6-1 | 71MH-12340 | CABLE-BACK LOCK | |
| 6-2 | 71MH-12350 | LOVER ASSY | |
| 6-3 | 71MH-12360 | BRACKET | |
| 6-4 | S015-080256 | BOLT-HEX | |
| 6-5 | S403-08200B | WASHER-PLAIN | |
| 12 | 71MH-12430 | STEP-DOOR | |
| 13 | 71MH-12450 | HAMMER ASSY | |
| 19 | 71MH-12530 | LOCK-BACK | |
| 20 | 71MH-12540 | HOOK-COAT | |
| 21 | 71MH-12550 | SIDE MIRROR ASSY | |
| 21-1 | 71MH-12560 | BRACKET-MIRROR/LH | |
| 21-2 | S403-10500B | WASHER-PLAIN | |
| 21-3 | S017-100706 | BOLT-HEX | |
| 21-4 | S295-100002 | CAP NUT-DOMED | |
| 21-5 | 71MH-12600 | BRACKET-MIRROR/RH | |
| 21-6 | S403-08200B | WASHER-PLAIN | |
| 21-7 | S015-080156 | BOLT-HEX | |
| 21-8 | 71MH-14400 | MIRROR ASSY | |
| 22 | 71MH-12730 | STOPPER-RUBBER | |
| 24 | 71MH-12850 | COVER-BACK LOCK | |
| N25 | 71MH-12860 | BRACKET-FRONT | |
| 25-1 | 71MH-12870 | PLATE-STOPPER,LH | |
| 25-2 | S141-050106 | SCREW-FLAT HD | |
| 25-3 | 71MH-12890 | PLATE-STOPPER,RH | |
| 25-4 | 71MH-12910 | STOPPER-RUBBER | |
| 25-5 | 71MH-12920 | LOCK-REAR GLASS,RH | |
| 25-6 | 71MH-12950 | LOCK-GLASS,LH | |
| 25-7 | 71MH-12980 | STOPPER | |
| 25-8 | 71MH-12990 | PLATE | |
| 25-9 | 71MH-13000 | BRACKET | |
| 25-10 | S015-080206 | BOLT-HEX | |
| 25-11 | S151-040106 | SCREW-TAPPING | |
| 25-12 | S151-060206 | SCREW-TAPPING | |
| 25-13 | S403-04200B | WASHER-PLAIN | |
| 25-14 | S403-08200B | WASHER-PLAIN | |
| 26 | 71MH-12980 | STOPPER | |
| 27 | 71MH-13070 | SPRING-GAS | |
| 29 | 71MH-13110 | STRIKER-DOOR INNER | |
| 30 | 71MH-13150 | HEAD LINING | |
| 31 | 71MH-13170 | TRIM-RH | |
| 32 | 71MH-13200 | STOPPER | |
| 33 | 71MH-13220 | RIVET | |
| 35 | 71MH-14410 | GROMMET | |
| 36 | 71MH-14420 | GROMMET | |
| 37 | 71MH-14430 | GUARD ASSY | |
| 37-1 | 71MH-14440 | GUARD | |
| 37-2 | S403-10500B | WASHER-PLAIN | |
| 37-3 | S017-100206 | BOLT-HEX | |
| 40 | S015-080156 | BOLT-HEX | |
| 41 | S015-080206 | BOLT-HEX | |
| 42 | S017-100206 | BOLT-HEX | |
| 43 | S141-060156 | SCREW-CROSS R/FLAT | |
| 44 | S161-040156 | SCREW-RD HD | |
| 45 | S161-060156 | SCREW-CROSS R/ROUND | |
| 46 | S205-081006 | NUT-HEX | |
| 47 | S403-04200B | WASHER-PLAIN | |
| 48 | S403-08200B | WASHER-PLAIN | |
| 49 | S403-10200B | WASHER-PLAIN | |
| 50 | S411-040006 | WASHER-SPRING | |
| 51 | 71MH-13230 | BRACKET-RADIO | |
| 52 | 71MH-15110 | BRACKET-HEATER |
