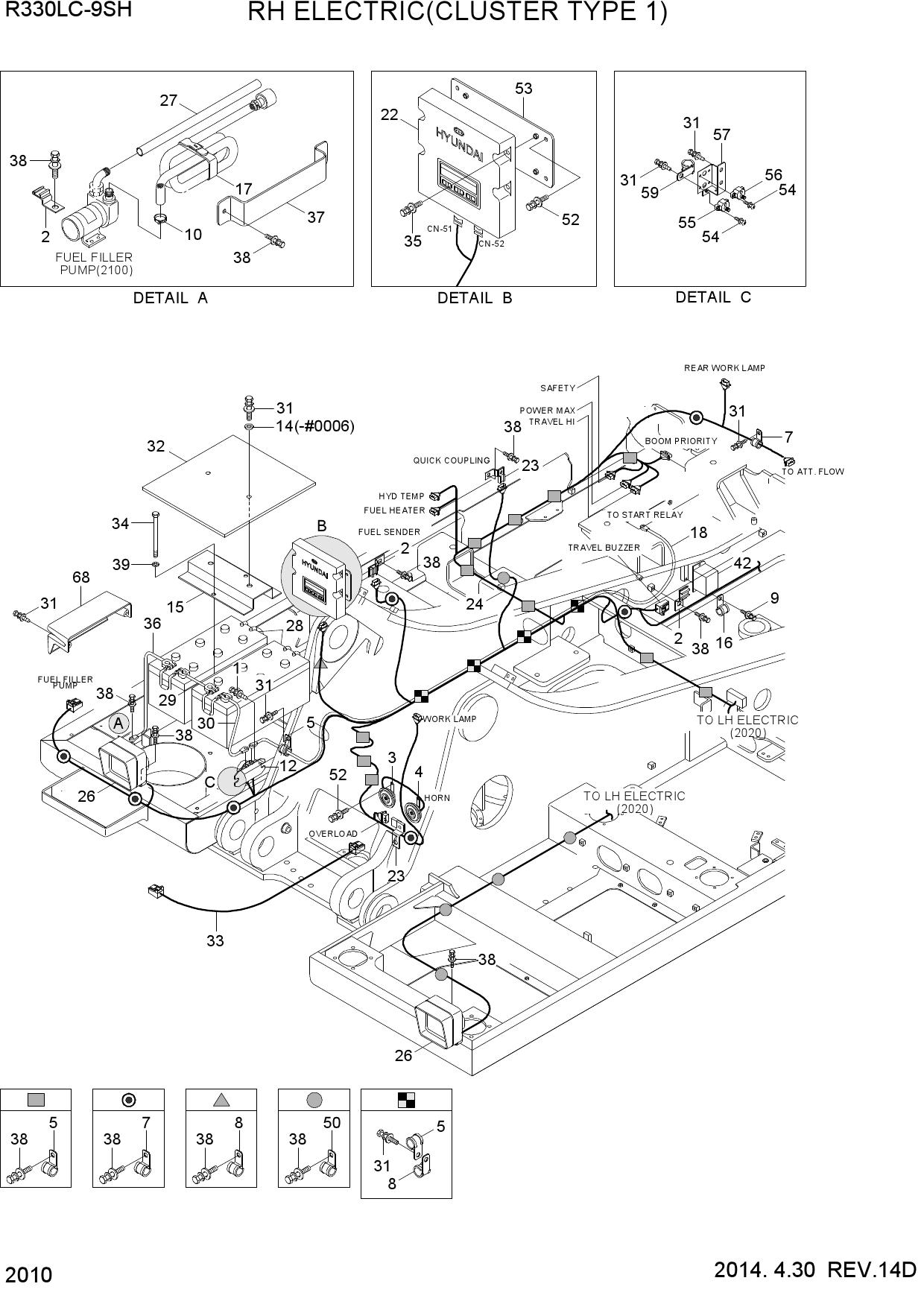

Запчасти для гусеничных экскаваторов Hyundai R330LC-9SH RH ELECTRIC(CLUSTER TYPE 1)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | S035-083026 | BOLT-W/WASHER | |
| 2 | 25D1-10640 | CLIP ASSY | |
| 3 | 21N5-10051 | HORN-LOW | |
| 4 | 21N5-10061 | HORN-HIGH | |
| 5 | 31L7-10200 | CLAMP-TUBE | |
| 5 | 31L7-10200 | CLAMP-TUBE | |
| 7 | 31L7-10190 | CLAMP-TUBE | |
| 8 | 31L7-10230 | CLAMP | |
| 9 | S035-081526 | BOLT-W/WASHER | |
| 10 | S520-032000 | CLAMP-HOSE | |
| 12 | 21E5-0003 | RELAY-BATTERY | |
| 14 | 21EN-30570 | WASHER-PLAIN | |
| 15 | 21Q8-42060 | BRACKET-BATTERY | |
| 16 | 21E9-00170 | CLIP-HARNESS | |
| 17 | E127-3158 | BAND-FUEL PUMP | |
| 18 | 21Q9-60030 | CABLE(RELAY-STARTER) | |
| 22 | 21Q9-32130 | MCU(MACHINE CNTL UNIT) | |
| 22 | 21Q9-32131 | MCU(MACHINE CONTROL UNIT) | |
| 23 | 25D1-10650 | CLIP ASSY | |
| 24 | 21Q9-40200 | HARNESS-FRAME | |
| 24 | 21Q9-40203 | HARNESS-FRAME | |
| 24 | 21Q9-40204 | HARNESS-FRAME | |
| 24-1 | 21EA-50550 | DIODE | |
| 26 | 21QB-60700 | WORK LAMP ASSY | |
| 26-1 | S866-240650 | BULB | |
| 27 | 21Q8-21620 | HOSE-OUTLET | |
| 28 | E125-1501 | BATTERY | |
| 29 | 21EA-00210 | CABLE(BATT-BATT) | |
| 29 | 21EN-10120 | CABLE(BATT-BATT) | |
| 30 | 21N8-10300 | CABLE(BATT-RELAY) | |
| 30 | 21Q6-12400 | CABLE(BATT(+)-RELAY) | |
| 30 | 21E2-60140 | CABLE(BATT-BATT RY) | |
| 31 | S037-102026 | BOLT-W/WASHER | |
| 31 | S037-102026 | BOLT-W/WASHER | |
| 31 | S037-102026 | BOLT-W/WASHER | |
| 32 | 21Q8-42041 | COVER-BATTERY | |
| 32 | 21N8-42041 | COVER-BATTERY | |
| 33 | 21Q8-11150 | HARNESS-OVERLOAD | |
| 34 | S017-102306 | BOLT-HEX | |
| 35 | S035-082526 | BOLT-W/WASHER | |
| 36 | 24L3-01120 | CABLE(BATT-EARTH) | |
| 36 | 21EM-11000 | CABLE(BATT-MASTER SW) | |
| 37 | 21QB-20080 | PLATE-CLAMP | |
| 38 | S037-101526 | BOLT-W/WASHER | |
| 39 | S403-10200B | WASHER-PLAIN | |
| 42 | 21N4-46800 | BUZZER-BACK | |
| 50 | 31L7-10350 | CLAMP | |
| 52 | S035-082026 | BOLT-W/WASHER | |
| 53 | 21Q6-14900 | PLATE-MCU | |
| 54 | S141-040206 | SCREW-FLAT HD | |
| 54 | S131-042046 | SCREW-W/WASHER | |
| 55 | 21M9-01171 | CIRCUIT-BREAKER,60A | |
| 56 | 21Q4-01161 | CIRCUIT-BREAKER,30A | |
| 57 | 21Q8-22300 | PLATE-CIRCUIT BREAKER | |
| 57 | 21Q6-14101 | PLATE | |
| 59 | 31L7-10210 | CLAMP-TUBE INS | |
| 68 | 21Q6-10751 | COVER-BATT.RELAY |
