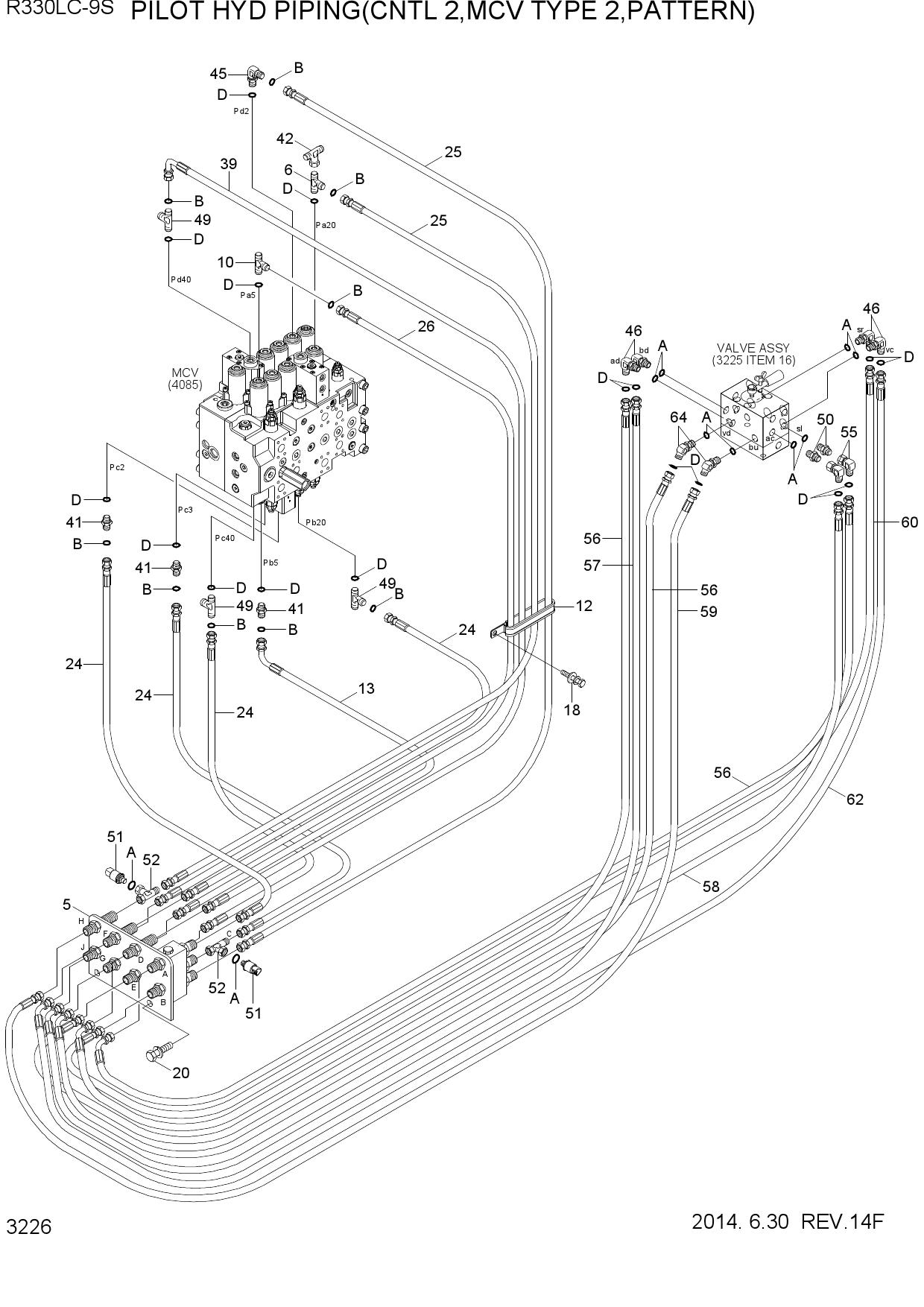

Запчасти для гусеничных экскаваторов Hyundai R330LC-9S PILOT HYD PIPING(CNTL 2, MCV T2,PATTERN)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 5 | 31N8-24010 | TERMINAL ASSY-C | |
| 6 | X820-065252 | TEE-R/TYPE,ORFS | |
| 10 | X820-065251 | TEE-R/TYPE,ORFS | |
| 12 | 31L7-10270 | CLAMP-TUBE | |
| 13 | X420-062031 | HOSE ASSY-ORFS 0X90 | |
| 18 | S037-102026 | BOLT-W/WASHER | |
| 20 | S037-103026 | BOLT-W/WASHER | |
| 24 | X400-062030 | HOSE ASSY-SYNFLEX,ORFS | |
| 25 | X400-062034 | HOSE ASSY-SYNF,ORFS | |
| 26 | X400-062036 | HOSE ASSY-SYNF,ORFS | |
| 39 | X420-062036 | HOSE ASSY-ORFS 0X90 | |
| 41 | X500-110002 | CONNECTOR-ORFS | |
| 42 | X840-525152 | TEE-R/TYPE,SWIVEL,ORFS | |
| 45 | X520-110002 | ELBOW-90,ORFS | |
| 46 | X520-110011 | ELBOW-90,ORFS | |
| 49 | X820-065152 | TEE-R/TYPE,ORFS | |
| 50 | X500-110011 | CONNECTOR-ORFS | |
| 51 | 31Q4-40830 | SENSOR-PRESSURE | |
| 52 | 31N6-66090 | TEE-TEST | |
| 55 | X850-525200 | ELBOW-90,SWIVEL,ORFS | |
| 56 | X410-062012 | HOSE ASSY-ORFS 0X45 | |
| 57 | X410-062013 | HOSE ASSY-ORFS 0X45 | |
| 58 | X410-062014 | HOSE ASSY-ORFS 0X45 | |
| 59 | X410-062015 | HOSE ASSY | |
| 60 | X410-062016 | HOSE ASSY | |
| 62 | X410-062019 | HOSE ASSY-ORFS 0X45 | |
| 64 | X530-110011 | ELBOW-45,ORFS | |
| A | S621-011001 | O-RING | |
| B | S621-012001 | O-RING | |
| D | S631-014004 | O-RING |
