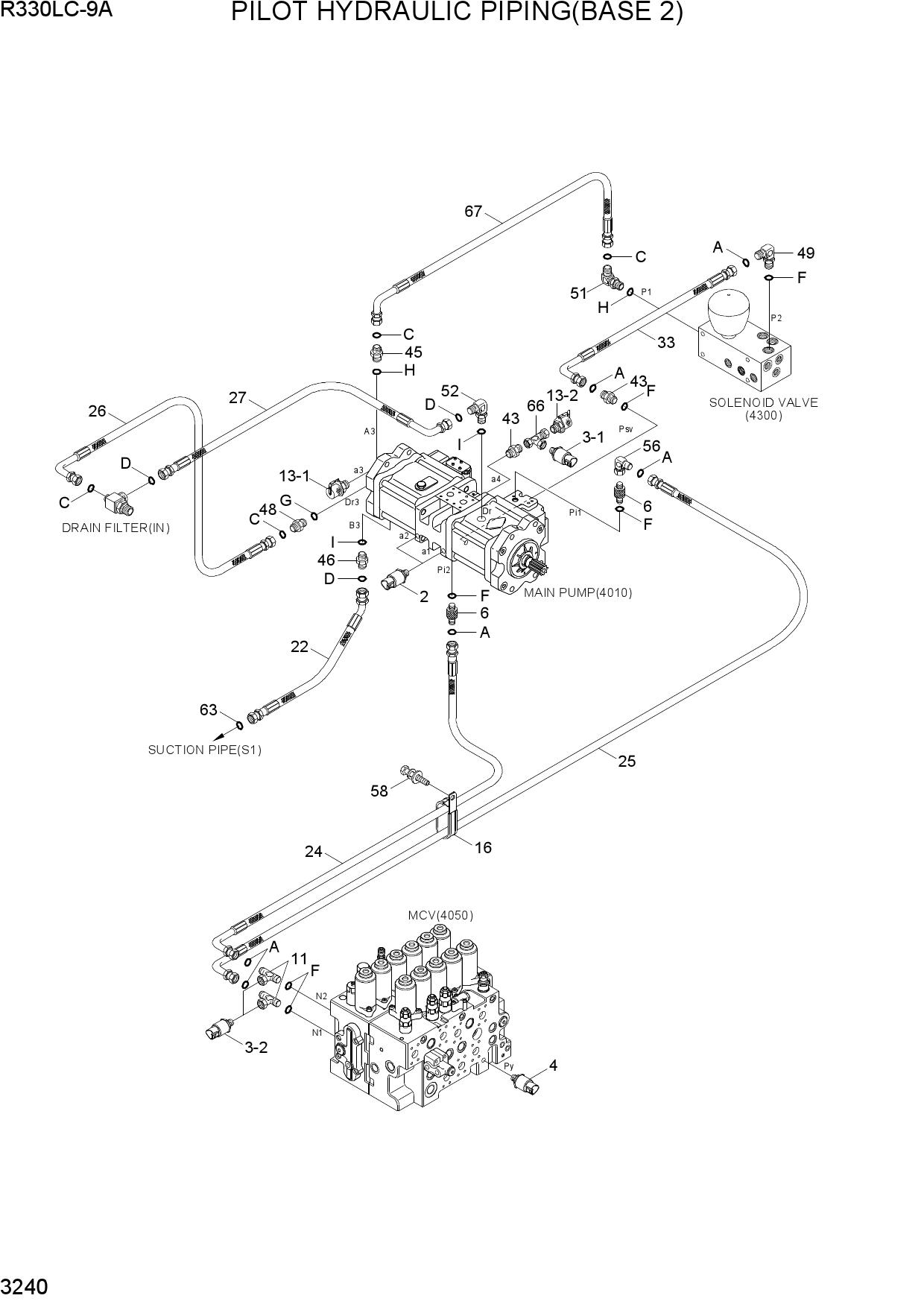

Запчасти для гусеничных экскаваторов Hyundai R330LC-9A PILOT HYDRAULIC PIPING(BASE 2)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2 | 31Q4-40800 | SENSOR-PRESSURE | |
| 3-1 | 31Q4-40820 | SENSOR-PRESSURE | |
| 3-2 | 31Q4-40820 | SENSOR-PRESSURE | |
| 4 | 31Q4-40830 | SENSOR-PRESSURE | |
| 6 | 31N6-25060 | FILTER-LAST GUARD | |
| 11 | 31NB-20130 | TEE-RUN TYPE/TEST | |
| 13-1 | 31EK-11130 | COUPLING-SCREW | |
| 13-2 | 31EK-11130 | COUPLING-SCREW | |
| 16 | 31L7-10250 | CLAMP-TUBE,INS SINGLE | |
| 22 | P920-122013 | HOSE ASSY-ORFS 0X45 | |
| 24 | P930-043056 | HOSE ASSY-ORFS 0X90 | |
| 25 | P930-043059 | HOSE ASSY-ORFS 0X90 | |
| 26 | P930-082016 | HOSE ASSY-ORFS 0X90 | |
| 27 | P930-122016 | HOSE ASSY-ORFS 0X90 | |
| 33 | X420-042008 | HOSE ASSY-SYNFLEX,ORFS | |
| 43 | X500-110001 | CONNECTOR-ORFS | |
| 45 | X500-110003 | CONNECTOR-ORFS | |
| 46 | X500-110004 | CONNECTOR-ORFS | |
| 48 | X500-110012 | CONNECTOR-ORFS | |
| 49 | X520-110001 | ELBOW-90,ORFS | |
| 51 | X520-110003 | ELBOW-90,ORFS | |
| 52 | X520-110004 | ELBOW-90,ORFS | |
| 56 | X850-515100 | ELBOW-90,SWIVEL,ORFS | |
| 58 | S037-102026 | BOLT-W/WASHER | |
| 63 | S621-018001 | O-RING | |
| 66 | 31Q4-20170 | TEE-TEST PORT | |
| 67 | P930-082014 | HOSE ASSY-ORFS 0X90 | |
| A | S621-011001 | O-RING | |
| C | S621-014001 | O-RING | |
| D | S621-018001 | O-RING | |
| F | S631-011004 | O-RING | |
| G | S631-014004 | O-RING | |
| H | S631-018004 | O-RING | |
| I | S631-024004 | O-RING |
